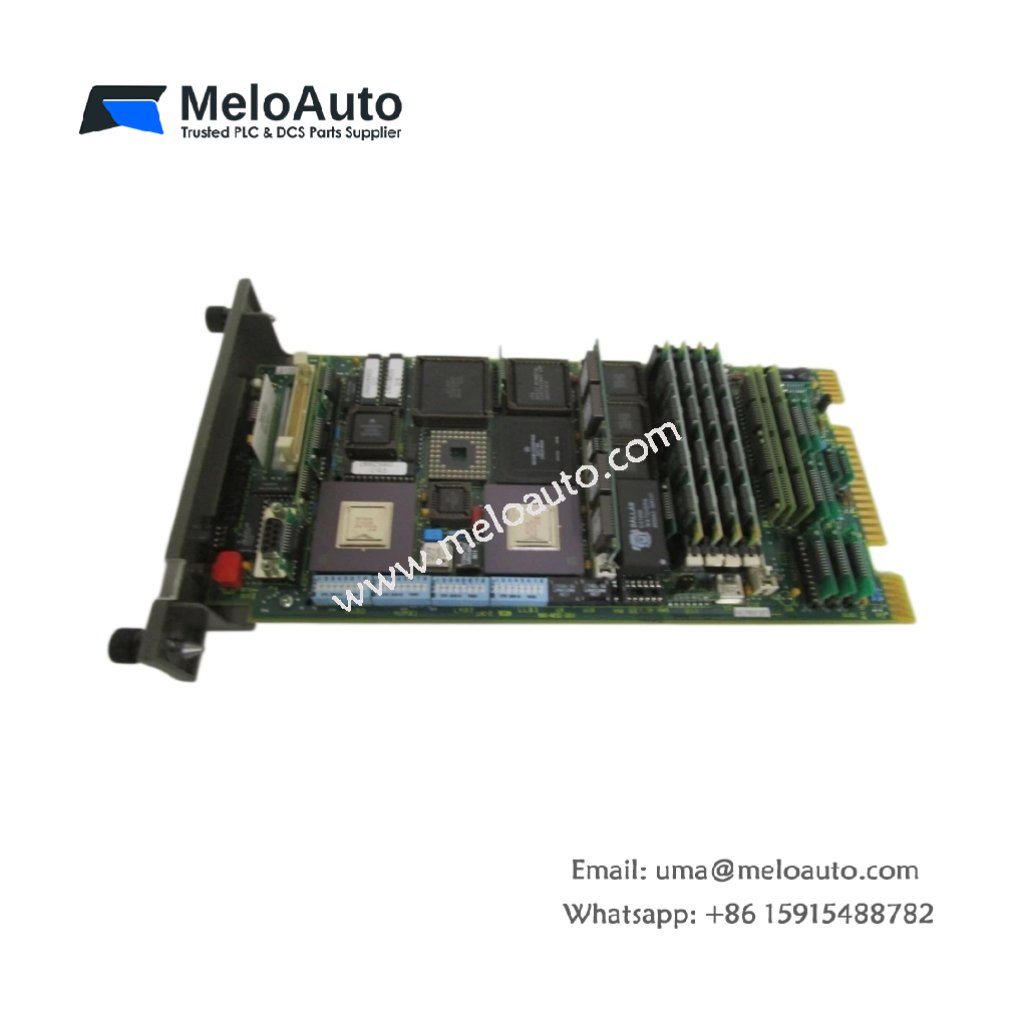

ABB Bailey INIIT03 Transfer Module

Module Overview

This transfer module moves data quickly between multiple INFI 90 controller racks. You can install ABB Bailey INIIT03 directly into VME bus slots of INFI 90 systems. The unit exchanges process data without burdening individual controller CPUs. It synchronizes multiple controllers for coordinated plant operations.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	233 mm x 160 mm x 20 mm
Weight	0.49 kg
Communication interface	Dual fiber optic (ST connectors)
Protocol	Bailey peer-to-peer token bus
Maximum cable length	3000 meters between nodes
Data rate	10 Mbps
Maximum nodes	64 controllers per network
Data exchange	8 KB shared memory per node
VMEbus interface	32-bit master/slave
Transfer latency	< 5 ms typical
Status indicators	6 LEDs (comm, token, error)
Interface to backplane	INFI 90 VME connector
Total onboard components	356 discrete parts
Energy storage type	Tantalum and ceramic capacitors
Energy storage rating	750 µF at 16V DC
Operating temperature	0°C to +55°C

Board Layout and Components

The PCB places dual fiber optic transceivers on the front panel edge. A dedicated communication processor manages all network token passing duties. Moreover, 356 discrete components include shared memory buffers and VME interface logic. Tantalum capacitors stabilize power for the high-speed data transfer circuits. Consequently, the module moves data without errors across long cable runs.

Installation Process

You can mount ABB Bailey INIIT03 into any standard INFI 90 VME rack slot. The backplane connector provides VMEbus access to controller memory. Furthermore, front panel ST ports connect fiber optic cables between controller racks. Configuration software sets node addresses and data mapping tables easily.

Performance Advantages

This module transfers data between controllers in less than 5 milliseconds. The 10 Mbps fiber optic link supports up to 64 nodes over 3000 meters. Therefore, large plants coordinate multiple INFI 90 controllers seamlessly. The 8 KB shared memory also allows each controller quick access to global process data.

Safety and Compliance

ABB Bailey INIIT03 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within six seconds. Hence, technicians face minimal electrical risk during installation or replacement.
