Module Overview

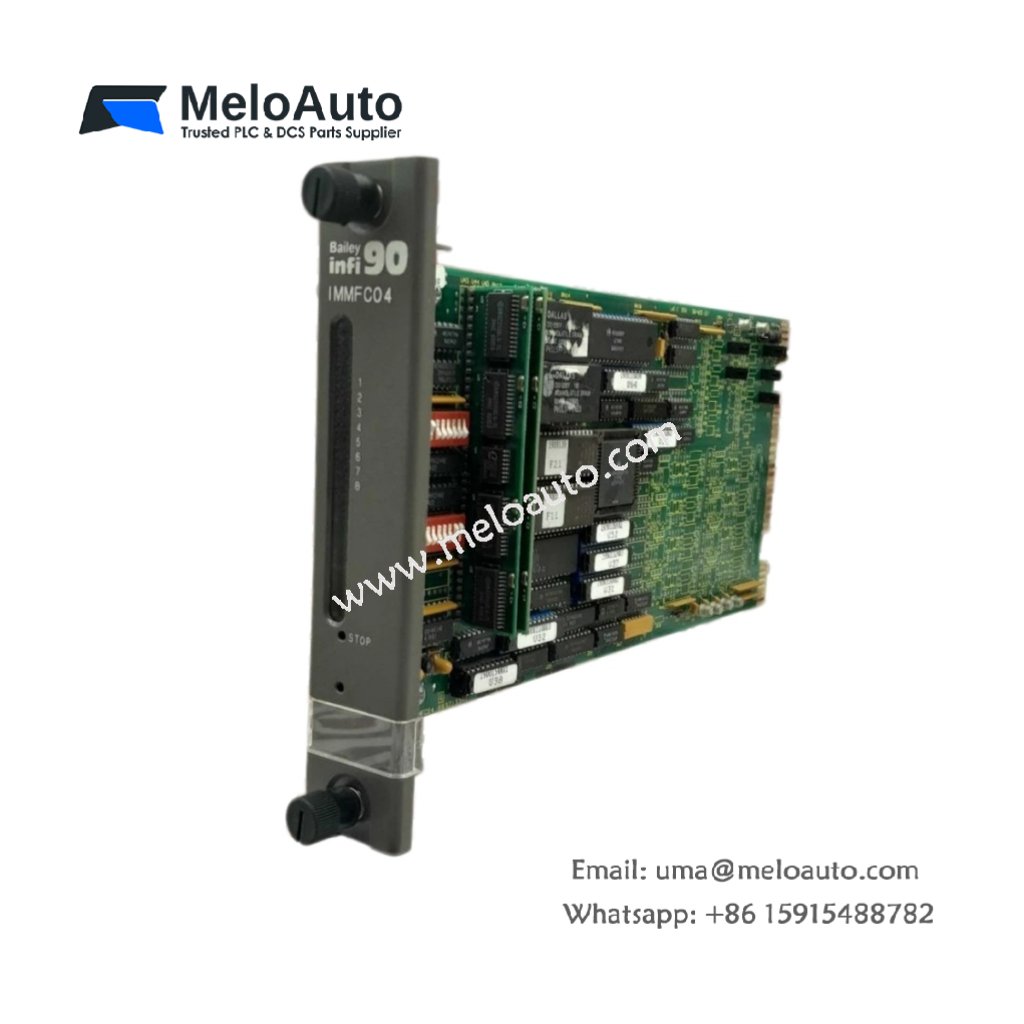

This multi function controller module executes complex regulatory and sequential control. You can install ABB Bailey IMMFC04 directly into VME bus slots of INFI 90 racks. The unit handles PID loops, logic sequences, and arithmetic calculations simultaneously. It offloads these tasks from the main system processor.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions (W x H x D) | 233 mm x 160 mm x 20 mm |
| Weight | 0.54 kg |
| Processor type | 32-bit RISC microcontroller |
| Clock speed | 50 MHz |
| Program memory | 256 KB flash (non-volatile) |
| Data memory | 128 KB SRAM (battery-backed) |
| Control loops | 64 PID loops maximum |
| Digital logic | 1024 ladder logic rungs |
| Mathematical functions | Floating point (32-bit) |
| Execution rate | 10 ms to 100 ms (selectable) |
| VMEbus interface | 32-bit master/slave |
| Battery | 3.6V lithium (replaceable) |
| Battery life | 5 years typical |
| Status indicators | 4 LEDs (power, run, fault, comm) |
| Total onboard components | 412 discrete parts |
| Energy storage type | Lithium battery + tantalum capacitors |
| Energy storage rating | 890 µF at 16V DC |
| Operating temperature | 0°C to +55°C |
Board Layout and Components
The PCB places the 32-bit CPU at the center for optimal performance. Large tantalum capacitors stabilize power rails during heavy computation. Moreover, 412 discrete components include memory chips and floating-point coprocessor circuits. A lithium battery retains data memory for five years typically. Consequently, control parameters persist through extended power outages.
Installation Process
You can mount ABB Bailey IMMFC04 into any standard INFI 90 VME rack slot. The backplane connector supplies power and provides access to plant I/O data. Furthermore, configuration software downloads control strategies via serial port. LED indicators show module status and communication activity clearly.
Performance Advantages
This module executes 64 PID loops at 100 ms rates simultaneously. The 50 MHz processor handles complex floating-point math without slowing down. Therefore, advanced control applications run without impacting the main CPU. The 256 KB flash memory also stores large control strategies safely.
Safety and Compliance
ABB Bailey IMMFC04 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within eight seconds. Hence, technicians face minimal electrical risk during battery replacement or servicing.
