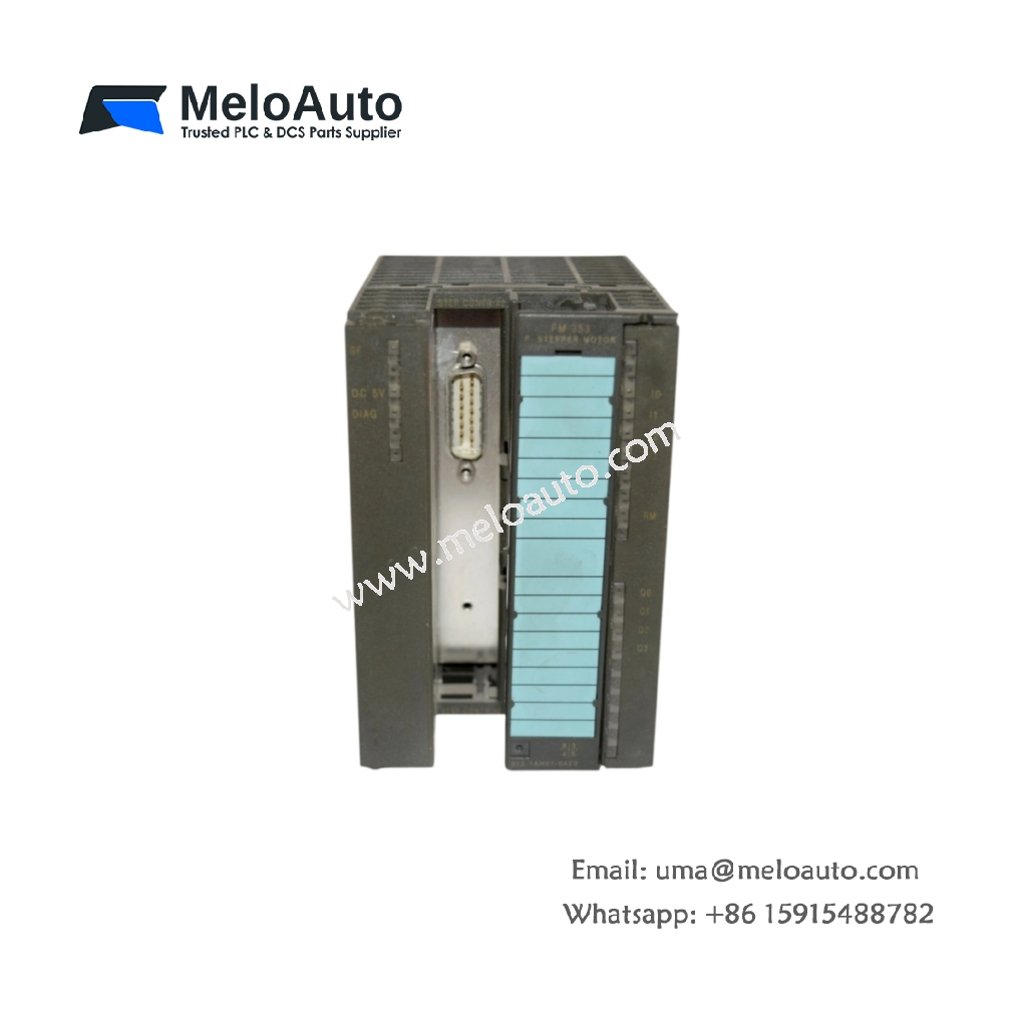

Siemens 6ES7353-1AH01-8BG0 Function Module for SIMATIC S7-300

This function module provides precise positioning and fast counting capabilities for automation systems. It handles incremental encoder signals and generates output pulses for motor control. The Siemens 6ES7353-1AH01-8BG0 supports single-axis positioning tasks in SIMATIC S7-300 applications. This versatile module reduces the load on the central CPU significantly.

Physical Dimensions and Installation Specifications

This function module measures 40 millimeters in width, 125 millimeters in depth, and 120 millimeters in height. The unit weighs approximately 0.35 kilograms for secure rack installation. It mounts directly into the SIMATIC S7-300 rail using a backplane connector. The front panel includes LED indicators for channel status and fault conditions.

Input Specifications and Encoder Compatibility

The Siemens 6ES7353-1AH01-8BG0 accepts signals from incremental encoders with 5-volt differential outputs. It supports encoder frequencies up to 500 kilohertz for precise position tracking. The module provides three separate counter channels for versatile application needs. Each channel handles up/down counting and quadrature decoding modes.

Positioning Control and Output Capabilities

This function module generates pulse train outputs for stepper motor or servo control. It supports absolute and relative positioning modes for motion tasks. The module provides 24-volt output signals for direct connection to drives. Output frequency reaches 250 kilohertz for smooth motion profiles.

Communication Interfaces and Integration

The Siemens 6ES7353-1AH01-8BG0 communicates with the CPU via the S7-300 backplane bus. It supports direct data exchange for real-time position value updates. The module configures through STEP 7 software for parameter assignment.

Technical Data Summary

System Integration and Application Scope

This function module integrates seamlessly with SIMATIC S7-300 programmable controllers. It handles positioning, motion control, and high-speed counting tasks. Consequently, the Siemens 6ES7353-1AH01-8BG0 delivers reliable performance for precision automation applications.
