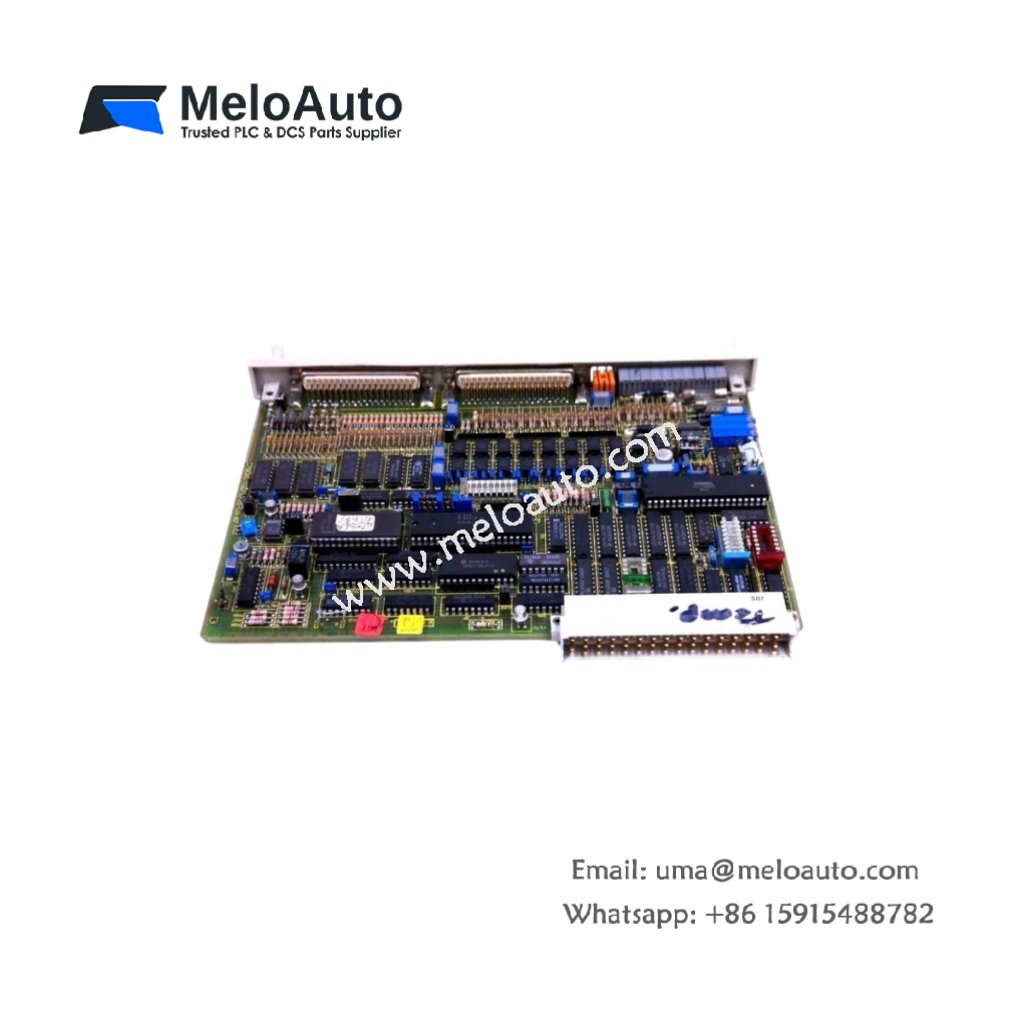

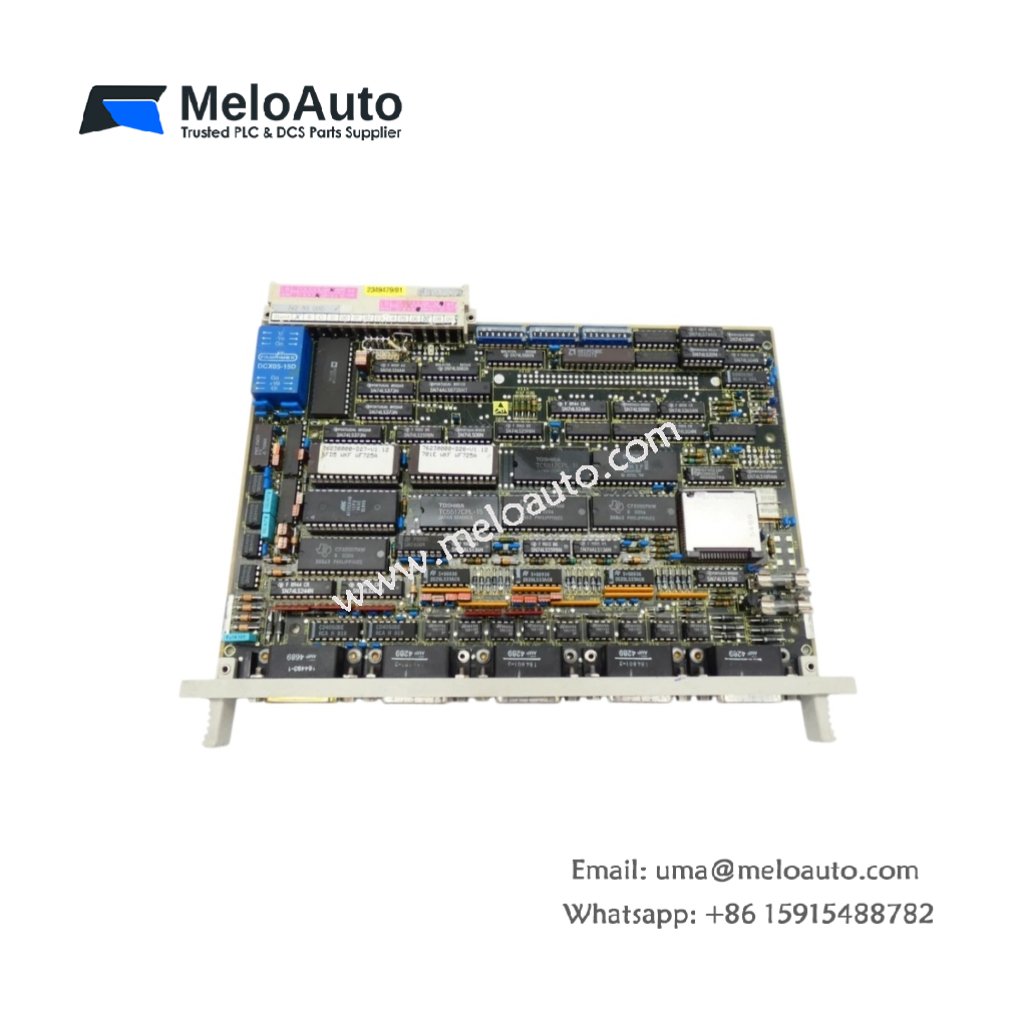

Siemens 6FM1725-3AA00 Positioning Module

Technical Overview

The Siemens 6FM1725-3AA00 is a high-performance positioning module for the SIMATIC S5 programmable controller series. This unit controls single-axis positioning tasks with exceptional precision and speed. It generates step and direction signals for driving stepper motors or DC servo drives. The module processes feedback from incremental encoders for closed-loop position control. It includes programmable acceleration and deceleration ramps for smooth motion profiles. The module supports various reference point approaches for flexible homing procedures.

This positioning module integrates a 32-bit counter that handles extensive travel distances with high resolution. The onboard processor manages all motion calculations independently, thereby offloading the main CPU for other control tasks. The module provides multiple operating modes, including absolute and relative positioning, referencing, and jogging. It also includes software limit switches for preventing over-travel and protecting mechanical components. The front panel features LED indicators that display power, axis activity, and error status for quick diagnostics.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6FM1725-3AA00
Product Type	Positioning Module
System Compatibility	SIMATIC S5 Series
Number of Axes	1
Motor Types	Stepper motors, DC servo drives
Output Signals	Step and Direction
Encoder Input	Incremental encoder (5V differential)
Maximum Frequency	100 kHz
Positioning Range	32-bit ( -2,147,483,648 to +2,147,483,647 )
Acceleration/Deceleration	Programmable ramps
Reference Point Approaches	Multiple (hardware, software, distance-coded)
Operating Modes	Absolute, relative, referencing, jogging
Software Limit Switches	Yes (programmable)
Power Consumption	5 W (typical)
Dimensions	233 x 37 x 268 mm
Weight	0.42 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% RH (non-condensing)
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

High-Speed Positioning – The module supports pulse frequencies up to 100 kHz, enabling rapid and precise axis movements.

Programmable Motion Profiles – Users can configure acceleration and deceleration ramps to achieve smooth starts and stops.

Flexible Reference Point Approaches – The module supports multiple homing methods, including hardware and software reference points.

Encoder Feedback Processing – The unit reads incremental encoder signals for closed-loop position verification.

Large Positioning Range – The 32-bit counter supports extensive travel distances for various applications.

Independent Motion Processing – The onboard processor handles motion calculations, offloading the main CPU.

Software Limit Protection – Programmable limit switches prevent over-travel and protect mechanical components.

Diagnostic LEDs – Status indicators provide immediate feedback on power, communication, and axis activity.

Applications

The Siemens 6FM1725-3AA00 excels in single-axis positioning tasks such as conveyor indexing, tool positioning, pick-and-place operations, and assembly automation. It is ideal for packaging, material handling, and machine tool applications requiring precise motion control.
