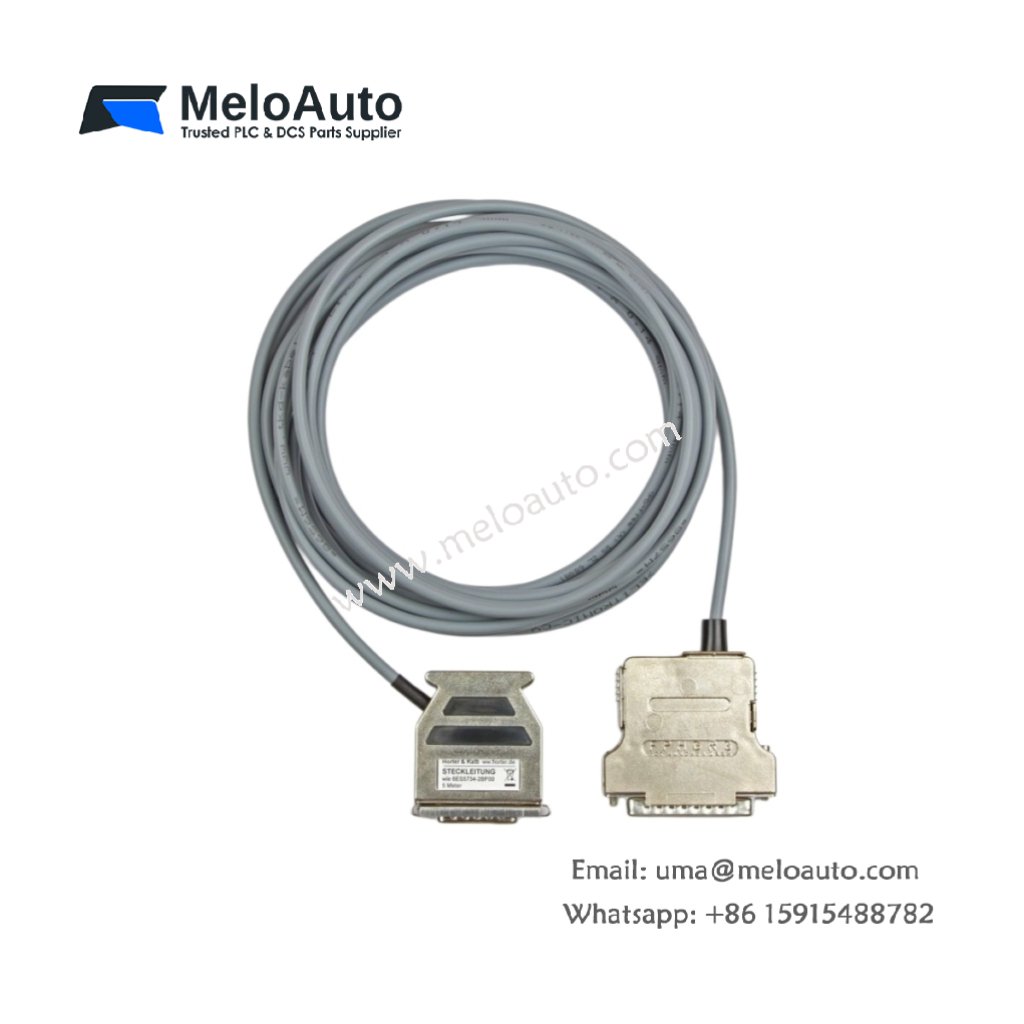

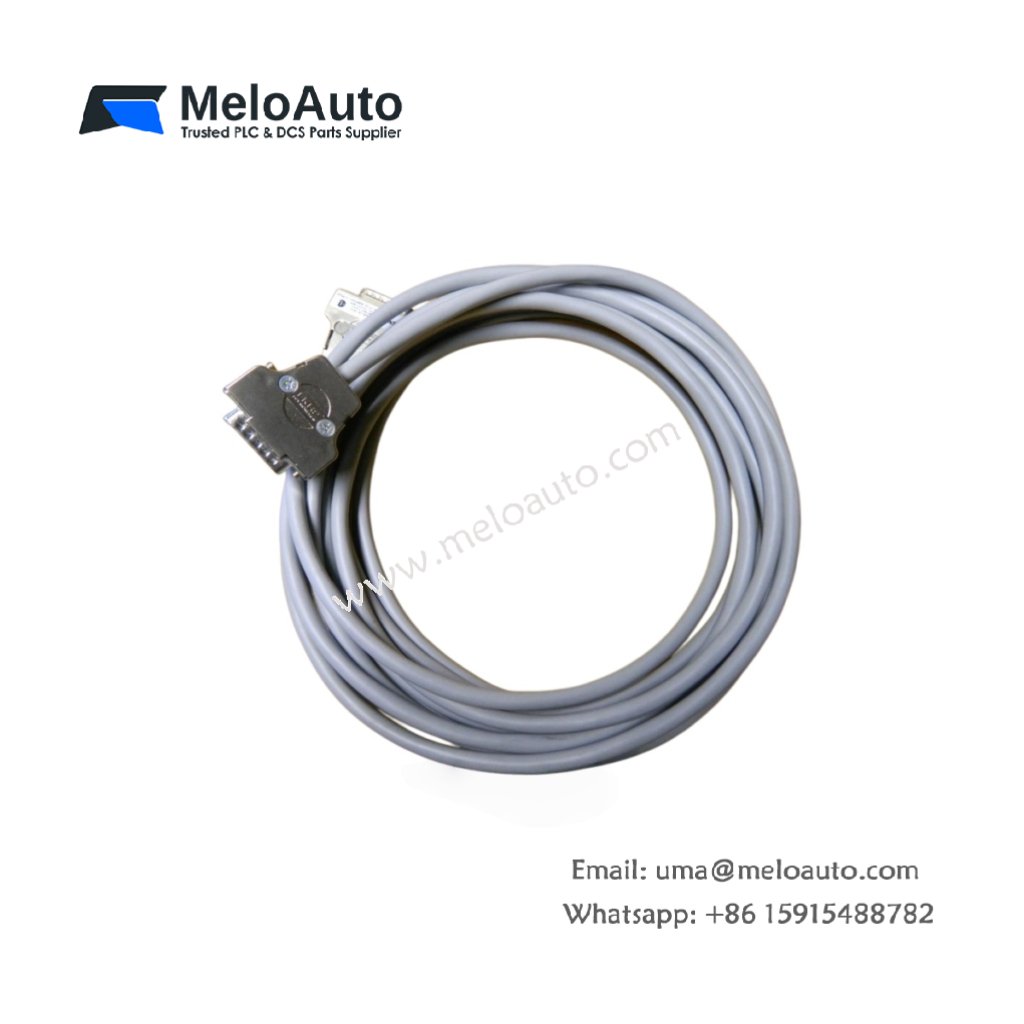

Siemens 6ES5712-8BF00 Plug-in Cable

Technical Overview

The Siemens 6ES5712-8BF00 is a plug-in connection cable for the SIMATIC S5 programmable controller series. This cable provides reliable signal transmission between the PLC and peripheral devices. It connects programming units, operator panels, and other automation components. The cable ensures secure data exchange in industrial environments. Its robust construction withstands mechanical stress and electrical interference.

The Siemens 6ES5712-8BF00 features a shielded design that effectively protects against electromagnetic interference. This shielding guarantees stable communication even in electrically noisy factory floors. The cable comes with pre-assembled connectors at both ends, eliminating the need for on-site termination. Its flexible insulation material allows easy routing within control cabinets. The cable’s durable outer sheath resists oil, grease, and abrasion, ensuring long service life in harsh conditions.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5712-8BF00
Product Type	Plug-in Connection Cable
System Compatibility	SIMATIC S5 Series
Application	PLC to peripheral devices
Cable Type	Shielded
Length	2.5 meters (approx.)
Connector Type	Plug-in (both ends, pre-assembled)
Sheath Material	PVC (oil and grease resistant)
Conductor Material	Stranded copper
Shielding	Braided copper shield
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +70°C
Bending Radius	15 x cable diameter (minimum)
Flame Retardant	Yes (self-extinguishing)
Country of Origin	Germany

Key Features

Reliable Signal Transmission – The braided copper shield protects against electromagnetic interference, ensuring stable communication.

Plug-and-Play Design – Pre-assembled connectors enable quick installation without special tools or skills.

Durable Construction – The oil- and grease-resistant PVC sheath withstands harsh industrial environments.

Flexible Routing – The cable’s flexible design simplifies installation in tight spaces.

S5 Compatibility – This cable works seamlessly with all SIMATIC S5 controllers and peripherals.

Long Service Life – The robust materials ensure reliable performance over extended periods.

Applications

The Siemens 6ES5712-8BF00 suits connections between SIMATIC S5 PLCs and programming devices, operator panels, or other automation peripherals. It excels in factory automation, process control, and industrial networking applications.
