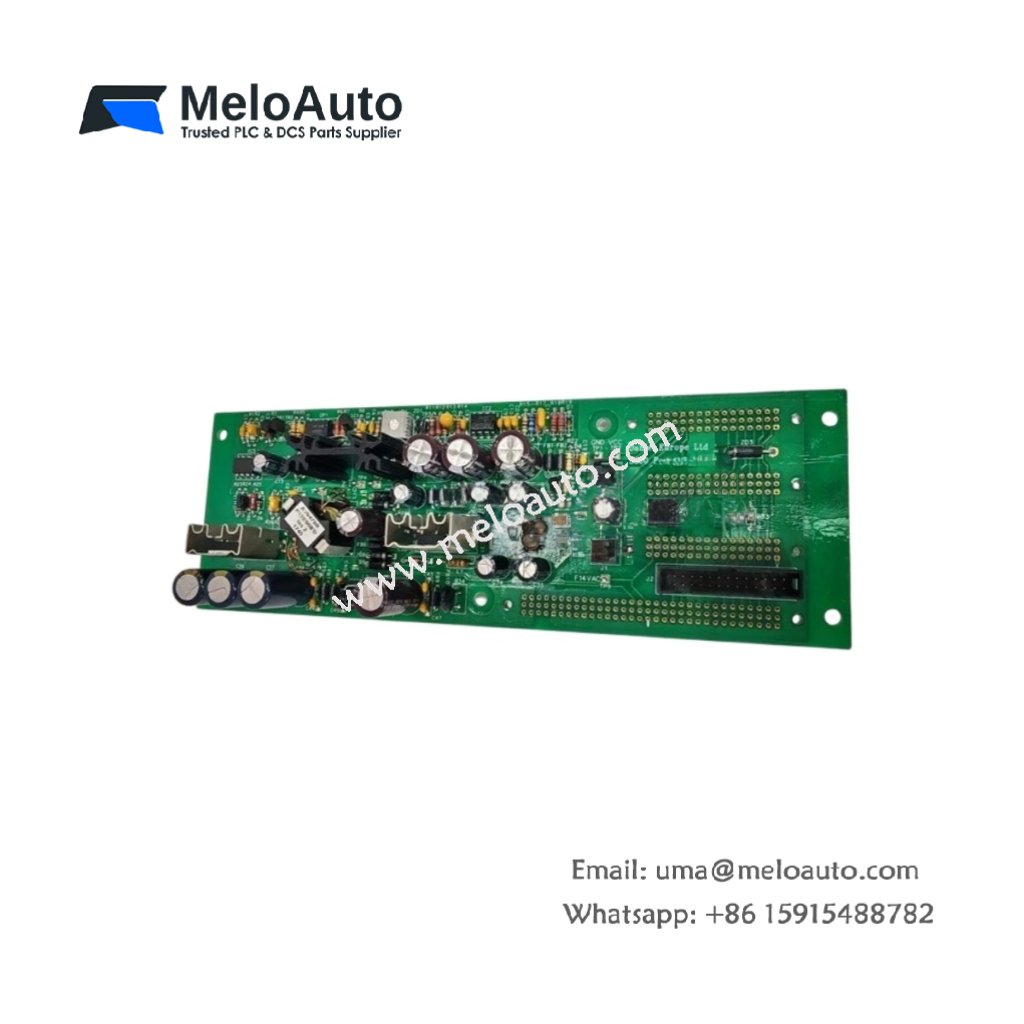

Emerson P155.R2 Power Supply Module

This power supply module delivers stable DC voltage to industrial control systems. It converts incoming AC mains into multiple regulated outputs. You will install this unit in standard equipment racks.

Key Technical Specifications

The P155.R2 accepts a universal input range of 85 to 264V AC. Its switching topology achieves 85% typical efficiency under full load. The module also features built-in overload and short-circuit protection.

Parameter	Technical Data
Product Type	Switching Power Supply Module
AC Input Range	85-264V AC, 47-63 Hz
DC Output 1	24V DC @ 6.5A (156W)
DC Output 2	5V DC @ 2A (10W)
Total Output Power	166 Watts maximum
Efficiency	85% typical at full load
Dimensions (W x H x D)	11.5 cm x 12.0 cm x 9.0 cm
Total Weight	0.85 kg (1.87 lbs)
Input Connector	3-pin screw terminal block
Output Connectors	2 x 4-pin header connectors
Onboard Components	68 capacitors, 42 resistors
Energy Storage	680 µF primary bulk capacitance
Hold-up Time	20 ms at full rated load
Operating Temperature	-10°C to 60°C

Hardware Architecture and Energy Storage

The P155.R2 uses 680 µF of primary bulk capacitance for energy storage. This capacitance provides 20 ms of hold-up time during input interruptions. Sixty-eight secondary capacitors filter ripple on both output channels. Forty-two resistors set precise voltage regulation points throughout the circuit.

Interface and Connectivity

One 3-pin screw terminal block accepts the AC input wiring. Two 4-pin headers distribute 24V and 5V outputs to connected loads. Each header includes separate ground and sense lines for regulation accuracy. The front panel features a green LED for power-good indication.

Practical Installation Notes

Mount this power module horizontally with adequate ventilation spacing. The P155.R2 requires at least 25 mm clearance on all sides. Always disconnect input power before removing the module from its chassis. Verify the load does not exceed 166 watts for continuous operation.
