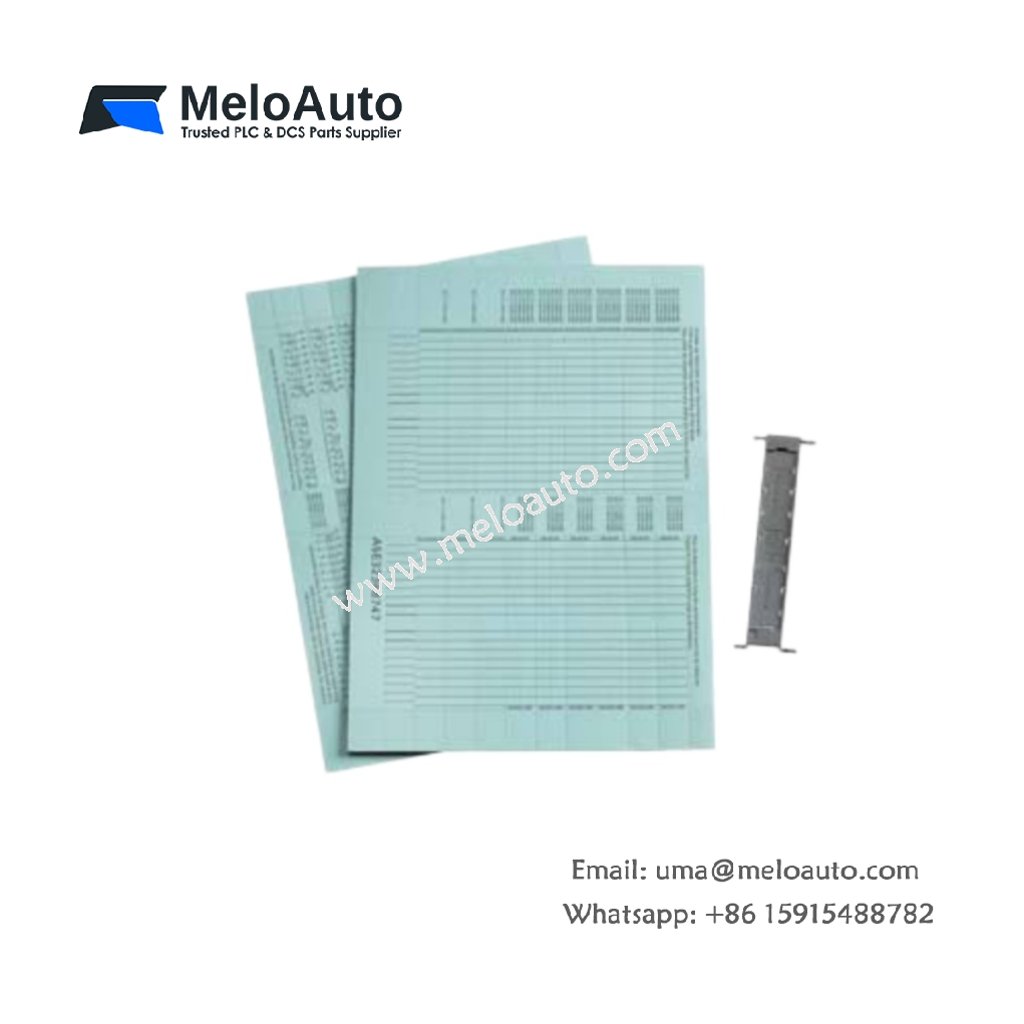

Siemens 6ES7193-4BB00-0AA0 Labeling Sheets

The Siemens 6ES7193-4BB00-0AA0 provides clear identification for ET 200S terminal modules. These labeling sheets allow you to mark each I/O channel with descriptive text. You will achieve organized and error-free wiring documentation with this accessory. This product simplifies maintenance and troubleshooting procedures significantly. The labeling sheets fit directly into the standard terminal housings.

Physical Dimensions and Sheet Format

This labeling sheet features a precision-cut design for perfect fitment. Each sheet measures 88 mm in height and 15 mm in width. The sheet thickness reaches 0.2 mm for durability. It weighs approximately 0.005 kilograms per complete set. The operating temperature ranges from -25°C to +70°C. This range supports storage and application in various plant environments.

Packaging Contents and Quantity

The Siemens 6ES7193-4BB00-0AA0 includes 10 individual labeling sheets per package. Each sheet accommodates up to 20 terminal positions for labeling. The package covers a total of 200 terminal labels. This quantity suits typical ET 200S station configurations. You can order multiple packages for larger systems.

Material Composition and Print Compatibility

These sheets use a high-quality polyester material for long-term legibility. The material resists oils, solvents, and cleaning agents effectively. The Siemens 6ES7193-4BB00-0AA0 works with standard thermal transfer printers. It also accepts handwriting with permanent markers. The surface provides a matte finish for clear readability under lighting.

Application and Installation Process

You simply insert the labeled sheet into the terminal module slot. The sheet locks securely into position without adhesives. The Siemens 6ES7193-4BB00-0AA0 allows quick replacement when I/O changes occur. This design ensures easy field modifications and updates. You can remove and reinsert sheets without damage.

Technical Specifications Summary

Organizational Benefits and System Efficiency

The Siemens 6ES7193-4BB00-0AA0 enhances overall system documentation quality. It reduces the risk of wiring errors during maintenance. The sheets support clear identification of each I/O point. You will improve troubleshooting speed with proper labeling. This accessory contributes to safer and more efficient plant operations.
