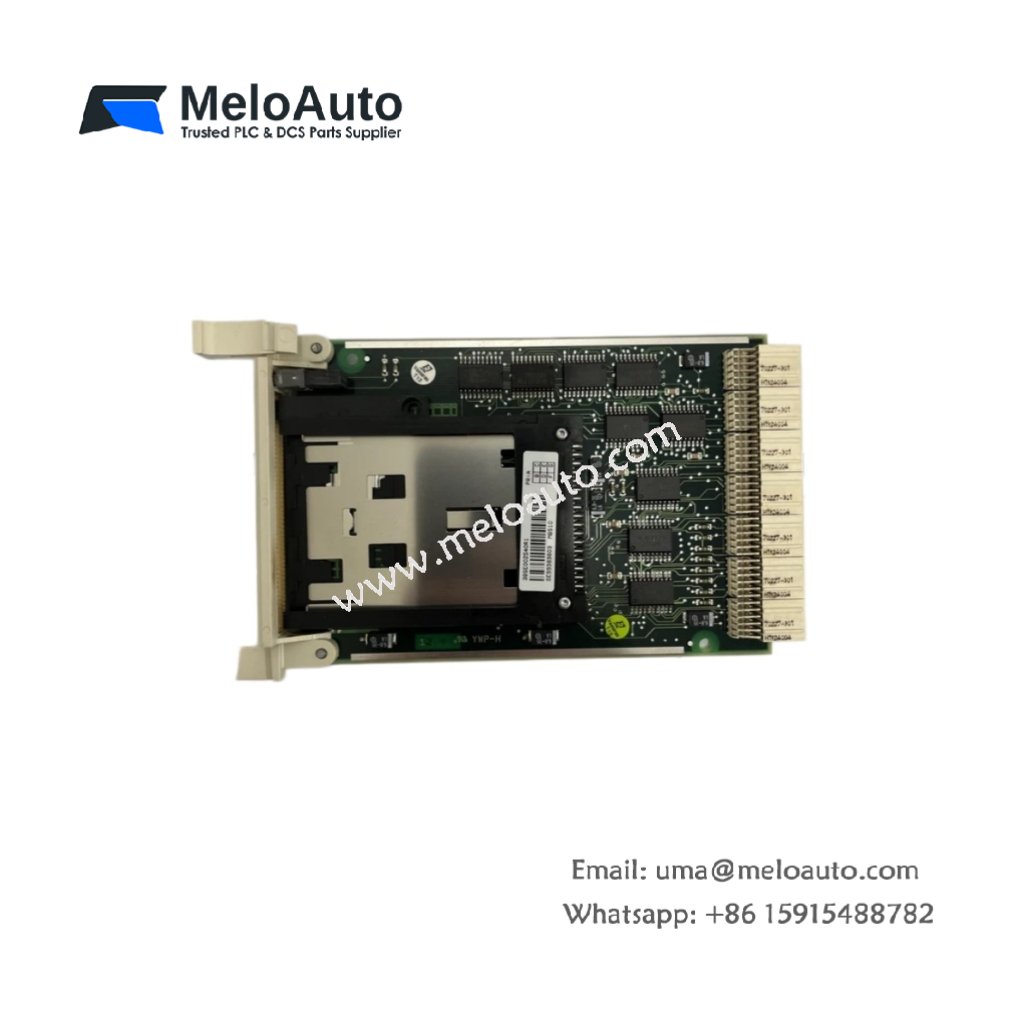

ABB 3BSE016239R1 Processor Module for Advant Controller 70

The 3BSE016239R1 serves as the main processor for ABB Advant Controller 70 systems. This module executes control logic and manages all I/O communication tasks. You can rely on it for critical process automation applications.

Key Technical Parameters

The table below lists all essential technical specifications for this processor module.

Physical Characteristics and Installation

This processor module weighs approximately 0.80 kg for secure rack mounting. Its dimensions measure 235 mm x 30 mm x 185 mm for standard Advant racks. First, slide the 3BSE016239R1 into a dedicated processor slot. Then, engage the ejector levers to seat the module firmly. Finally, connect your communication cables to the rear ports. LED indicators on the front show processor status, bus activity, and network link.

Processing Power and Memory Architecture

The 3BSE016239R1 integrates a Motorola 68040 processor running at 33 MHz. Program memory provides 4 MB of flash for non-volatile firmware and user logic. Data memory includes 2 MB of RAM for real-time variables. A lithium battery backs up 256 KB of retentive memory. Consequently, critical process parameters survive power outages for up to five years.

Communication Capabilities and System Integration

This processor module features five communication ports for extensive networking. Two RS-232 ports connect to programming devices or local HMIs. Two RS-485 ports link the module to remote I/O networks. One Ethernet port provides plant-wide connectivity. The 3BSE016239R1 supports peer-to-peer communication with other Advant controllers. You can build redundant or distributed control architectures easily.
