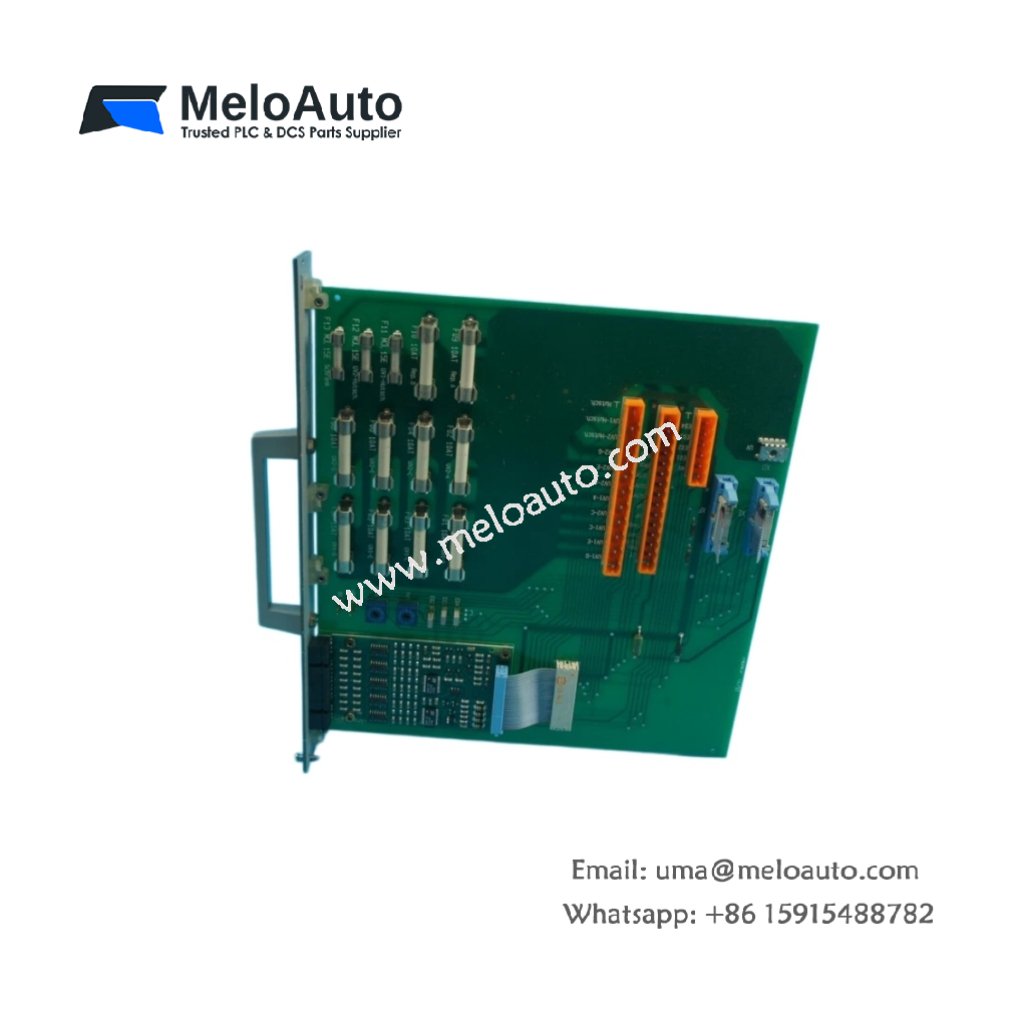

The 0764361A provides overcurrent protection for ABB control system power lines. This fusing module prevents damage to sensitive electronics during short circuits or overloads. You can use it for panel builds or system retrofits.
Key Technical Parameters
The table below lists all essential technical specifications for this fusing module.
| Specification | Details |
|---|---|
| Part Number | 0764361A |
| Product Type | Fusing Module |
| Compatibility | ABB control panels and systems |
| Number of Fuse Holders | 4 independent positions |
| Fuse Type | 5mm x 20mm cartridge (user-supplied) |
| Maximum Fuse Rating | 10 A per holder |
| Rated Voltage | 250V AC / 125V DC |
| Breaking Capacity | 1,500 A (with appropriate fuse) |
| Dimensions (W x H x D) | 90 mm x 55 mm x 40 mm |
| Weight | Approx. 0.12 kg |
| Terminal Type | Screw clamp (finger-safe) |
| Wire Gauge Range | 0.2 mm² to 2.5 mm² (AWG 24-14) |
| Housing Material | Polyamide (PA66) |
| Flammability Rating | UL94 V-0 |
| Operating Temperature | -25°C to 70°C |
Physical Characteristics and Installation
This fusing module weighs approximately 0.12 kg for lightweight DIN rail mounting. Its dimensions measure 90 mm x 55 mm x 40 mm for compact cabinet placement. First, clip the 0764361A onto a standard 35 mm DIN rail. Then, insert the appropriate cartridge fuses into each holder. Finally, connect your power wires to the screw clamp terminals. The transparent cover allows visual fuse status inspection without opening the module.
Fuse Specifications and Electrical Ratings
The 0764361A features 4 independent fuse holder positions for multi-circuit protection. Each position accepts a 5mm x 20mm cartridge fuse rated up to 10 A. The module carries a maximum voltage of 250V AC or 125V DC. The breaking capacity reaches 1,500 A when using properly rated fuses. Consequently, this module protects downstream circuits effectively.
Material Properties and Safety Features
The housing uses polyamide PA66 for excellent mechanical strength and insulation. A UL94 V-0 flammability rating ensures fire safety in control panels. Finger-safe screw terminals prevent accidental contact with live parts. The 0764361A operates reliably between -25°C and 70°C. Each fuse holder includes a visual indicator for blown fuse detection. Use this module for power distribution and branch circuit protection.
