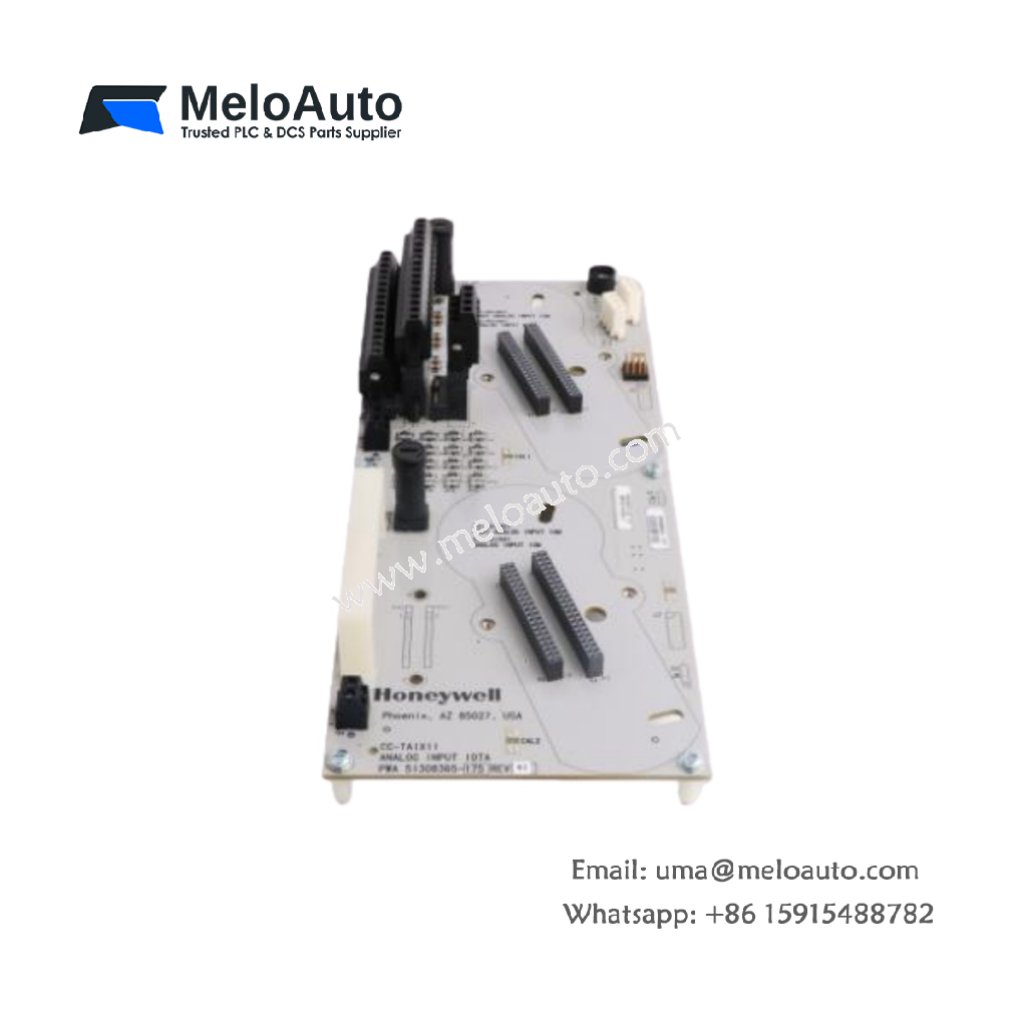

Honeywell CC-TAIX11 51308365-175 Analog Input Module

Overview

The Honeywell CC-TAIX11 51308365-175 is a highly reliable Redundant Analog Input Module (RAIM) designed for industrial process control and data acquisition systems. Part of Honeywell’s TotalPlant Solution (TPS), this module ensures enhanced fault tolerance and high availability, making it ideal for critical applications. It continuously collects analog signals such as temperature, pressure, and flow rate, providing precise monitoring and control. The CC-TAIX11 offers redundancy, advanced diagnostics, and the ability to operate in harsh industrial environments without system downtime.

Key Features

16 High-Level Analog Input Channels: The module supports up to 16 input channels, providing flexibility for various industrial measurement applications.
Redundant Design: Ensures system reliability with redundant channels and power supply, crucial for fault-tolerant operations.
Hot-Swappable: Replace modules without interrupting ongoing operations, ensuring continuous system uptime.
Wide Input Range: Accepts multiple input types, including voltage (0-5V), current (4-20mA), and thermocouples.
Effective Isolation: Isolated inputs protect against noise and interference, ensuring accurate signal transmission.
Advanced Diagnostics: Built-in diagnostic functions help troubleshoot and maintain system health.
Support for Safety Instrumented Systems (SIS): Enables integration with safety-critical applications, meeting industry standards for reliability.

Technical Specifications

Feature	Specification
Model Number	CC-TAIX11 51308365-175
Manufacturer	Honeywell
Type	Redundant Analog Input Module (RAIM)
Number of Channels	16
Input Types	Voltage, Current, Thermocouple
Input Range	0-5V or 4-20mA
Resolution	16 bits
Accuracy	±0.1%
Repeatability	±0.02%
Isolation	500V isolation
Sampling Rate	100 samples/second
Power Supply	24V DC
Operating Temperature	0°C to 60°C (typically)
Hot Swap Capability	Yes
Diagnostic Capabilities	Advanced diagnostics for troubleshooting
Dimensions	29.4 cm x 12 cm x 7 cm
Weight	0.38 kg
Country of Origin	United States

Applications

The Honeywell CC-TAIX11 51308365-175 module is ideal for applications that require high availability, reliability, and redundancy, including:

Process Control: Continuously monitor and control industrial processes such as chemical production and manufacturing.
Industrial Automation: Integrate into automated systems for efficient operation and real-time monitoring.
Building Automation: Manage environmental systems, including HVAC and lighting controls.
Power Generation: Enable real-time data acquisition and system management in power plants.
Oil and Gas Production: Monitor critical parameters in upstream and downstream oil & gas operations.
Water and Wastewater Treatment: Ensure precise control of water treatment processes and wastewater management.
SIS (Safety Instrumented Systems): Enhance safety systems for high-risk environments where system uptime is critical.
