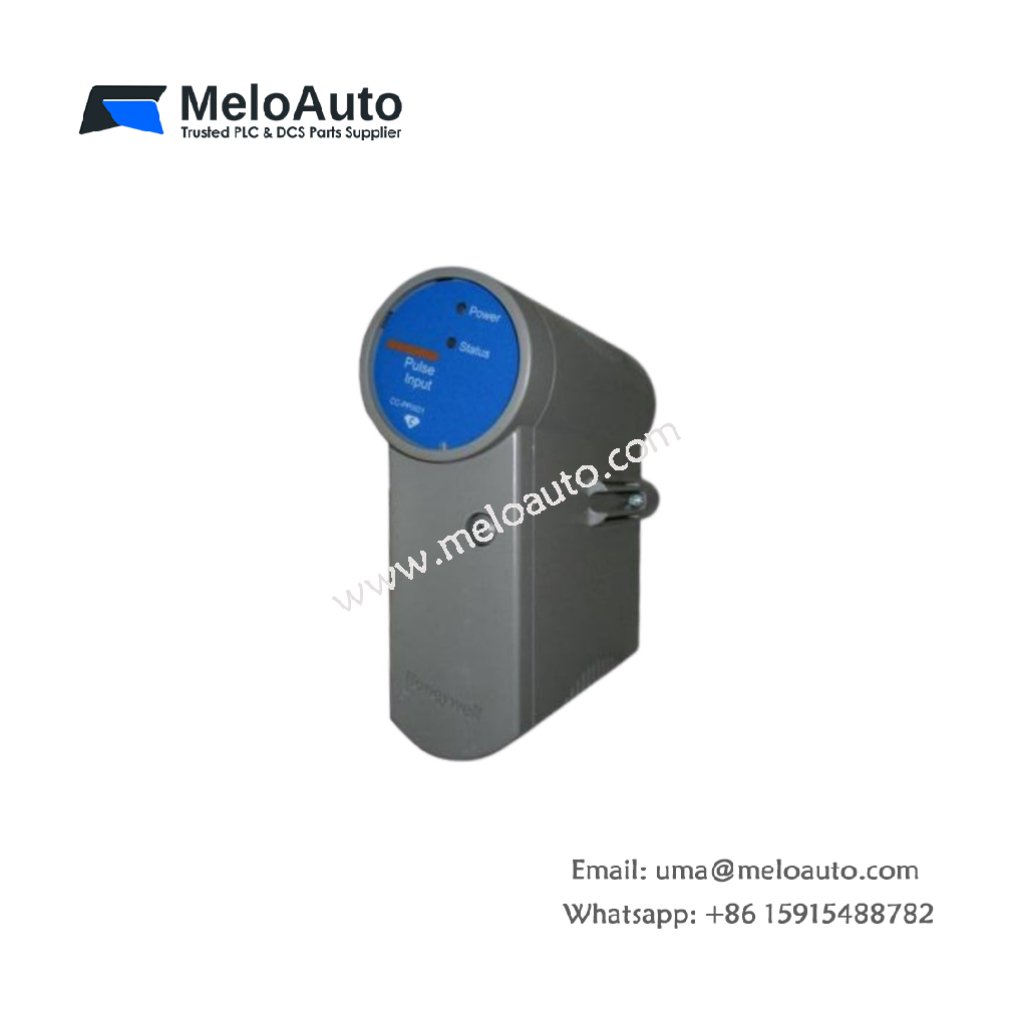

Honeywell CC-PPIX01 51410089-175 Pulse Input Module

Technical Overview

The Honeywell CC-PPIX01 (part number 51410089-175) is a high-performance Pulse Input Module (PIM) for the Experion Series C I/O architecture and C300 controller . This module processes pulse signals from field devices such as flow meters, turbine meters, and speed sensors, converting them into rate and totalized values for the control system . It supports custody transfer and metrology applications with exceptional accuracy.

The Honeywell CC-PPIX01 51410089-175 implements dual-pulse inputs compliant with ISO 6551/API 5.5 standards, ensuring Level A pulse integrity for trade transfer applications . It features extensive self-diagnostics and supports optional redundancy for enhanced system availability . The module mounts on a corresponding IOTA (Input Output Termination Assembly), specifically model CC-TPIX11 .

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model Number	CC-PPIX01
Part Number	51410089-175
Product Type	Pulse Input Module
System Compatibility	Experion Series C, C300 Controller
Input Channels	8 single-ended or 4 dual (mixed configurable)
Frequency Range (Single Channel)	0–100 kHz
Frequency Range (Dual Channel)	0–10 kHz
Frequency Accuracy	±0.001% of Reading (0.5 Hz–100 kHz)
Input Voltage Range	0–35 VDC
Input Impedance	>70 kΩ
Output Channels	2
Fast Cutoff Latency	1 ms (max)
Edge Selection	Rising (default) or Falling
Isolation	1000 VDC optical
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +85°C
Weight	0.25–0.4 kg
Dimensions	6 x 15.5 x 14.5 cm
Mounting	CC-TPIX11 IOTA baseplate
Country of Origin	USA

Key Features

High-Precision Pulse Processing – The Honeywell CC-PPIX01 51410089-175 delivers ±0.001% reading accuracy, enabling precise frequency, period, and pulse width measurement for critical flow and speed monitoring applications .

ISO 6551/API 5.5 Compliance – The dual-pulse input function ensures Level A pulse integrity, making the module suitable for custody transfer and trade metering applications requiring stringent measurement standards .

Flexible Channel Configuration – This module supports up to 8 single-ended or 4 dual-ended pulse inputs with mixed configurations, adapting to diverse field wiring requirements without hardware changes .

Fast Cutoff Function – The module can immediately stop dosing operations when a threshold is reached, with a maximum 1 ms latency, preventing overfill and enhancing process safety .

MeterSuite Compatibility – The Honeywell CC-PPIX01 integrates seamlessly with the MeterSuite application for custody transfer data management and reporting .

Extensive Self-Diagnostics – Built-in diagnostics monitor channel saturation, pulse dropout, and threshold violation states, simplifying troubleshooting and reducing maintenance time .

Optional Redundancy – Users can configure redundant IOTA assemblies without external cabling, ensuring uninterrupted pulse monitoring in critical loops .

Applications

The Honeywell CC-PPIX01 51410089-175 excels in oil and gas custody transfer, chemical batch processing, turbine generator speed monitoring, and water treatment flow management . It is ideal for flow totalization, speed monitoring, and batch control within Experion PKS-based distributed control systems.
