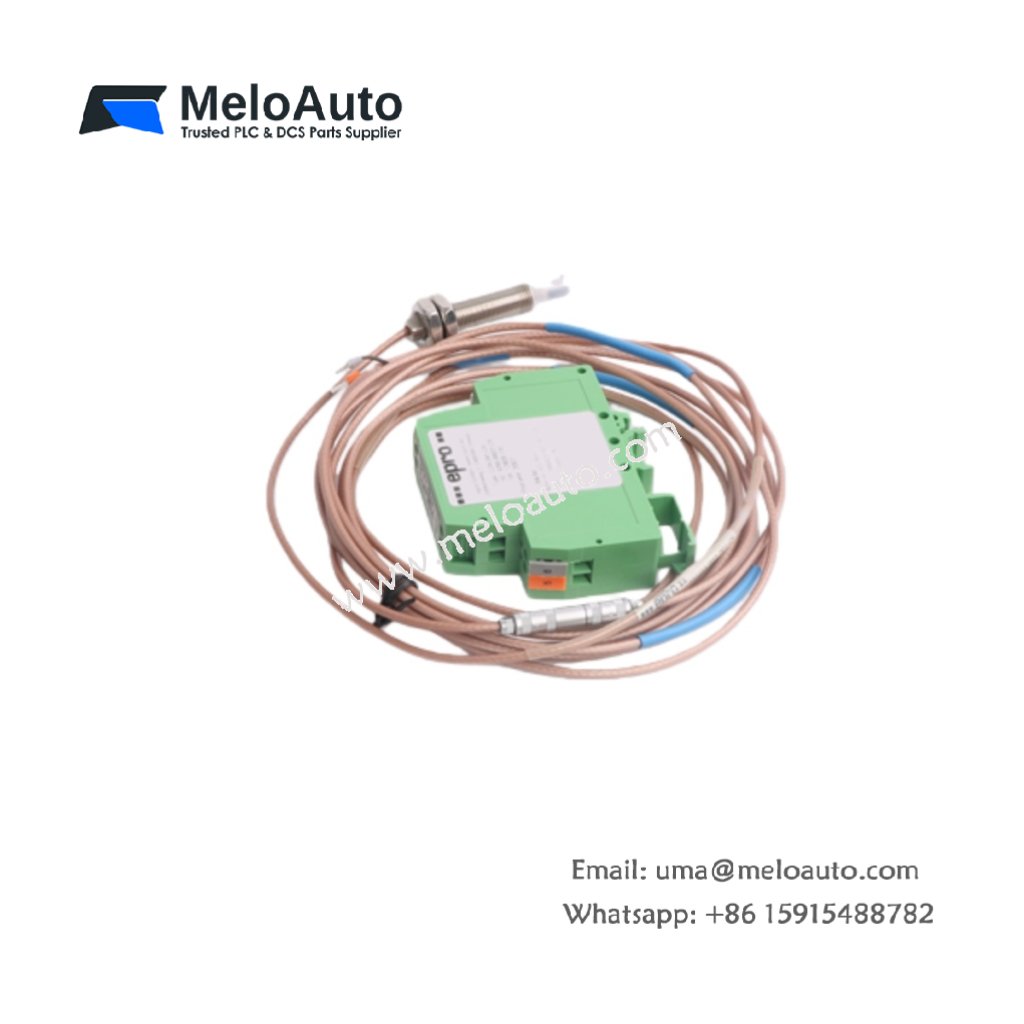

EPRO PR6423/005-010 CN Eddy Current Transducer

Overview

The EPRO PR6423/005-010 CN eddy current transducer system is engineered to measure key mechanical parameters, such as displacements and vibrations. This system excels in demanding industrial environments due to its compact size, robust design, and ability to resist harsh conditions. It operates on a contactless measurement principle, making it ideal for monitoring turbomachines across various industries. The EPRO PR6423/005-010 CN offers accurate and reliable measurements, ensuring optimal performance for critical equipment.

Key Applications

The EPRO PR6423/005-010 CN transducer system provides precise monitoring for a wide range of mechanical parameters in turbomachines. It helps ensure smooth operation and early detection of potential issues. Typical applications include measuring:

Clearances between rotating and stator parts
Vibration of rotating and other machine components
Dynamic motion and eccentricity of shafts
Deformation or bending of rotating or stator components
Axial and radial shaft movements
Thrust bearing positions and wear
Oil film thickness
Differential expansions
Housing expansions and valve positions

With these capabilities, the EPRO PR6423/005-010 CN ensures comprehensive monitoring of critical parameters that affect machinery performance and reliability.

How the System Works

The EPRO PR6423/005-010 CN operates by using an eddy current transducer in combination with a signal converter, forming an oscillator circuit. The amplitude of the oscillator’s vibration is dampened as a metallic object moves closer to the transducer. The damping characteristics of the system are proportional to the distance between the transducer face and the object being measured.

This system comes fully pre-adjusted, eliminating the need for on-site calibration. The only required adjustment is setting the correct gap between the transducer and the object to achieve the desired signal output from the converter.

Technical Specifications

Feature	Specification
Model	PR6423/005-010 CN
Manufacturer	EPRO
Measurement Range	0° to 360°
Accuracy	±0.10°
Resolution	12 bits
Output Signal	Analog (4-20mA) or Digital (RS485)
Power Supply	24 VDC
Operating Temperature	-20°C to 70°C
Limit Values per Channel	Up to 6
Interfaces	RS485, PROFIBUS-DP (optional)
Self-Test Functions	Built-in for electronics and sensors
Electrical Isolation	Binary input/output signals isolated
Installation	Pre-adjusted, no on-site calibration required

Key Advantages

Compact and Robust: The EPRO PR6423/005-010 CN features a small size and robust design, making it perfect for use in challenging industrial environments.
Highly Accurate: Offering a 12-bit resolution, this transducer ensures accurate measurement of critical parameters, such as vibration and displacement.
Efficient Installation: The EPRO PR6423/005-010 CN comes fully pre-adjusted, simplifying installation and eliminating the need for time-consuming on-site calibration.
Versatile Monitoring: This system provides comprehensive monitoring for various mechanical parameters, such as shaft movement, vibration, and oil film thickness. It is highly versatile and applicable in numerous industries.

Conclusion

The EPRO PR6423/005-010 CN eddy current transducer system is an advanced solution for industries requiring reliable measurement of mechanical parameters like vibration and displacement. Its robust design, high accuracy, and simple installation process make it an invaluable tool for optimizing turbomachine performance. With its reliable, contactless measurement capabilities, this system helps improve machine health and prevent failures, ensuring operational efficiency.
