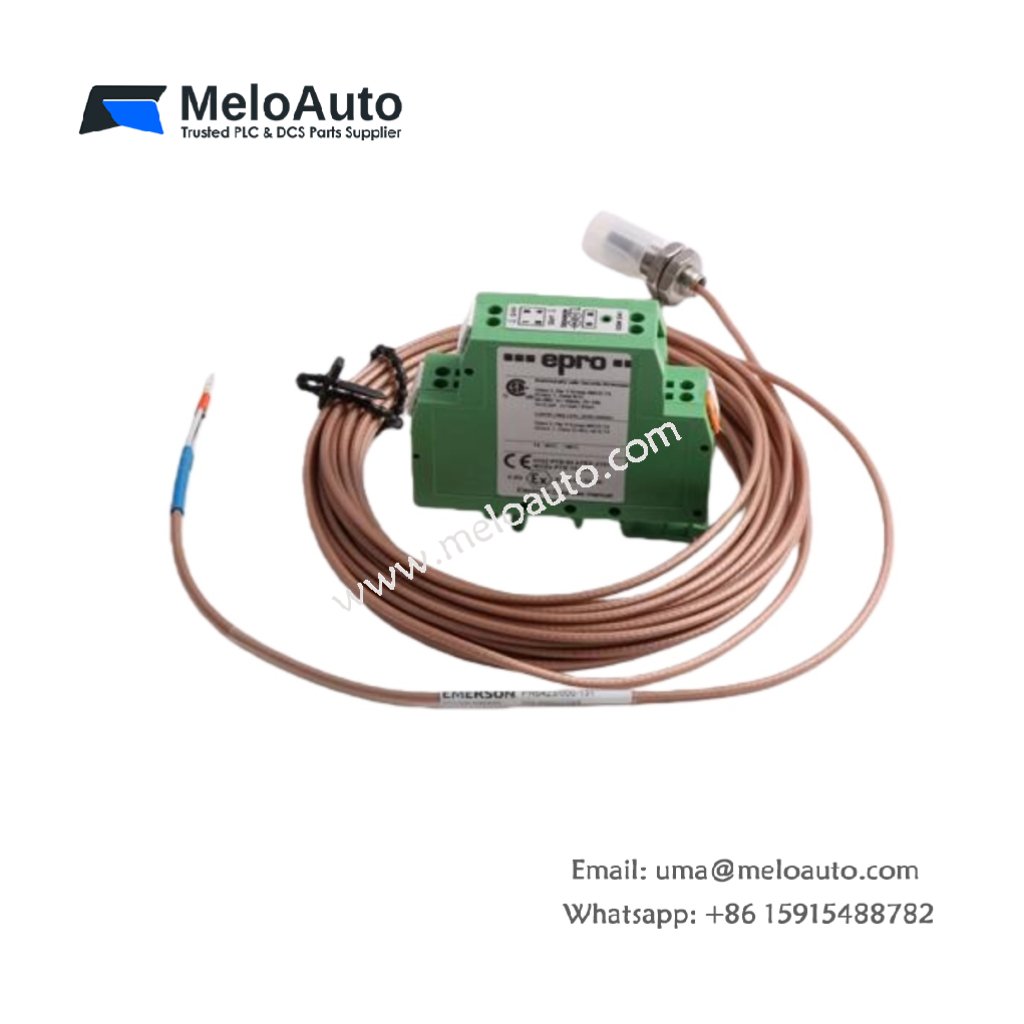

EPRO PR6423/154-110 Eddy Current Transducer

Overview

The EPRO PR6423/154-110 eddy current transducer system offers a reliable and effective solution for measuring critical mechanical parameters such as displacement and vibration. By using a contactless measurement method, this system performs exceptionally well in industrial environments where reliability is paramount. Furthermore, its compact design, rugged construction, and resistance to harsh conditions make it an ideal choice for monitoring turbomachines.

With its wide range of applications, the EPRO PR6423/154-110 provides invaluable data for various industries, ensuring better machine monitoring and performance.

Key Applications

The EPRO PR6423/154-110 transducer system is highly versatile and is used in monitoring several important parameters across different industries, including:

Clearances between rotating and stator parts
Vibration of rotating components and other machine elements
Dynamic motion and eccentricity of shafts
Deformation or bending of rotating or stator components
Axial and radial shaft movements
Thrust bearing positions and wear
Oil film thickness
Differential expansions
Housing expansions and valve positions

Thanks to its precise monitoring capabilities, the EPRO PR6423/154-110 ensures early detection of potential issues and helps optimize the performance of critical systems.

How It Works

The EPRO PR6423/154-110 eddy current transducer works in conjunction with a signal converter to create an oscillator circuit. This oscillator’s amplitude is dampened when a metallic object approaches the transducer, with the damping characteristics directly proportional to the distance between the transducer and the object being measured.

Notably, the system is delivered fully adjusted, which eliminates the need for on-site calibration. Once installed, the only adjustment required is setting the gap between the transducer and the measured object to achieve the specified output signal.

Technical Specifications

Feature	Specification
Model	PR6423/154-110
Manufacturer	EPRO
Measurement Range	0° to 360°
Accuracy	±0.10°
Resolution	12 bits
Output Signal	Analog (4-20mA) or Digital (RS485)
Power Supply	24 VDC
Operating Temperature	-20°C to 70°C
Limit Values per Channel	Up to 6
Interfaces	RS485, PROFIBUS-DP (optional)
Self-Test Functions	Built-in for electronics and sensors
Electrical Isolation	Binary input/output signals isolated
Installation	Pre-adjusted, no on-site calibration required

Key Advantages

Compact and Robust: Despite its small size, the EPRO PR6423/154-110 is designed to withstand tough industrial environments, ensuring reliable long-term performance.
Highly Accurate: This system provides precise measurements with a 12-bit resolution, making it highly suitable for sensitive applications requiring exact data.
Efficient Installation: The transducer comes fully adjusted, simplifying installation. No on-site calibration is necessary, saving both time and effort during setup.
Versatile Monitoring: The EPRO PR6423/154-110 supports a wide range of applications, from monitoring shaft movements to measuring oil film thickness. Its flexibility makes it ideal for multiple industries.

Conclusion

The EPRO PR6423/154-110 eddy current transducer system is an essential tool for industries requiring high-precision monitoring of mechanical parameters. Its advanced design ensures durability and accuracy, while its simple setup process makes it cost-effective and easy to deploy. This system provides reliable, contactless measurement, contributing to the optimization of turbomachines and similar equipment.
