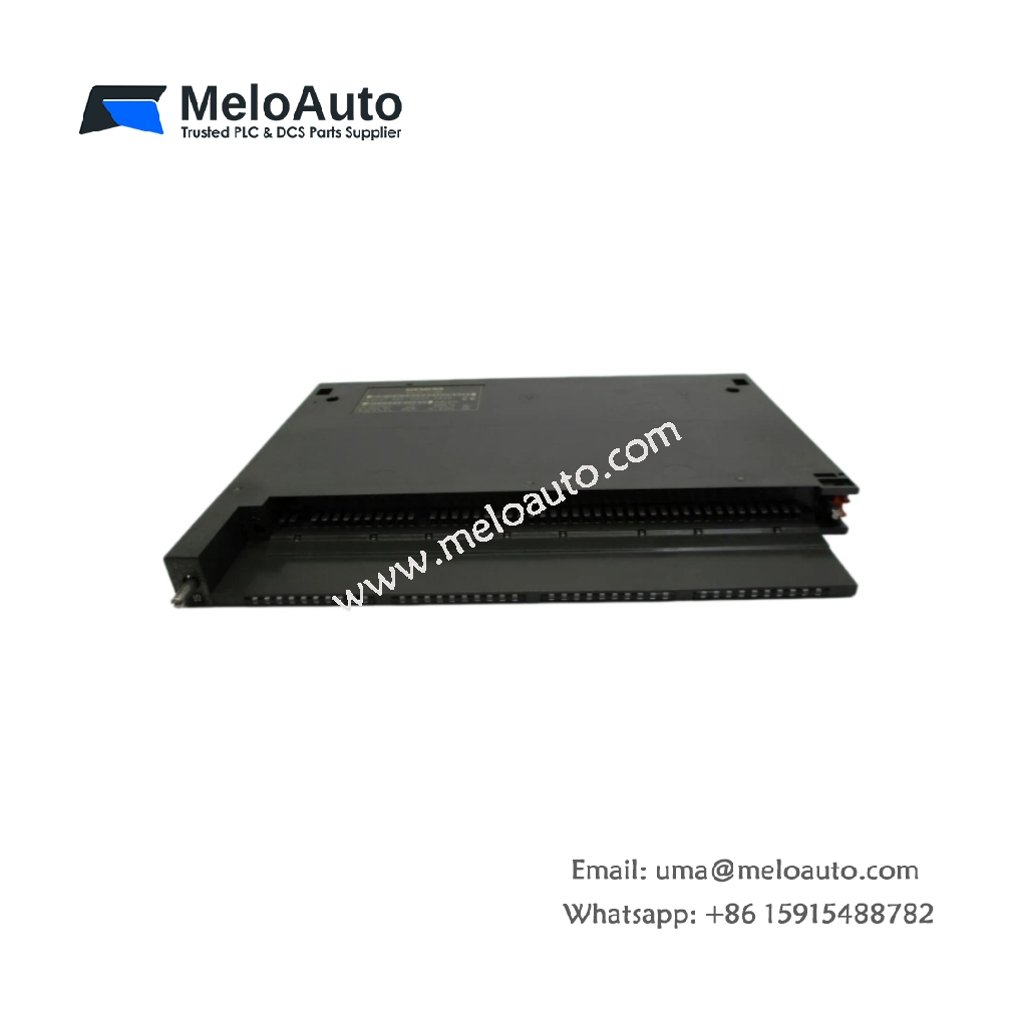

Siemens 6ES7422-1HH00-0AA0 SIMATIC S7-400 Digital Output SM 422

The Siemens 6ES7422-1HH00-0AA0 delivers robust digital output control for S7-400 automation systems. This SM 422 module drives AC-powered field actuators and contactors effectively. It provides high-voltage switching for demanding industrial applications. You will achieve reliable on/off control of motors, valves, and heating elements. This module suits both continuous and batch process environments.

Physical Dimensions and Mounting Specifications

This digital output module features a sturdy housing for S7-400 rack mounting. Its physical dimensions are 290 mm in height, 25 mm in width, and 210 mm in depth. It weighs approximately 0.8 kilograms for straightforward installation. The operating temperature ranges from 0°C to +60°C. This thermal range supports standard control room and cabinet installations.

Output Channel Configuration and Electrical Ratings

The Siemens 6ES7422-1HH00-0AA0 provides 16 digital output channels for field devices. Each channel delivers 120/230 V AC at 2 amperes continuous current. The outputs include built-in snubber circuits for inductive load protection. These circuits suppress voltage spikes from contactor and relay coils. The module also features optocoupler isolation between logic and output circuits.

Switching Performance and Load Capabilities

This module handles resistive, inductive, and capacitive loads effectively. It switches loads with a maximum inrush current of 20 amperes. The Siemens 6ES7422-1HH00-0AA0 provides a switching frequency of up to 10 Hz. Each output channel includes thermal overload protection for fault conditions. The module also features short-circuit protection with automatic shutdown.

Diagnostic and Status Monitoring Features

The module provides comprehensive diagnostics through the STEP 7 software. It detects load voltage faults and short-circuit conditions accurately. The Siemens 6ES7422-1HH00-0AA0 includes LED indicators for each output channel. These LEDs display active status and fault conditions clearly. The module also logs diagnostic events for maintenance analysis.

Component Architecture and Build Quality

The device contains approximately 95 discrete electronic components. Engineers select robust triacs for AC load switching applications. The PCB uses heavy copper traces for current carrying capacity. This design ensures long-term reliability in demanding industrial conditions.

Technical Specifications Summary

System Integration and Application Benefits

The Siemens 6ES7422-1HH00-0AA0 integrates seamlessly with S7-400 controllers. It communicates via the backplane bus for fast data updates. The module supports hot-swapping for maintenance convenience. You can rely on this module for demanding AC output applications.
