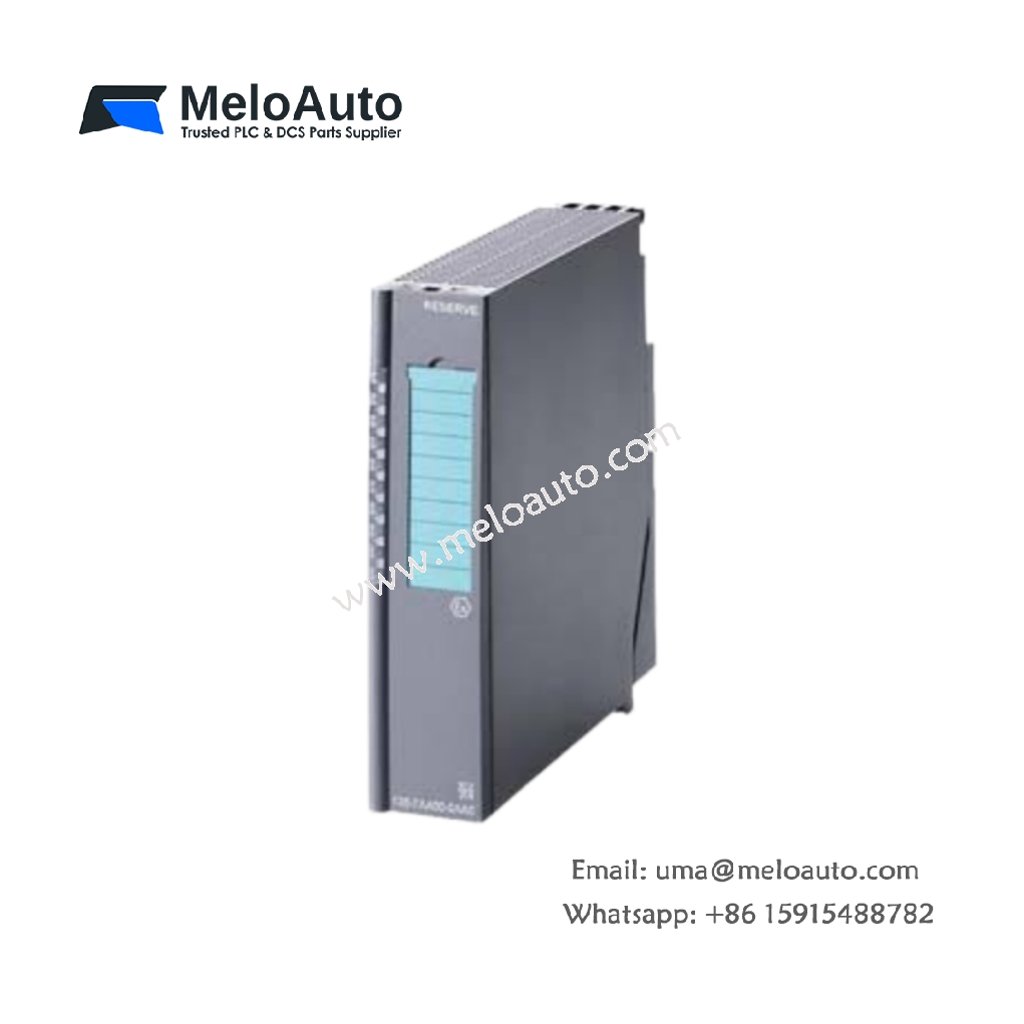

Siemens 6ES7138-7BB00-0AB0 SIMATIC DP Watchdog Module

The Siemens 6ES7138-7BB00-0AB0 provides reliable monitoring for ET 200S distributed I/O systems. This watchdog module supervises the communication link between master and slave stations. It activates a safe output state when it detects a communication failure. You will ensure process safety during network interruptions. This module suits critical applications requiring high availability and fault detection.

Physical Dimensions and Mounting Specifications

This watchdog module features a compact design for terminal block installation. Its physical dimensions are 81 mm in height, 15 mm in width, and 52 mm in depth. It weighs approximately 0.04 kilograms for straightforward handling. The operating temperature ranges from 0°C to +55°C. This thermal range supports most industrial control cabinet installations.

Monitoring Functions and Safety Features

The Siemens 6ES7138-7BB00-0AB0 continuously checks the PROFIBUS communication status. It monitors the cyclic data exchange between the DP master and slave. The module triggers a defined safe state after a watchdog timeout expires. This timeout period is configurable from 10 ms to 100 ms. The module also checks for correct parameterization during startup.

Output Behavior and Fault Response

This module provides a digital output that changes state upon fault detection. It drives this output to a predefined safe condition immediately. The Siemens 6ES7138-7BB00-0AB0 indicates communication status through a front LED. This LED shows active communication, watchdog timeout, or parameter errors. The module retains its fault state until the operator manually resets it.

Configuration and Parameterization

You configure the watchdog parameters through the STEP 7 software environment. The Siemens 6ES7138-7BB00-0AB0 stores its settings in non-volatile memory. You can adjust the timeout period and output behavior during commissioning. The module supports firmware updates for future functionality enhancements. It also stores diagnostic data for troubleshooting purposes.

Component Architecture and Build Quality

The device contains approximately 35 discrete electronic components. Engineers select components for reliable timekeeping and monitoring functions. The PCB receives a conformal coating for moisture resistance. This coating protects the module in humid industrial environments.

Technical Specifications Summary

Application Areas and Safety Integration

The Siemens 6ES7138-7BB00-0AB0 serves applications requiring communication supervision. You can use it in conveyor systems and machine safety circuits. The module also suits packaging and processing lines effectively. You gain reliable fault response with this watchdog solution.
