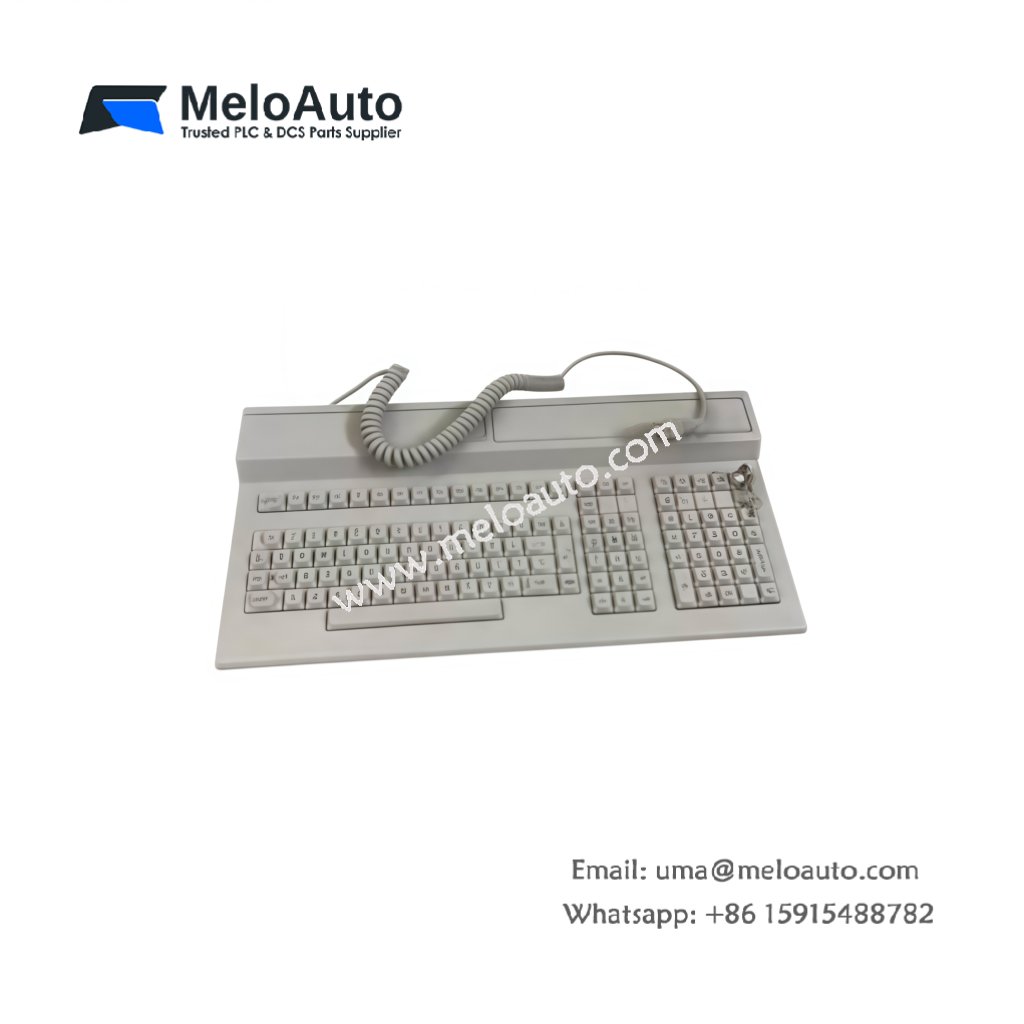

Siemens 6AV1720-0AA10 Coros Alphanumeric Keyboard

This alphanumeric keyboard provides text input for Siemens Coros operator panels. It connects directly to compatible HMI devices for data entry tasks. Therefore, this accessory simplifies operator interaction with industrial control systems.

Physical Dimensions and Weight Specifications

The Siemens 6AV1720-0AA10 features a membrane keypad with spill-resistant construction. Its width measures 380 mm for standard panel cutouts. The total depth reaches 35 mm including the rear connector. Consequently, technicians can mount this keyboard flush against cabinet doors.

Interface Type and Connection Details

The Siemens 6AV1720-0AA10 uses a standard PS/2 connector for communication. This interface provides both power and data through a single cable. The cable length reaches 1.8 meters for flexible placement options. Hence, operators can position the keyboard away from the main panel.

Component Count and Key Configuration

This keyboard contains one membrane layer with 72 individual keys. The assembly includes a steel backplate for structural rigidity. You will find 10 function keys for programmable shortcuts. Additionally, a separate numeric pad supports rapid value entry.

Energy Storage and Power Requirements

The Siemens 6AV1720-0AA10 draws only 50 mA from the PS/2 port. It requires no external power supply for normal operation. The keyboard does not contain any internal battery or capacitor. Therefore, the device works immediately after connecting to a compatible host.

Operating Conditions and Durability Features

The keyboard withstands over 1 million keystrokes per key. Its membrane surface resists dust and light liquid spills. Users can operate this device in temperatures from 0°C to 50°C. This durability suits factory environments with regular operator interaction.
