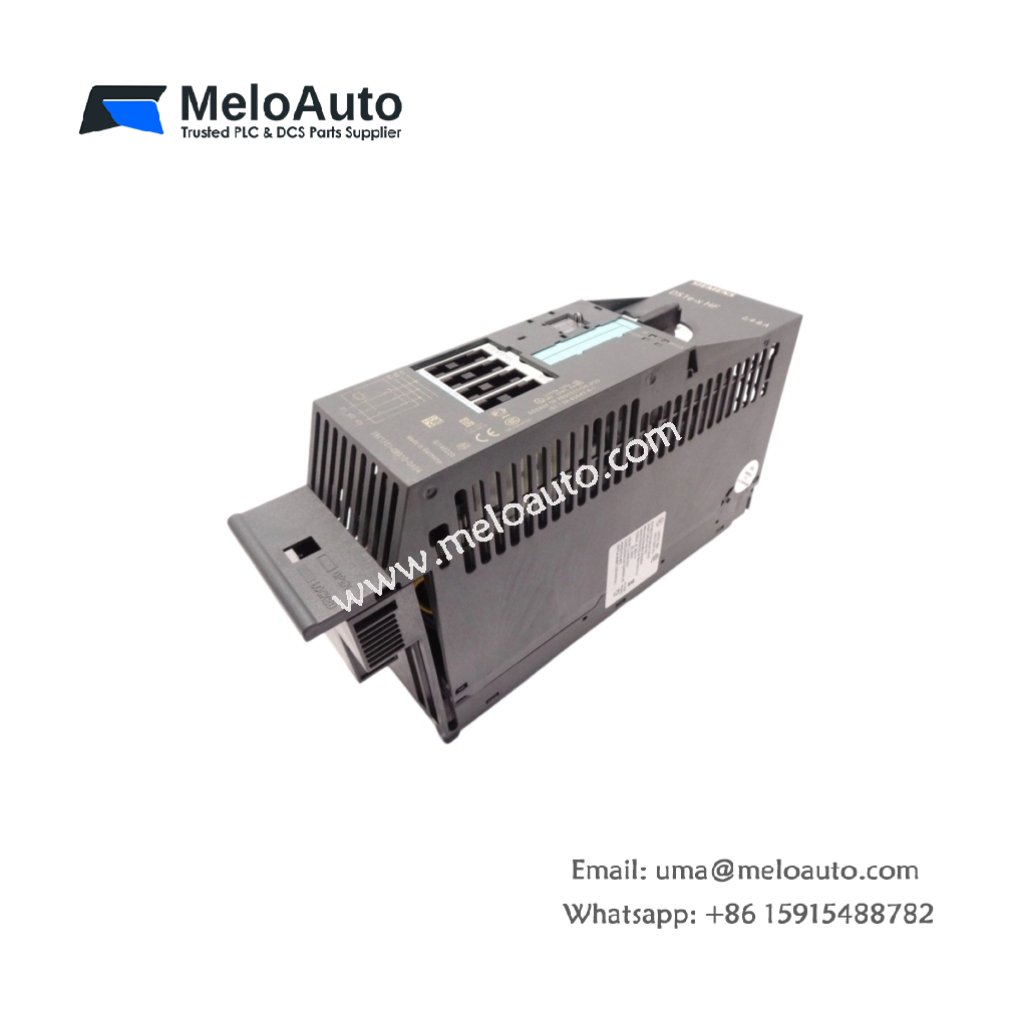

Siemens 8SX8504-0AB10 Central Processor

This central processor unit serves as the brain for Siemens industrial control systems. It executes user programs and manages all connected I/O modules efficiently. Therefore, this component delivers reliable performance for mid-sized automation applications.

Physical Dimensions and Mounting Details

The Siemens 8SX8504-0AB10 features a compact housing for panel mounting. Its width measures 150 mm for standard enclosure layouts. The total depth reaches 110 mm including the front connector. Consequently, technicians can install this processor in crowded cabinets without difficulty.

Interface Types and Connectivity Options

The Siemens 8SX8504-0AB10 provides one Ethernet port for network communication. A second RS-485 interface supports connection to remote I/O stations. The front panel carries a USB port for program uploads and diagnostics. Hence, users can access the processor with standard cables.

Component Count and Onboard Resources

This central processor contains one main board with a 32-bit microcontroller. The board includes 512 KB of RAM for program execution. You will also find 1 MB of flash memory for non-volatile storage. An onboard real-time clock maintains timestamp data during power cycles.

Energy Storage and Power Consumption

The Siemens 8SX8504-0AB10 draws 350 mA from the 24V DC supply. A gold capacitor bank retains RAM data for 7 days without external power. This energy storage eliminates the need for a separate backup battery. Therefore, the processor preserves program state during short maintenance outages.

Processing Speed and Scan Cycle Performance

The processor executes 0.15 microseconds per basic logic instruction. It handles up to 1024 digital I/O points within a single scan. Users can store up to 2048 function blocks in the flash memory. This capacity supports complex control strategies for production lines.
