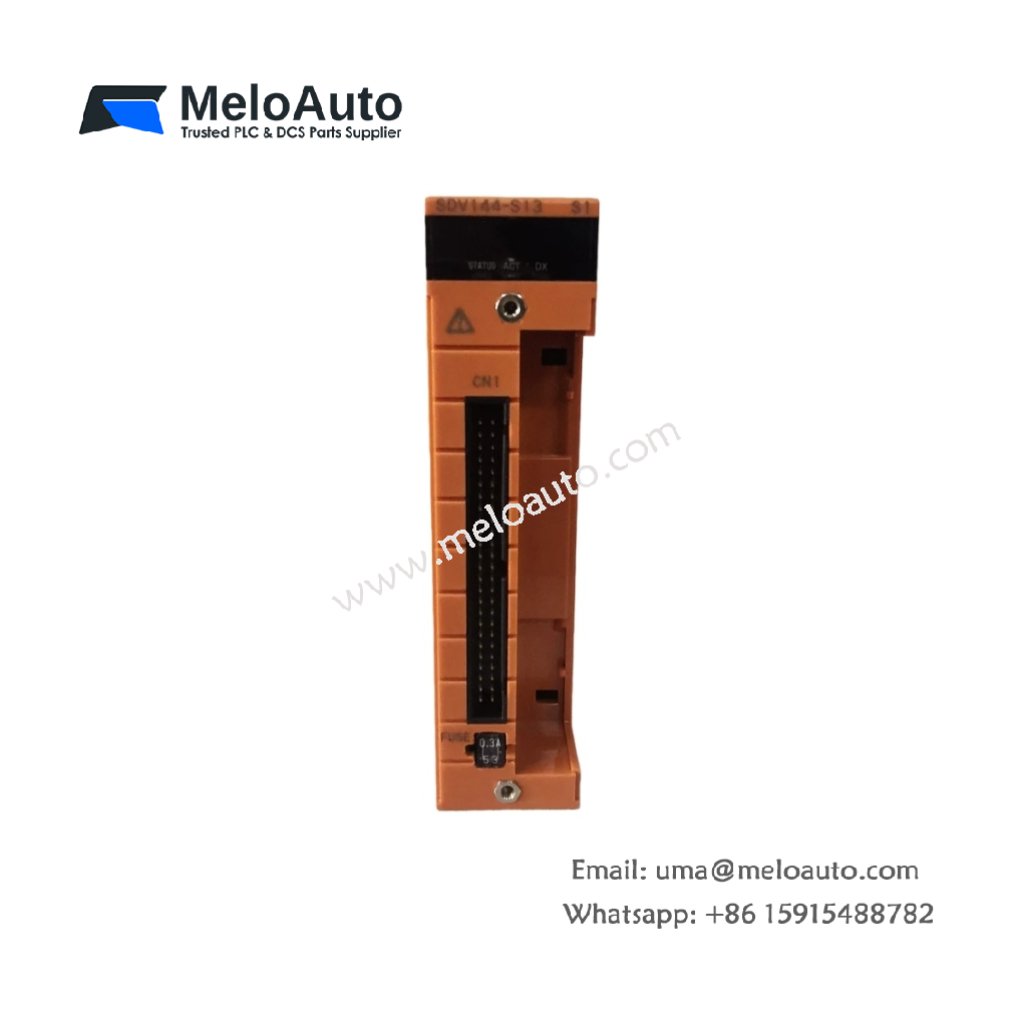

Yokogawa ADV144-S13 16-Channel Isolated Digital Input Module

The Yokogawa ADV144-S13 is a 16-channel isolated digital input module designed for reliable signal acquisition in industrial automation and process control applications. It offers a versatile solution for controlling and monitoring various devices with high accuracy.

Key Specifications:

Specification	Details
Manufacturer	Yokogawa
Model	ADV144-S13
Product Type	Digital Input Module
Number of Input Channels	16 (Isolated)
Input Signal Type	No-voltage contact
ON Resistance	1 kΩ (Max)
OFF Resistance	100 kΩ (Min)
Input Current	6 mA ± 20% (at 24V input)
Contact Rating	24V ± 20% / -10%, 10 mA or greater
External Power Supply	24V ± 5%
Current Capacity	200 mA
Instantaneous Maximum Input Voltage	30V DC
Input Response Time	42 ms (Max)
Withstand Voltage	2 kV AC (for 4 minutes, between input and system)
Current Consumption	5V DC: 290 mA Max
	24V DC: 140 mA Max

Features:

Reliable Signal Acquisition: The ADV144-S13 supports 24V DC contact signals, ensuring stable and accurate data collection from various industrial systems.
Isolated Inputs: This module provides 16 isolated input channels, making it ideal for use in systems where input isolation is critical to prevent interference and improve signal integrity.
Fast Response Time: With an input response time of just 42 ms, the ADV144-S13 ensures quick signal processing, making it suitable for high-speed applications.
Wide Voltage Tolerance: It can handle instantaneous input voltages up to 30V DC, offering flexibility in diverse operating environments.
High Durability: The module withstands up to 2 kV AC between input signals and the system, providing added protection against electrical surges.
Low Power Consumption: The ADV144-S13 is energy-efficient, drawing only 290 mA at 5V DC and 140 mA at 24V DC, which helps reduce the overall power requirements of the system.

Applications:

Industrial Automation: The ADV144-S13 is ideal for automation systems that require isolated digital inputs for monitoring and control.
Process Control: Its high tolerance to voltage fluctuations and rapid response time make it perfect for controlling various industrial processes.
Control Systems: The module’s 16 isolated channels ensure secure and accurate input acquisition, making it highly reliable for controlling complex systems.

Installation and Integration:

The Yokogawa ADV144-S13 integrates easily into existing industrial setups. It supports rack or panel mounting and connects via a 24V DC power supply.
The module’s design allows for straightforward installation, with clear documentation provided for wiring and setup.
