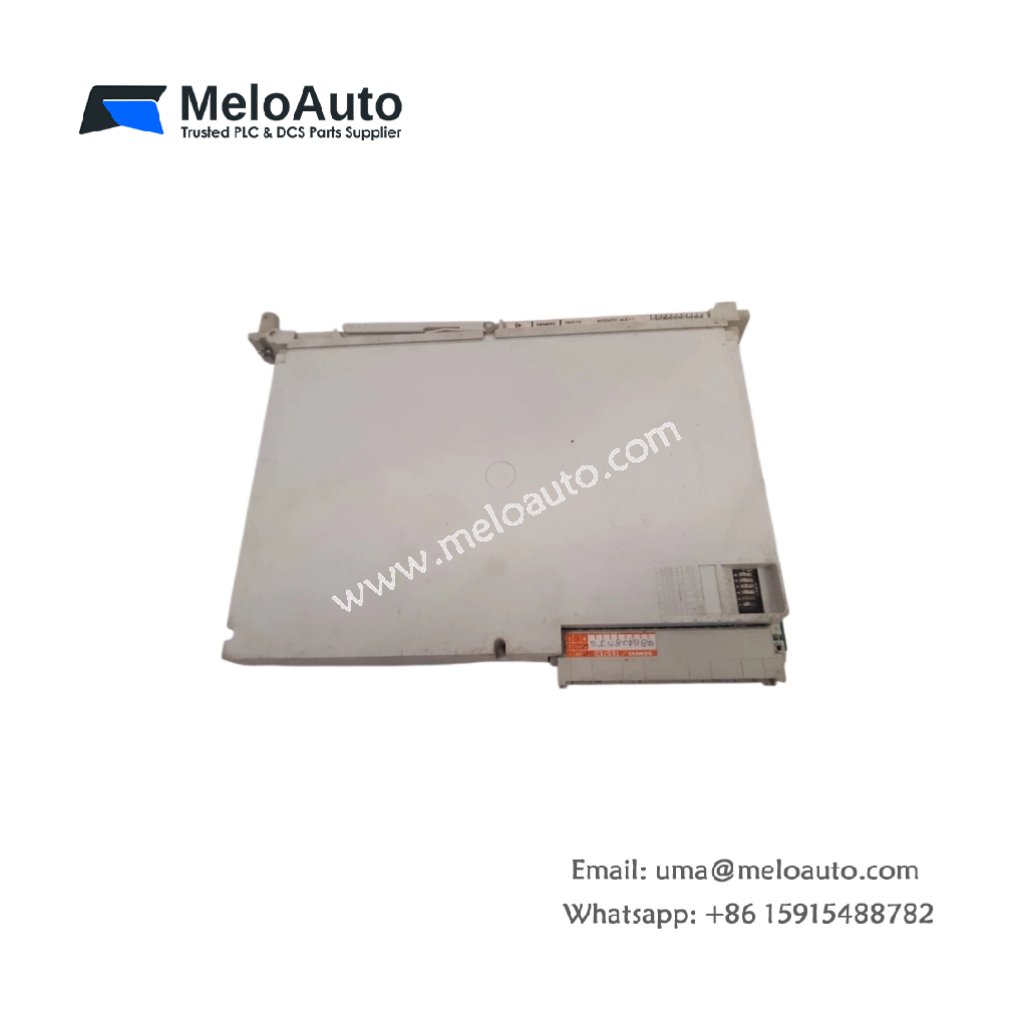

Siemens 6ES5470-4UC11 Analog Output Module

Technical Overview

The Siemens 6ES5470-4UC11 is an analog output module for the SIMATIC S5-135U programmable controller series. This module converts digital values from the CPU into precise analog signals for controlling field devices. It provides four isolated output channels, each configurable for either 0–10V voltage or 0–20mA current signals. The module transmits the analog values with 11-bit resolution, ensuring high accuracy. It also features a front-facing connection for flexible and accessible wiring. A 24V DC external supply powers the module, which then supplies the outputs to the actuator.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5470-4UC11
Product Type	Analog Output Module
System Compatibility	SIMATIC S5-135U
Number of Outputs	4
Output Signal Range	0–10V or 0–20mA (configurable)
Resolution	11 bits
Load Impedance	≥ 1 kΩ for voltage output; ≤ 500 Ω for current output
Conversion Time	0.2 ms per channel
Power Supply	24 VDC
Current Consumption	200 mA (from 24V DC)
Isolation	Yes
Dimensions	233 mm x 37 mm x 268 mm
Weight	0.38 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Certifications	CE, UL, CSA
Country of Origin	Germany

Key Features

Isolated Output Channels – The 4 isolated channels prevent ground loops and signal interference.

High Resolution and Accuracy – With 11-bit resolution, the module ensures precise and reliable analog outputs.

Versatile Signal Selection – Each channel supports either 0-10V or 0-20mA signals, accommodating a wide range of actuators.

Fast Conversion – The swift 0.2 ms conversion time guarantees a responsive control loop.

External 24V Power – The module uses an external 24V DC supply to power its outputs, ensuring stable signals.

Applications

The Siemens 6ES5470-4UC11 is ideal for controlling variable-speed drives, valves, and actuators in process automation. It is also well-suited for proportional control in chemical plants, water treatment, and HVAC systems.
