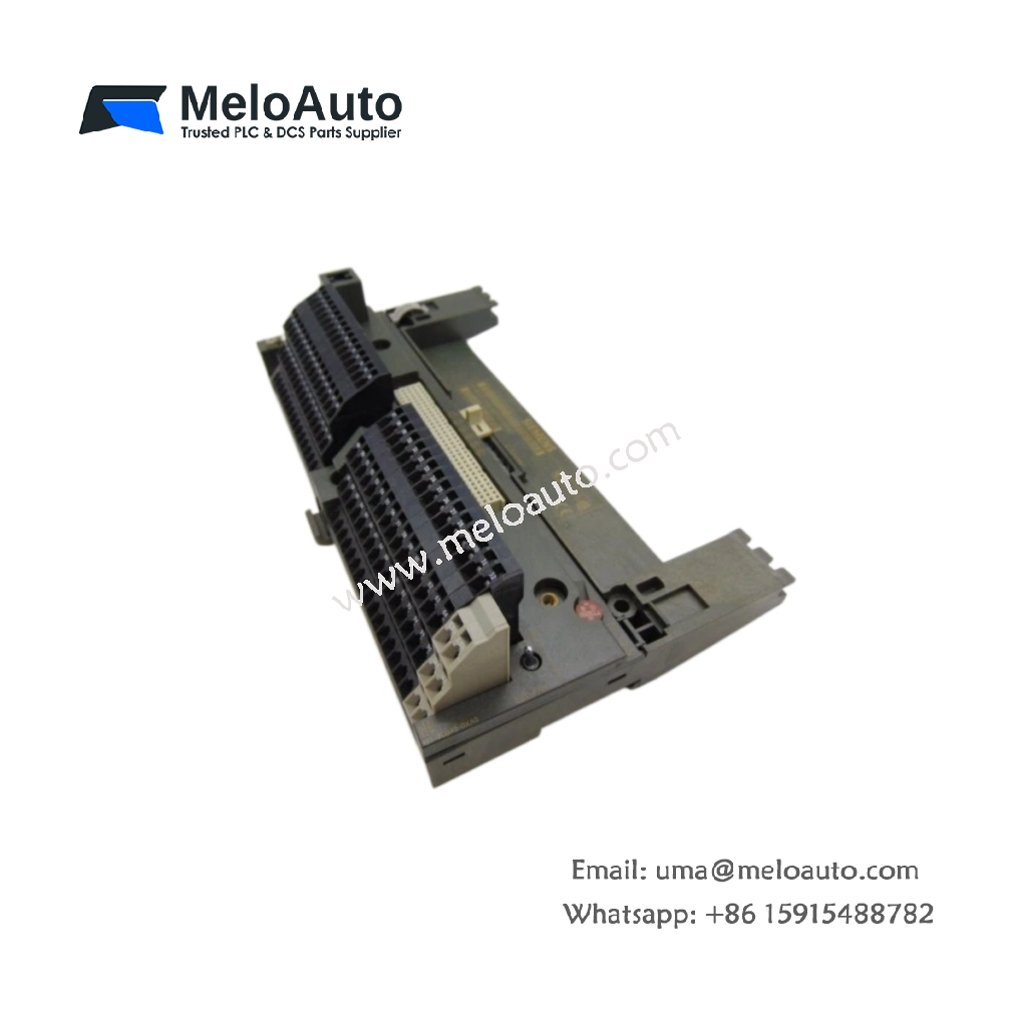

Siemens 6ES7193-0CB40-0XA0 Terminal Block

Reliable Field Wiring Connection for ET 200M Stations

This terminal block provides secure connections for field wiring to ET 200M I/O modules. It simplifies installation and maintenance with removable connectors. Many facilities choose this unit for organized and service-friendly cabinet layouts. The block ensures reliable electrical connections for all connected devices.

Technical Specifications

Parameter	Specification
Model	6ES7193-0CB40-0XA0
Dimensions	125 mm × 65 mm × 30 mm (W × H × D)
Weight	0.18 kg
Terminal Type	Screw-type connectors
Number of Terminals	40 terminals (20 × 2)
Wire Gauge	0.2 mm² to 2.5 mm²
Stripping Length	8 mm to 10 mm
Compatibility	ET 200M digital and analog modules
Voltage Rating	250 V AC
Current Rating	10 A per terminal
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Certifications	CE, UL, cULus

Terminal Design and Connection System

This block features 40 screw-type terminals for field signal wiring. Each terminal accepts wires from 0.2 mm² to 2.5 mm² cross-section. The screw connection ensures gas-tight and vibration-resistant terminations. The design supports solid and stranded conductors.

Compatibility and Module Integration

This terminal block fits all ET 200M digital and analog I/O modules. It mounts directly adjacent to the associated I/O module. A connector system links the terminals to the module channels. This integration simplifies cabinet wiring and maintenance procedures.

Wire Preparation and Termination

Users strip wire insulation to 8 mm to 10 mm for termination. Insert the stripped wire into the terminal opening. Tighten the screw to secure the connection. This simple process speeds installation and reduces wiring errors.

Mechanical Construction and Physical Attributes

This block measures 125 mm wide and weighs just 0.18 kg. The compact design saves valuable cabinet space. Removable connectors allow module replacement without rewiring. This serviceability reduces maintenance time significantly.

Electrical Ratings and Performance

Each terminal handles up to 250 V AC and 10 A of current. This rating supports most field devices and sensors. The terminal block maintains low contact resistance. Reliable connections prevent signal losses and heating.

Certifications and Compliance

The 6ES7193-0CB40-0XA0 holds CE, UL, and cULus certifications. These approvals confirm compliance with international safety standards. Each unit undergoes quality inspection before shipment. This commitment ensures reliable performance.
