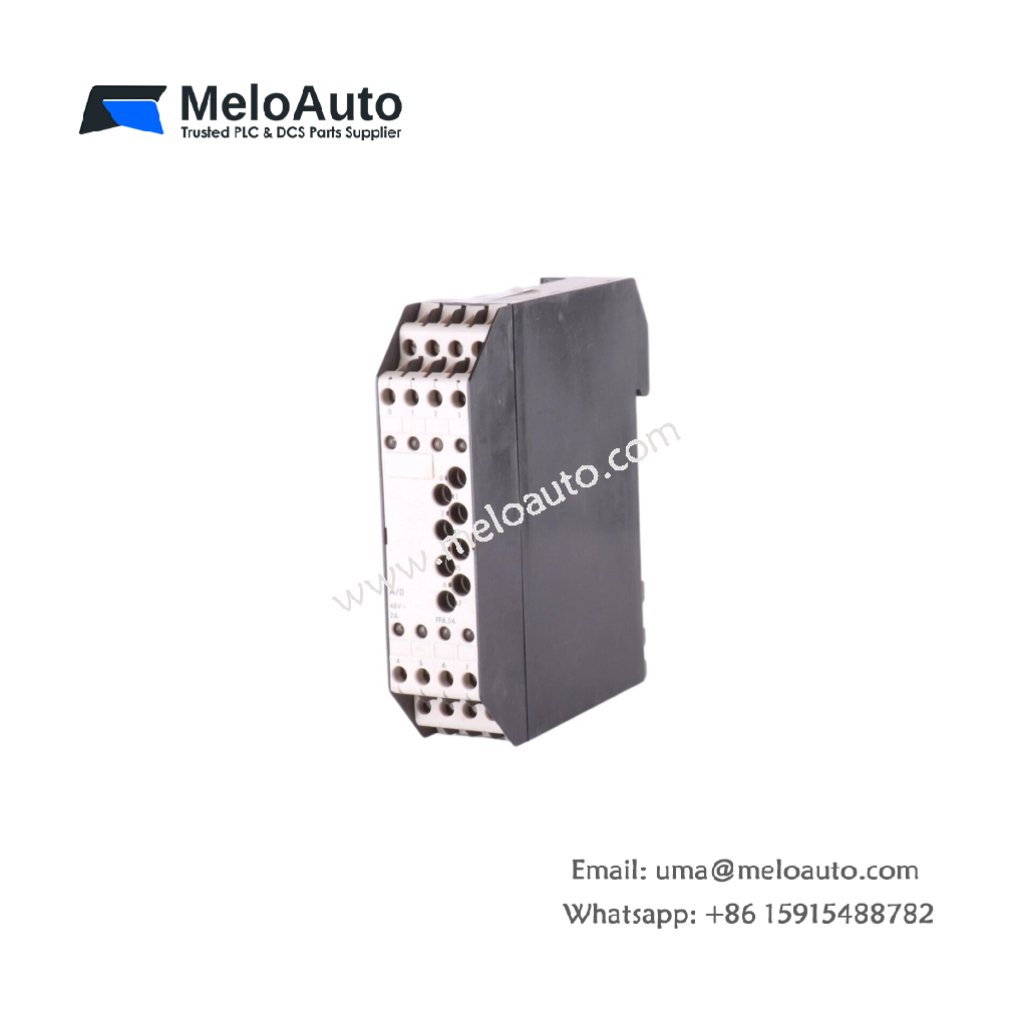

Siemens 6ES5415-7AA31 Digital Output Module

Reliable Actuator Control for S5 Systems

The Siemens 6ES5415-7AA31 digital output module drives actuators, contactors, and indicator lamps in S5-115U automation systems. This module translates logic commands from the CPU into physical switching actions for field devices. Production machinery relies on these outputs for precise and repeatable motion sequences.

Output Channel Specifications and Electrical Ratings

This module provides 16 digital output channels, each capable of switching 24 V DC loads up to 0.5 A. The total output current per module reaches 8 A, distributing across all channels simultaneously. Each output incorporates short-circuit protection that limits the current to 0.7 A per channel. Furthermore, the module includes integrated freewheeling diodes for inductive load suppression.

Channel Configuration and Diagnostic Features

Each output channel features an individual LED indicator for visual status verification. The module provides a common fault signal that activates upon overcurrent or overtemperature conditions. A built-in watchdog timer monitors the communication with the CPU for system integrity. Moreover, the module supports channel-specific masking for selective disable during commissioning.

Protection Circuits and Load Handling

This digital output module employs thermal shutdown at 85°C to prevent damage from overloaded channels. Reverse polarity protection on the output stage safeguards against wiring errors during installation. The module also includes transient voltage suppression to absorb inductive kickback from relays. These protective measures ensure reliable operation in demanding industrial environments.

Mechanical Design and Installation Details

The Siemens 6ES5415-7AA31 features a compact 40 mm housing that fits standard S5-115U rack slots. The unit weighs only 0.35 kilograms, allowing easy insertion and removal from the backplane. A 32-pin front connector provides access to all output terminals and the common power supply. Screw-type terminals accept wires from 0.5 mm² to 1.5 mm² for secure field connections.

Application Guidelines and System Integration

You can place this output module in any slot of the S5-115U central or expansion rack. The module maps its 16 outputs to consecutive addresses in the CPU’s I/O image table. For inductive loads, we recommend connecting external suppression diodes across the field devices. Always connect the external 24 V DC supply to the module’s power terminals before operation. This module works seamlessly with Siemens S5-115U CPUs and all compatible programming software.
