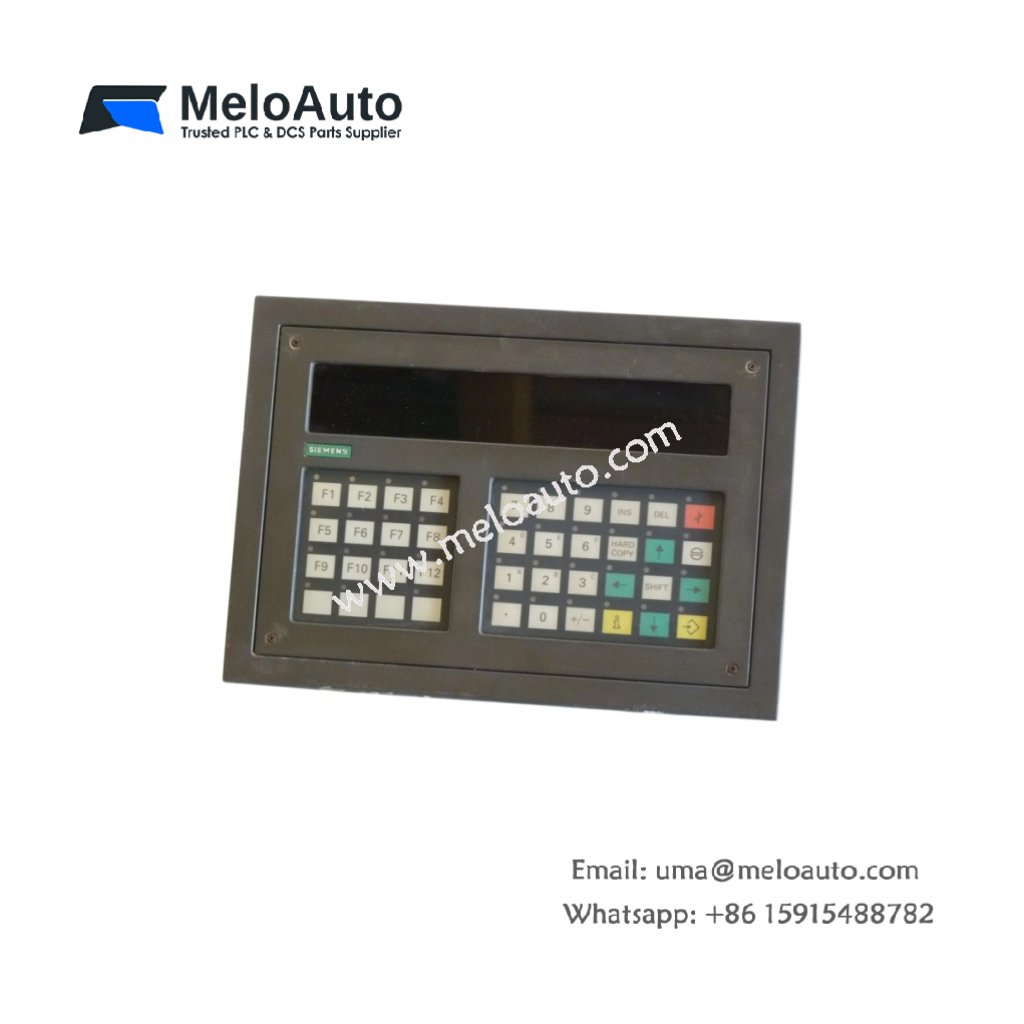

Siemens 6AV3520-1EL00 Operator Panel

User Interface for S5 Machine Control

The Siemens 6AV3520-1EL00 operator panel provides a graphical interface for monitoring and controlling S5 automation systems. This panel allows operators to view process data, acknowledge alarms, and modify setpoints directly on the shop floor. Modern production facilities require intuitive human-machine interfaces, and this unit delivers that functionality effectively.

Display Specifications and Visual Performance

This operator panel features a 5.7-inch STN color display with a resolution of 320 x 240 pixels. The screen supports 256 colors, providing clear differentiation of process states and alarm conditions. An integrated backlight achieves a brightness of 200 cd/m² for good visibility under typical lighting. Furthermore, the display includes an anti-glare coating to reduce reflections from ambient light sources.

Input Methods and User Interaction

This operator panel incorporates a resistive touchscreen for direct parameter entry and menu navigation. Eight function keys provide quick access to frequently used screens and control functions. The panel also includes a numeric keypad for precise value input without touching the display. These input options accommodate various operator preferences and application requirements.

Communication Interfaces and Protocol Support

The Siemens 6AV3520-1EL00 features RS-232, RS-485, and TTY interfaces for flexible connectivity. The panel communicates with S5 CPUs using the proprietary Siemens protocol at speeds up to 187.5 kbps. An additional RS-232 port allows connection to a printer or external data logging device. Furthermore, the panel supports multipoint networking with up to 32 devices on a single bus.

Application Memory and Data Storage

This operator panel stores up to 128 KB of application data, including screen layouts and tag definitions. The internal memory retains configuration data during power loss without requiring a backup battery. Users can store up to 50 screen pages with dynamic text and graphic elements. Moreover, the panel logs alarm events with a time-stamp for troubleshooting purposes.

Installation and Environmental Specifications

You can mount this panel in a standard 212 mm x 156 mm cutout with a panel thickness of 2 to 6 mm. The unit carries an IP65 protection rating on the front, resisting dust and low-pressure water jets. The operating temperature range spans from 0°C to 50°C with a humidity limit of 80% (non-condensing). Always use shielded cables for communication connections to maintain signal integrity.
