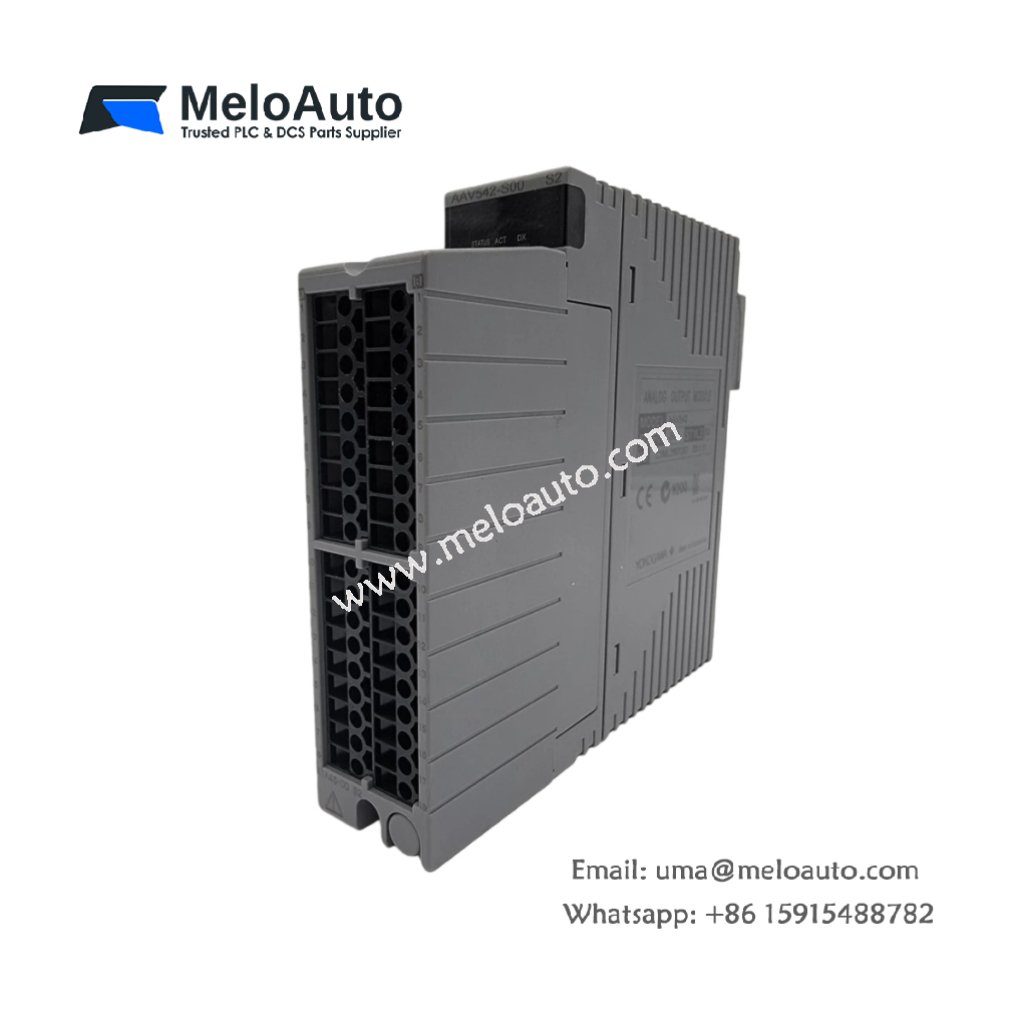

Yokogawa AAV542-S00 Analog Voltage Output Module

The Yokogawa AAV542-S00 is a versatile analog voltage output module designed for precise control in demanding industrial environments. It is compatible with CENTUM VP and ProSafe-RS systems, offering exceptional performance in controlling actuators, valves, and other field devices. This module provides 16 non-isolated output channels and ensures high reliability through a dual-redundant configuration. Designed for fast response and accurate control, the AAV542-S00 supports real-time operations in critical process control applications.

Key Features and Specifications of the AAV542-S00

The Yokogawa AAV542-S00 module is built to handle high-precision output requirements, making it suitable for a wide range of industrial automation tasks. Below are the detailed technical specifications of this module:

Technical Specifications

Specification	Details
Manufacturer	Yokogawa
Model	AAV542-S00
Product Type	Analog Voltage Output Module
Number of Output Channels	16
Output Signal Range	-10 V to +10 V DC
Allowable Load Resistance	10 kΩ or greater
Accuracy	±0.3% of full scale or ±12 mV, whichever is greater
Data Update Period	10 milliseconds
Output Step Response Time	40 milliseconds
Temperature Drift	+0.1% per 10°C or ±10 mV per 10°C
Maximum Current Consumption	450 mA @ 5 V DC
External Connection Options	Pressure clamp terminal, KS cable adapter, MIL connector cable
Dimensions	130 mm x 107.5 mm x 32.8 mm
Weight	0.51 lbs (0.23 kg)

Product Description

The Yokogawa AAV542-S00 module is designed for high-precision analog voltage output in industrial automation systems. With 16 non-isolated output channels, it provides a signal range from -10 V to +10 V DC. This flexibility allows the module to control a wide variety of field devices, such as actuators and valves, with precision.

One of the standout features of the AAV542-S00 is its dual-redundant configuration, which guarantees exceptional reliability, particularly in mission-critical applications. The module can handle demanding process control environments, ensuring high availability and continuous operation.

With a data update period of 10 milliseconds and an output step response time of 40 milliseconds, the module ensures fast and accurate responses to changes in the process. Its temperature drift of ±0.1% per 10°C or ±10 mV per 10°C further improves its reliability, even in fluctuating environmental conditions.

The AAV542-S00 is easy to integrate into industrial systems, offering flexible external connection options, such as pressure clamp terminals, KS cable adapters, and MIL connector cables. It also has a compact form factor with dimensions of 130 mm x 107.5 mm x 32.8 mm and weighs just 0.51 lbs (0.23 kg), making it ideal for space-constrained installations.

Key Benefits of the AAV542-S00

High Accuracy: The module offers ±0.3% accuracy or ±12 mV, whichever is greater, for precise control.
Fast Response: With a 10 ms data update period and a 40 ms output step response, it delivers real-time performance.
Dual-Redundant Configuration: Ensures high reliability in critical industrial applications.
Flexible Connections: Supports a variety of connection options for easy integration into existing systems.
Compact Design: Its small size and lightweight nature allow for easy integration into space-limited environments.

Applications

The Yokogawa AAV542-S00 is perfect for applications in industrial automation, including:

Process Control Systems: Control field devices with high precision and reliability.
Automation and Monitoring: Seamlessly integrates into CENTUM VP and ProSafe-RS systems for efficient monitoring and control.
Critical Operations: Dual-redundant configuration ensures continuous, reliable operation in mission-critical environments.
Industrial Actuators and Valves: Control actuators, valves, and other devices with high-accuracy voltage signals.
