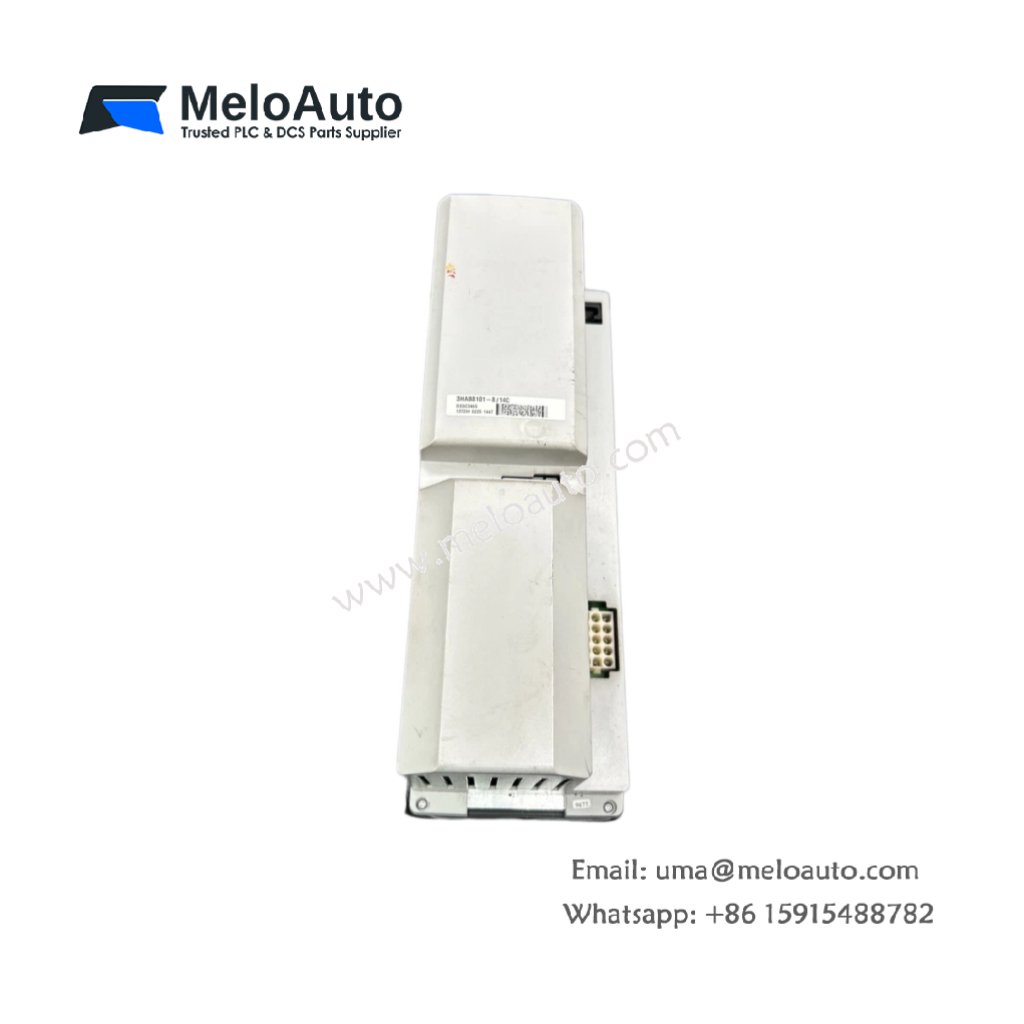

ABB 3HAB8101-8/14C Servo Drive | 14A Robot Axis Drive

This drive controls servo motor position and torque for ABB robots. The ABB 3HAB8101-8/14C provides precise motion control for industrial automation applications. It measures 300 mm in width and 200 mm in height. This unit weighs approximately 2.8 kg for cabinet mounting.

Technical Specifications Table

Parameter	Value
Product Model	ABB 3HAB8101-8/14C
Brand	ABB
Category	Servo Drive / Robot Drive Unit
Compatible Series	ABB Robotics (IRC series)
Number of Axes	1
Input Voltage	200-480 V AC, 3-phase
Input Frequency	50/60 Hz
Rated Output Current	14 A RMS
Peak Output Current	28 A (for 2 seconds)
Control Method	Digital PWM with vector control
Dimensions (W x H x D)	300 mm x 200 mm x 180 mm
Weight	2.8 kg
Communication Interface	1 x CAN bus (ABB proprietary)
Encoder Interface	1 x resolver or absolute encoder
Control Inputs	8 x optically isolated (24 V DC)
Internal Components	1 x IGBT module, 1 x DSP, 3 x current sensors
Energy Storage	3 x 3300 µF DC bus capacitors (total 9900 µF)
Regeneration	Built-in resistor (30 Ω, 150 W)
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature
LED Indicators	5 x status (Power, Run, Fault, Comms, Enable)
Operating Temperature	0°C to 50°C

Internal Design and Servo Control

This servo drive uses a high-power IGBT module for motor control. A DSP executes vector control algorithms at 8 kHz switching frequency. The ABB 3HAB8101-8/14C accepts position and torque commands via CAN bus. Three current sensors provide real-time feedback for precise torque regulation. Three 3300 µF capacitors store energy for peak torque demands. Consequently, this drive delivers smooth motion for single-axis robot applications.

Installation and Wiring Guide

First, mount this drive vertically inside a ventilated control cabinet. Next, connect 3-phase AC power to the L1, L2, and L3 terminals. Then, wire the servo motor cables to U, V, and W output terminals. Connect the encoder or resolver feedback cable to the appropriate port. Use shielded cables for all feedback and control signal wiring. The drive requires at least 150 mm clearance for proper air circulation. Five LED indicators show power, run, fault, comms, and enable status. This servo drive works with ABB robots and compatible servo motors. Always install an external circuit breaker and line filter for overcurrent protection.
