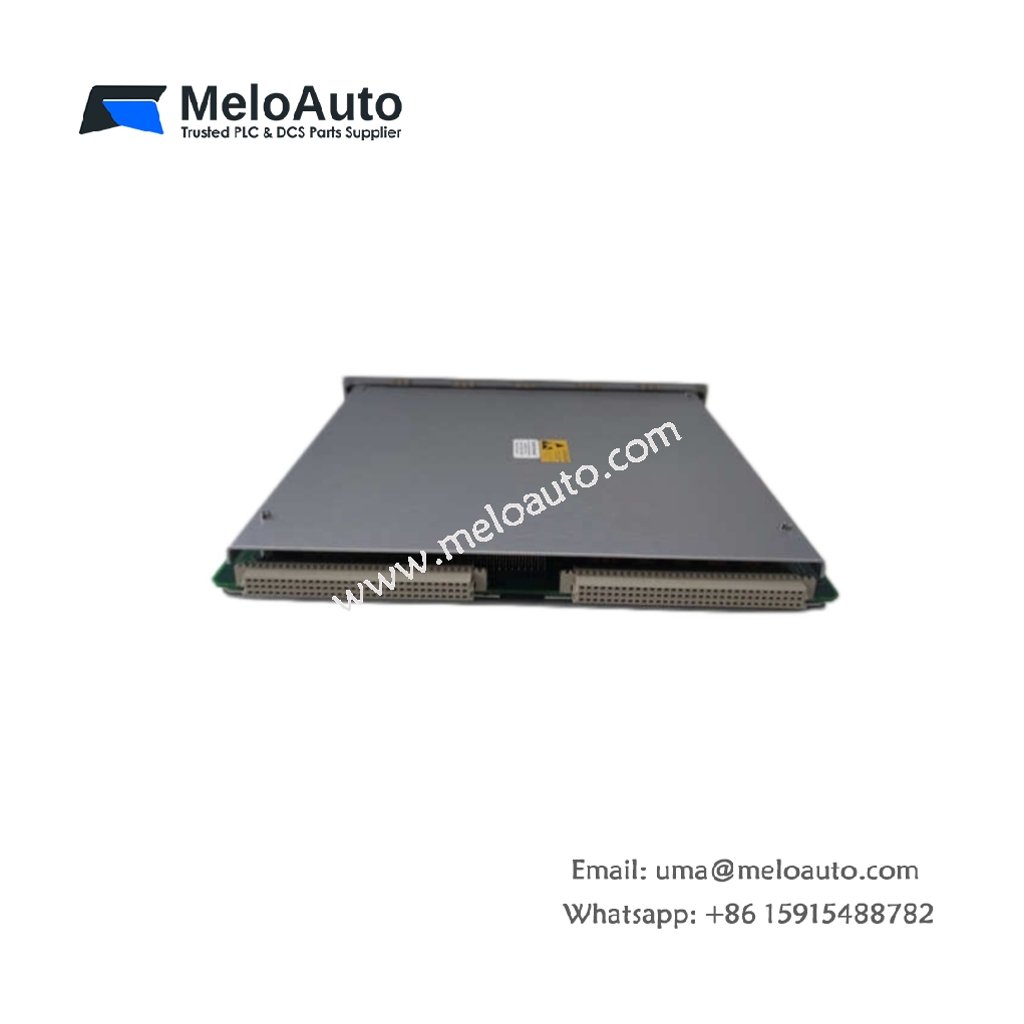

Bently Nevada 3500/92 136188-02 Communication Gateway Module for System Integration

Seamless Data Exchange and Protocol Conversion

This communication gateway module enables seamless data exchange between 3500 monitoring systems and plant networks. It converts proprietary protocols into standard communication formats for integration. The Bently Nevada 3500/92 136188-02 supports Modbus RTU and Modbus TCP/IP protocols for versatile connectivity. It provides both serial and Ethernet interfaces for flexible network integration. The module handles data requests from multiple client devices simultaneously. It performs continuous diagnostics to ensure reliable communication link status.

Physical Dimensions and Module Construction

The unit measures 265 mm in height, 25 mm in width, and 305 mm in depth. It weighs approximately 0.85 kg with all connectors and hardware included. The 3500/92 136188-02 inserts directly into the 3500 system rack. Its compact single-width format saves valuable rack space for monitor modules. This modular design enables easy installation and future system expansion.

Interface Connectivity and Communication Capabilities

A front-facing RJ45 port provides Ethernet connectivity for Modbus TCP/IP communication. The Bently Nevada 3500/92 136188-02 includes a 9-pin D-sub serial port for Modbus RTU. It communicates with the monitor modules via the proprietary backplane bus. The module supports configurable IP addressing and communication parameters. LED indicators display power, network activity, and status conditions clearly.

Internal Architecture and Energy Storage Elements

The PCB contains a communication processor, network interface circuits, and memory modules. The 3500/92 136188-02 uses a 220 µF capacitor for transient energy storage. It stores configuration data and communication parameters in non-volatile memory. The module includes isolation transformers for network interface protection. A hardware watchdog monitors operation and triggers automatic reset functions.

Recommended Installation and Configuration Practices

Insert the Bently Nevada 3500/92 136188-02 securely into an available slot in the rack. Configure network parameters using the dedicated configuration software. Set the IP address and communication protocol according to plant requirements. Test data exchange with the host system before placing into operation. Verify that alarm and event data transfers correctly to the monitoring software. Schedule periodic firmware updates and communication log reviews.
