Reliable Chassis for Vibration and Position Monitoring Systems

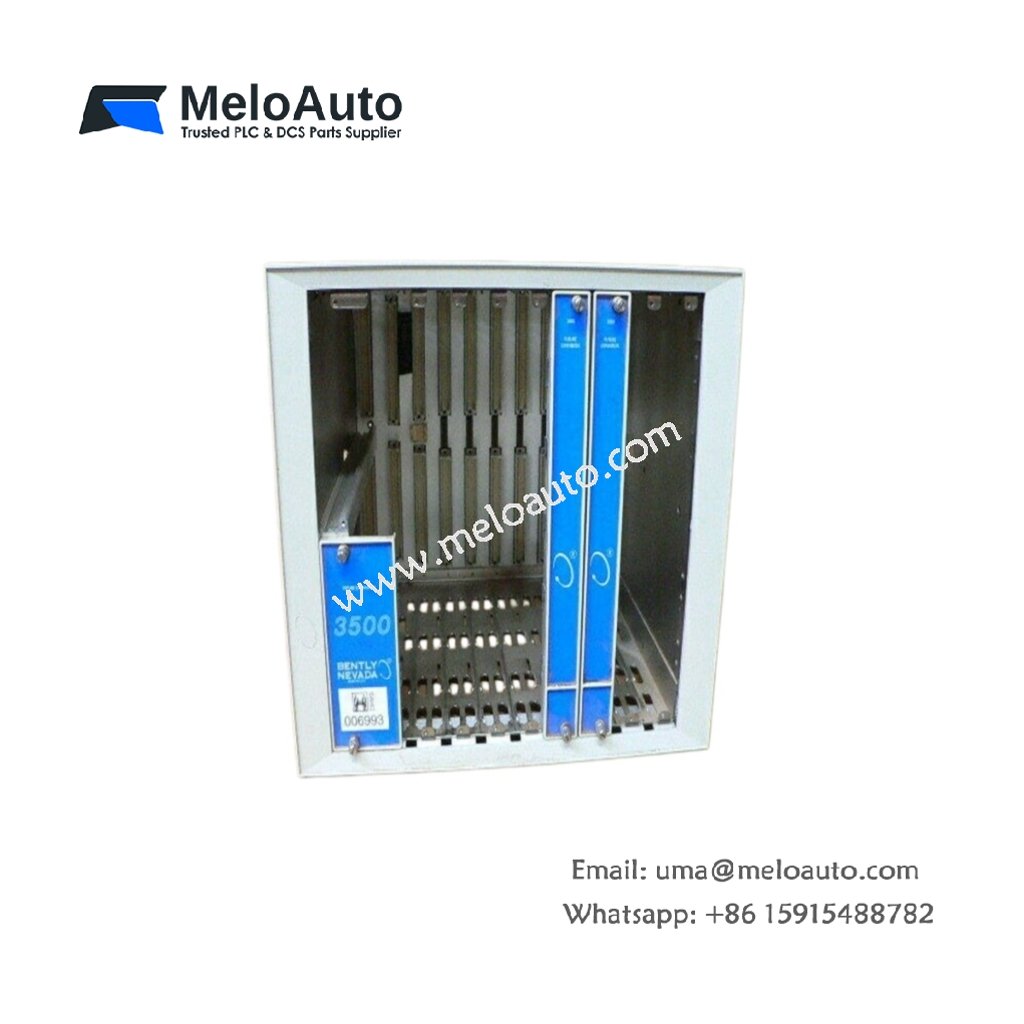

This system rack provides a rugged foundation for Bently Nevada 3500 series monitoring systems. It accommodates multiple monitor modules for comprehensive machinery protection. The Bently Nevada 3500/05-02-04-00-00-01 features a 19-inch rack design with 14 module slots. It includes a built-in power supply slot for system power distribution. The rack supports hot-swappable modules for uninterrupted system operation. It provides a robust chassis for demanding industrial environments.
Physical Dimensions and Rack Construction
The unit measures 483 mm in width, 265 mm in height, and 305 mm in depth. It weighs approximately 7.0 kg with all mounting hardware and backplane included. The 3500/05-02-04-00-00-01 mounts into a standard 19-inch equipment cabinet. Its heavy-gauge steel construction ensures excellent mechanical stability. This durable design withstands vibration and shock in machinery monitoring applications.
Interface Connectivity and Power Distribution
A rear-mounted terminal block provides AC mains input connections for the internal power supply. The Bently Nevada 3500/05-02-04-00-00-01 distributes DC power to all installed modules via the backplane. It features a communication interface for system configuration and data retrieval. The rack includes LED indicators for power and system status monitoring. A cooling fan assembly maintains optimal temperatures for all modules.
Internal Architecture and Energy Storage Components
The backplane PCB contains 14 module connectors with dedicated power and signal routing. The includes a 10,000 µF capacitor bank for energy storage during interruptions. It provides power regulation and distribution circuits for stable module operation. The rack incorporates overcurrent protection devices for each module slot. Status relay outputs provide remote alarm notification capabilities.
| Parameter | Specification |
|---|---|
| Model | 3500/05-02-04-00-00-01 |
| Type | System Rack |
| Module Slots | 14 |
| Rack Size | 19-inch standard |
| Power Supply Slot | Dedicated, built-in |
| Input Voltage | 85–264 V AC, 47–63 Hz |
| Backplane Bus | 3500 proprietary |
| Hot-Swap Support | Yes |
| Dimensions (W×H×D) | 483 × 265 × 305 mm |
| Weight | 7.0 kg |
| Operating Temperature | 0 to +65 °C |
| Storage Temperature | –40 to +85 °C |
| Energy Storage | 10,000 µF capacitor bank |
| Protection | Overcurrent per slot |
| Alarm Outputs | Status relay contacts |
| Communication Interface | Proprietary bus |
Recommended Installation Practices
Mount the Bently Nevada securely in a 19-inch cabinet with adequate clearance. Ensure proper grounding of the rack chassis to prevent electrical noise. Install monitor modules starting from the leftmost slot for optimal configuration. Verify all modules seat correctly before applying power to the rack. Test system communication with the configuration software after installation. Schedule regular filter cleaning and fan inspection for reliable cooling.
