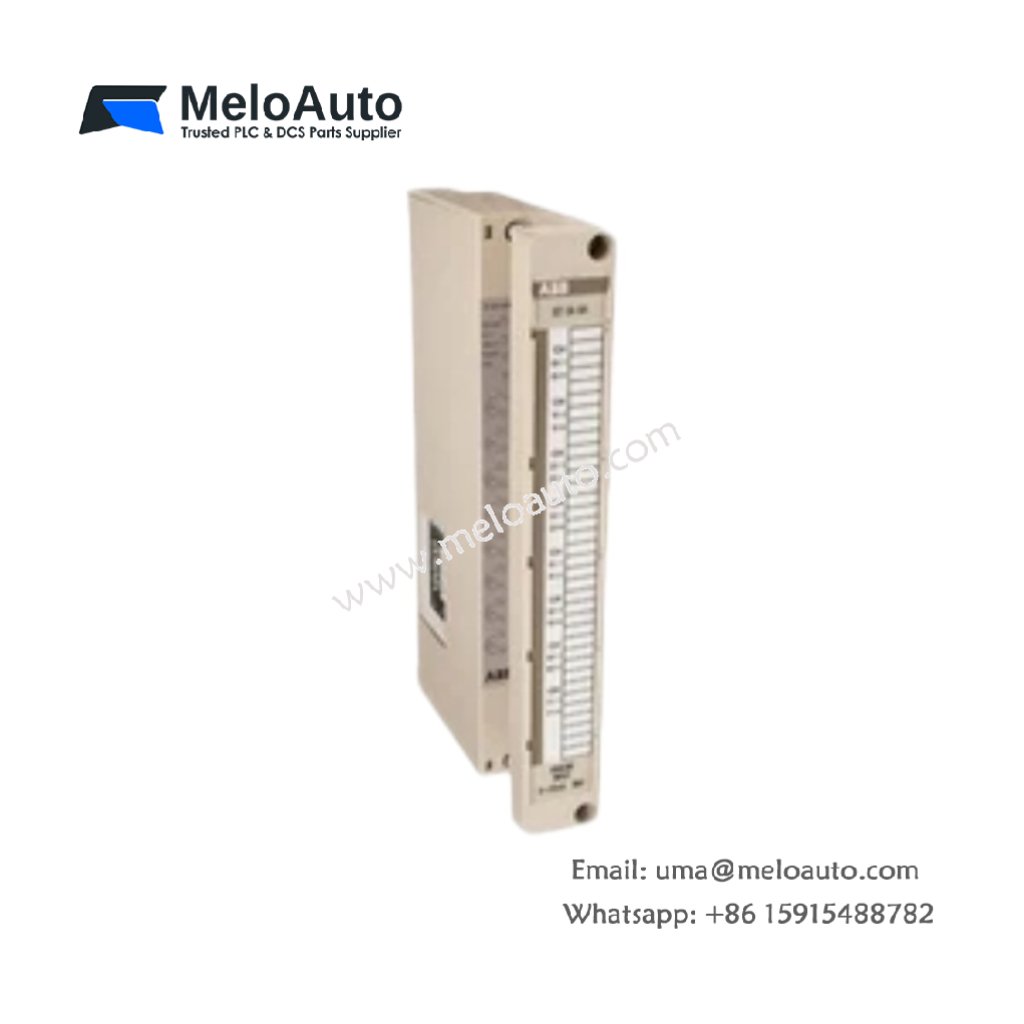

ABB 07 EA 65 R1 Analog Input Module

Technical Specifications and Input Features

The ABB 07 EA 65 R1 analog input module belongs to the Procontic T200 product family and provides high-precision signal acquisition for industrial automation systems. This module features 16 analog input channels with a resolution of 11 bits plus sign, ensuring accurate measurement of process variables . It supports standard 0-20mA and 4-20mA current signals, as well as 0-10V and ±10V voltage signals . The module’s dimensions measure approximately 20.4 cm x 6.8 cm x 4.5 cm, and it weighs about 0.32 kg . It carries the alternative part number GJV3074366R1 .

Functional Capabilities and Signal Processing

The 07 EA 65 R1 module actively converts analog field signals into digital values for the Procontic T200 CPU. It provides 16 independent channels with a conversion time of approximately 5 ms . The module achieves measurement accuracy of ≤ ±0.5% and offers common mode rejection of 80 dB, ensuring reliable operation in electrically noisy industrial environments . Red LEDs on the front panel indicate the status of each channel, simplifying diagnostics and maintenance . The module obtains its power directly through the Procontic T200 backplane bus.

Application Scenarios and System Integration

This analog input module suits industrial applications requiring high-density analog signal acquisition. It integrates seamlessly into Procontic T200 rack systems, working alongside central units 07ZE60, 07ZE61, 07ZE62, and 07ZE63 . Typical applications include monitoring temperature, pressure, and flow transmitters in process plants . The ABB 07 EA 65 R1 also serves in manufacturing facilities where process variables require continuous monitoring. Many facilities continue to rely on this legacy module to maintain their existing Procontic T200 automation infrastructure.
