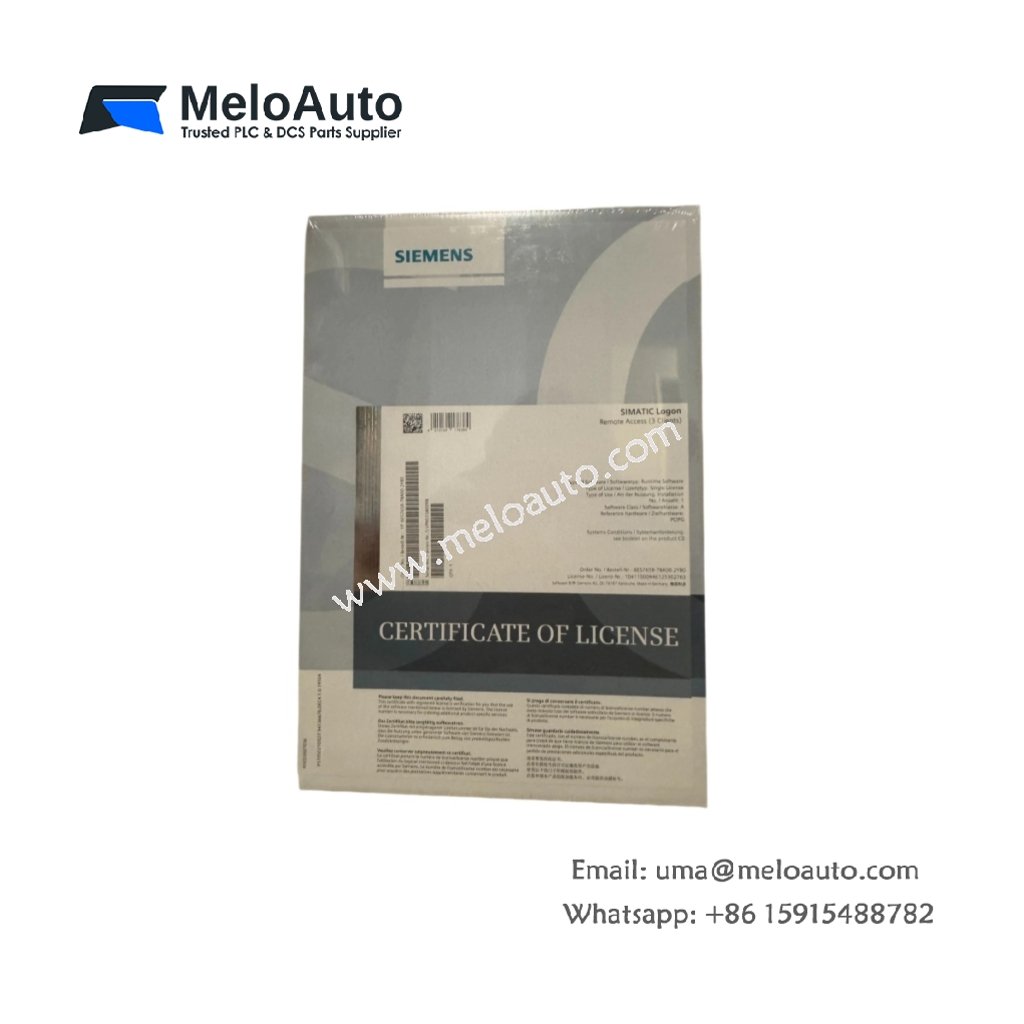

Siemens 6ES7658-3NX18-2YB5 SIMATIC PDM Extended V8.1

Comprehensive Device Management for Process Automation

This extended software version provides advanced configuration and diagnostic capabilities for field devices. It manages intelligent instruments across PROFIBUS, PROFINET, and HART networks. Many plants rely on this tool for centralized device parameterization and maintenance. The software significantly reduces engineering time and commissioning effort.

Technical Specifications

Parameter	Specification
Model	6ES7658-3NX18-2YB5
Version	V8.1 (Extended)
Delivery Type	DVD-ROM with license key
Supported Operating Systems	Windows 7, Windows 8.1, Windows 10, Windows Server 2012/2016
System Requirements	2 GHz processor, 4 GB RAM, 20 GB free HDD space
Supported Networks	PROFIBUS DP/PA, PROFINET, HART, Modbus
Device Libraries	Over 4,000 device descriptions (GSD, EDD, FDI)
Maximum Devices	99,999 devices per project
Communication Drivers	Integrated for Siemens CPs and third-party interfaces
Languages	English, German, French, Italian, Spanish, Chinese
Diagnostic Capabilities	Online device status, alarm logging, signal trending
Import/Export	Excel, CSV, XML, Device DTMs
Certification	CE, UL, ATEX (device management only)

Extensive Device Library and Protocol Support

This software includes libraries for over 4,000 instruments from multiple manufacturers. It supports PROFIBUS DP and PA for distributed peripherals. PROFINET and HART integration covers modern and legacy devices. Modbus connectivity enables communication with third-party equipment and RTUs.

Expanded Features of the Extended Version

The extended version adds advanced diagnostic and maintenance capabilities. It provides detailed device condition monitoring and predictive maintenance indicators. Signal trending and logging support troubleshooting and root cause analysis. These features improve plant availability and reduce unplanned downtime.

System Requirements and Installation

This software requires a PC with a 2 GHz processor and 4 GB RAM. The installation needs 20 GB of free hard disk space. It runs on Windows 7 through Windows 10, plus Windows Server 2012/2016. Users can install the DVD-ROM on either engineering workstations or servers.

Device Integration and Communication Drivers

The software incorporates communication drivers for Siemens communication processors. It handles third-party interface hardware through standard protocols. Users can connect to multiple networks simultaneously for comprehensive coverage. This integration allows centralized device management across the entire plant.

Configuration Tools and Engineering Workflow

Engineers can parameterize devices offline or online with live verification. The software checks parameter consistency before downloading to prevent errors. Device replacement functions simplify maintenance and reduce commissioning time. Users can manage device modifications and version control effectively.

Import and Export Capabilities

The software supports data exchange with Excel, CSV, and XML formats. Users can import device lists and parameters from engineering documents. Export functions generate documentation for maintenance and regulatory records. This interoperability streamlines integration with existing workflows.

Compliance and Certification

The 6ES7658-3NX18-2YB5 meets CE, UL, and ATEX certification standards for process applications. These certifications apply to the device management functions. Each license includes access to software updates and technical support.
