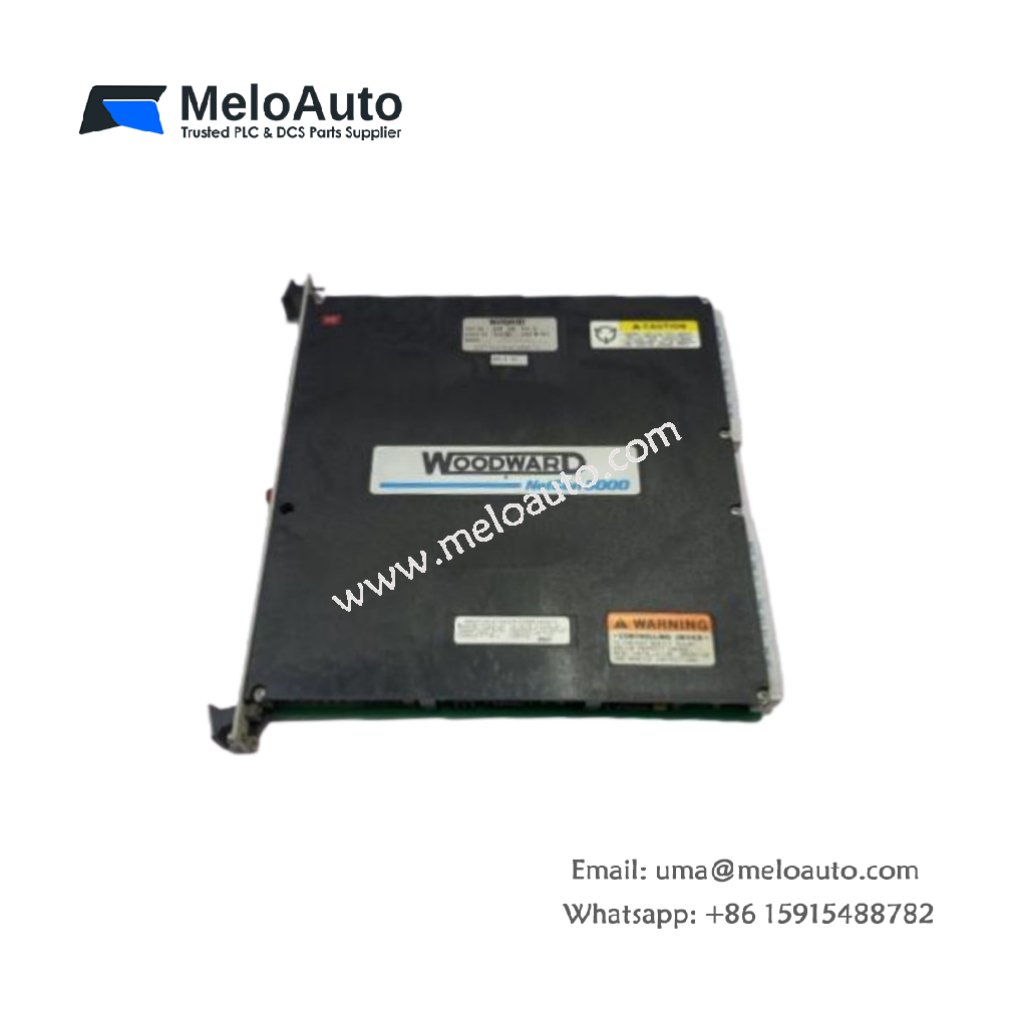

WOODWARD 5464-210 Actuator Driver Module

Overview

The WOODWARD 5464-210 Actuator Driver Module is engineered for superior performance in industrial environments. It is designed to control a variety of actuators, ensuring precise and reliable operation. This module’s robust, compact construction makes it ideal for harsh environments, while its customizable features enhance system flexibility and efficiency.

Key Features

• Dual-Channel Design: The WOODWARD 5464-210 controls two independent actuators simultaneously, enabling flexibility in system design and operation.
• High Output Current: Each channel supports up to 5 amps of output current, making it capable of controlling actuators with higher power requirements.
• Isolated Inputs: The module provides isolated inputs, protecting against ground faults and ensuring safe and reliable operation in demanding industrial conditions.
• Configurable Input and Output Ranges: It supports multiple signal types, including 0-10 VDC, 4-20 mA, and +10 VDC inputs, as well as 0-10 VDC, 4-20 mA, and 0-5 VDC outputs, offering versatility in application.
• On-Board Diagnostics: Built-in diagnostics allow for continuous monitoring of module health, helping to proactively address potential issues and minimize downtime.
• Compact and Rugged Design: The WOODWARD 5464-210 is designed to withstand extreme environments. Its compact size enhances installation flexibility, while its rugged construction ensures durability and long-lasting performance.

Applications

The WOODWARD 5464-210 is ideal for a range of industrial applications where precise control and reliability are critical. These include:

• Valve Control: The module enables accurate positioning and control of valves in industrial processes, ensuring smooth operation.
• Damper Control: It regulates airflow in HVAC systems and industrial ventilation, optimizing energy use and maintaining system balance.
• Pump Control: This module is used for managing pump operations in fluid handling applications, ensuring efficiency and reliability.
• Motor Control: The WOODWARD 5464-210 can also control motor speed and position in various industrial machinery, offering precise control for optimized performance.

Technical Specifications

Why Choose the WOODWARD 5464-210?

• High Current Output: Supports actuators with high power demands, offering versatile control in diverse applications.
• Dual-Channel Flexibility: Control two actuators independently, enhancing the module’s versatility in complex systems.
• Built-In Protection: Isolated inputs ensure safe operation, protecting the system from ground faults and electrical interference.
• Efficient Diagnostics: Real-time monitoring and diagnostics help prevent issues before they affect system performance.
• Compact & Durable: Its compact design ensures ease of installation, while its rugged construction guarantees durability in tough industrial environments.
