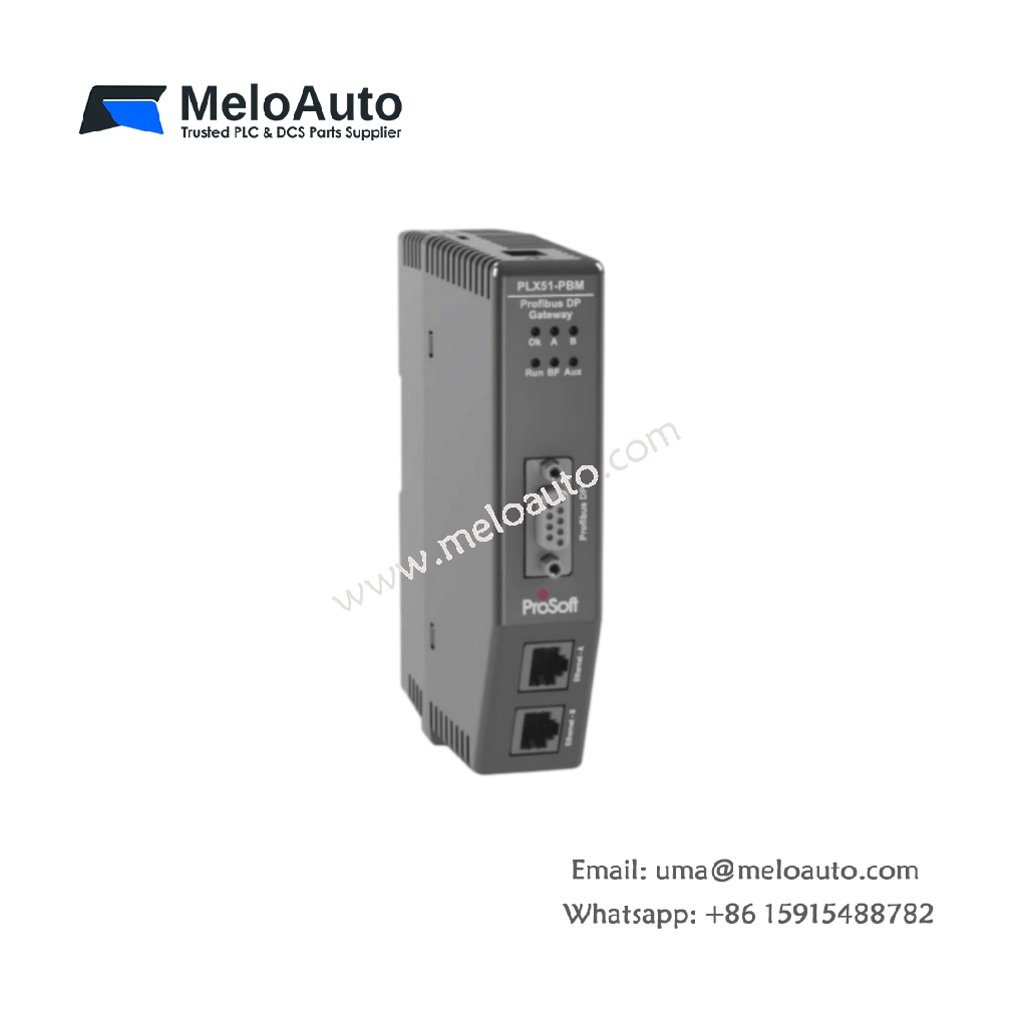

ProSoft PLX51-PBM Modernization Gateway

Legacy Network Upgrades with the PLX51-PBM

The PLX51-PBM connects legacy PROFIBUS devices to modern EtherNet/IP control platforms. This modernization gateway translates process data between the two protocol families. System integrators therefore apply it when upgrading older plant networks without replacing field devices. Its DIN-rail housing mounts inside standard enclosures without extra brackets.

Detailed Technical Parameters

Protocol translation defines the PLX51-PBM, because the gateway maps data between PROFIBUS DP frames and EtherNet/IP tags. The serial port accepts standard PROFIBUS wiring through a DB9 connector. Meanwhile, the dual Ethernet ports support daisy-chain wiring across cabinets. Review the essential specifications in the table below.

Parameter	Specification
Function	PROFIBUS DP to EtherNet/IP modernization gateway
Network protocols	PROFIBUS DP and EtherNet/IP
Ethernet ports	Two switched 10/100 Mbps ports
Dimensions (W × H × D)	90 × 140 × 115 mm
Weight	Approximately 0.8 kg
Interface	PROFIBUS DB9 port plus dual Ethernet ports
Component count	Processor board plus dual network interface stage
Energy storage	Local decoupling capacitor array
Operating temperature	-25 °C to 70 °C

Integration into Control Systems

The PLX51-PBM snaps onto a DIN rail and connects through standard network cables. Commissioning engineers configure data mapping through the setup software. Consequently, legacy field devices return to service quickly after gateway replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Gateway

Many facilities still operate PROFIBUS devices for their proven field reliability. Hence, the PLX51-PBM serves as a dependable spare for keeping legacy links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the dual-port design reduces cabling requirements inside cabinets. This gateway keeps production data flowing and upgrade schedules on track.
