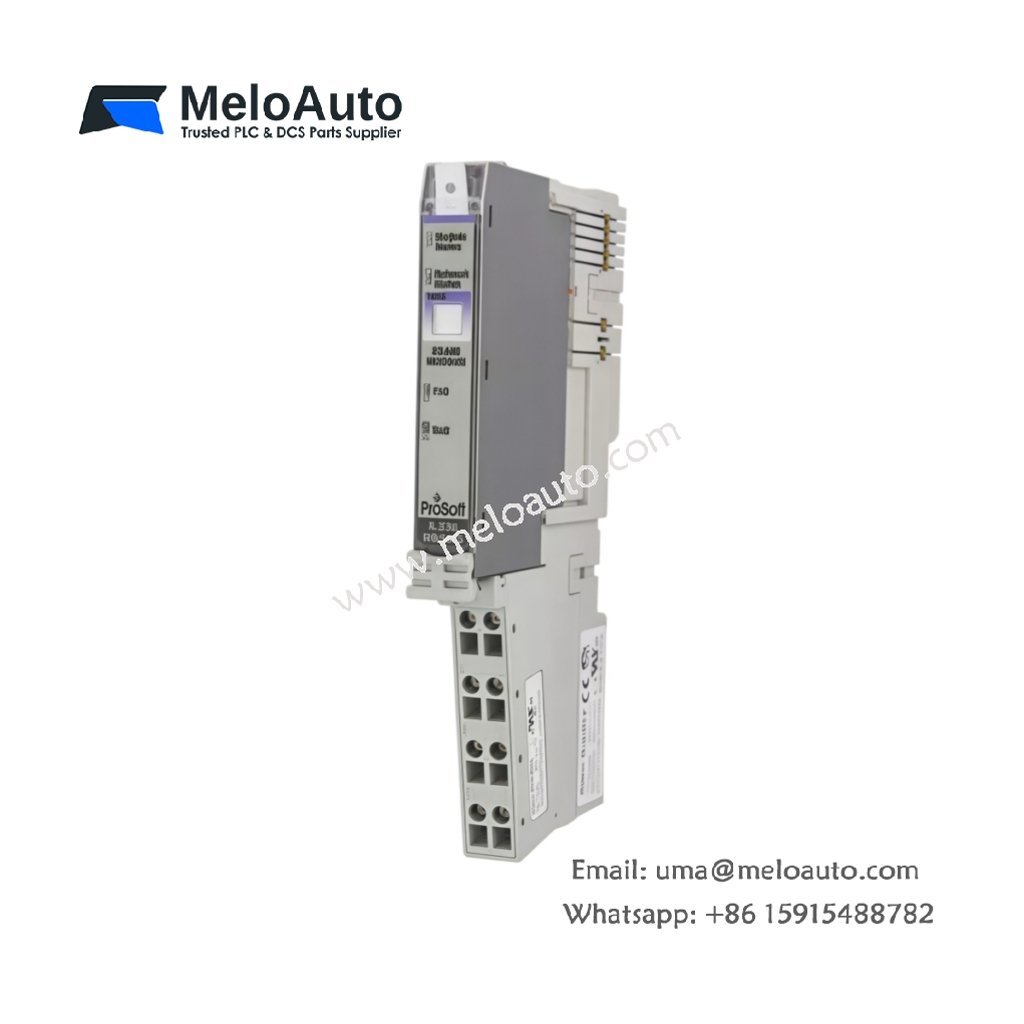

ProSoft ILX34-MBS485 Module | Modbus RTU RS-485

Modbus Serial Links with the ILX34-MBS485

The ILX34-MBS485 adds Modbus RTU serial communication to CompactLogix controllers. This module mounts beside the CPU and handles RS-485 field traffic independently. System integrators therefore apply it when connecting drives, meters, and legacy devices. Its compact sidecar housing clips onto the controller without extra chassis slots.

Detailed Technical Parameters

Serial handling defines the ILX34-MBS485, because the module runs Modbus master and slave services on dedicated firmware. The RS-485 port supports multi-drop wiring across long field runs. Meanwhile, the controller interface exchanges register data through a high-speed parallel link. Review the essential specifications in the table below.

Parameter	Specification
Function	Modbus RTU serial communication for CompactLogix
Network protocols	Modbus RTU master and slave
Serial port	One RS-485 port with terminal connections
Dimensions (W × H × D)	50 × 120 × 100 mm
Weight	Approximately 0.3 kg
Interface	RS-485 terminals plus CompactLogix bus connector
Component count	Communication processor board plus transceiver stage
Energy storage	Local decoupling capacitor array
Operating temperature	0 °C to 60 °C

Integration into Control Systems

The ILX34-MBS485 clips onto the CompactLogix controller and connects through the bus connector. Commissioning engineers wire field devices directly to the RS-485 terminals. Consequently, serial links return to service quickly after module replacement. The device polls slave stations within fixed scan intervals. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Module

Many facilities still operate Modbus devices for their proven field reliability. Hence, the ILX34-MBS485 serves as a dependable spare for keeping serial links online. Its standardized sidecar format simplifies stock management across multiple sites. In addition, the compact design removes the need for extra chassis slots. This module keeps field data flowing and production schedules on track.
