Overview

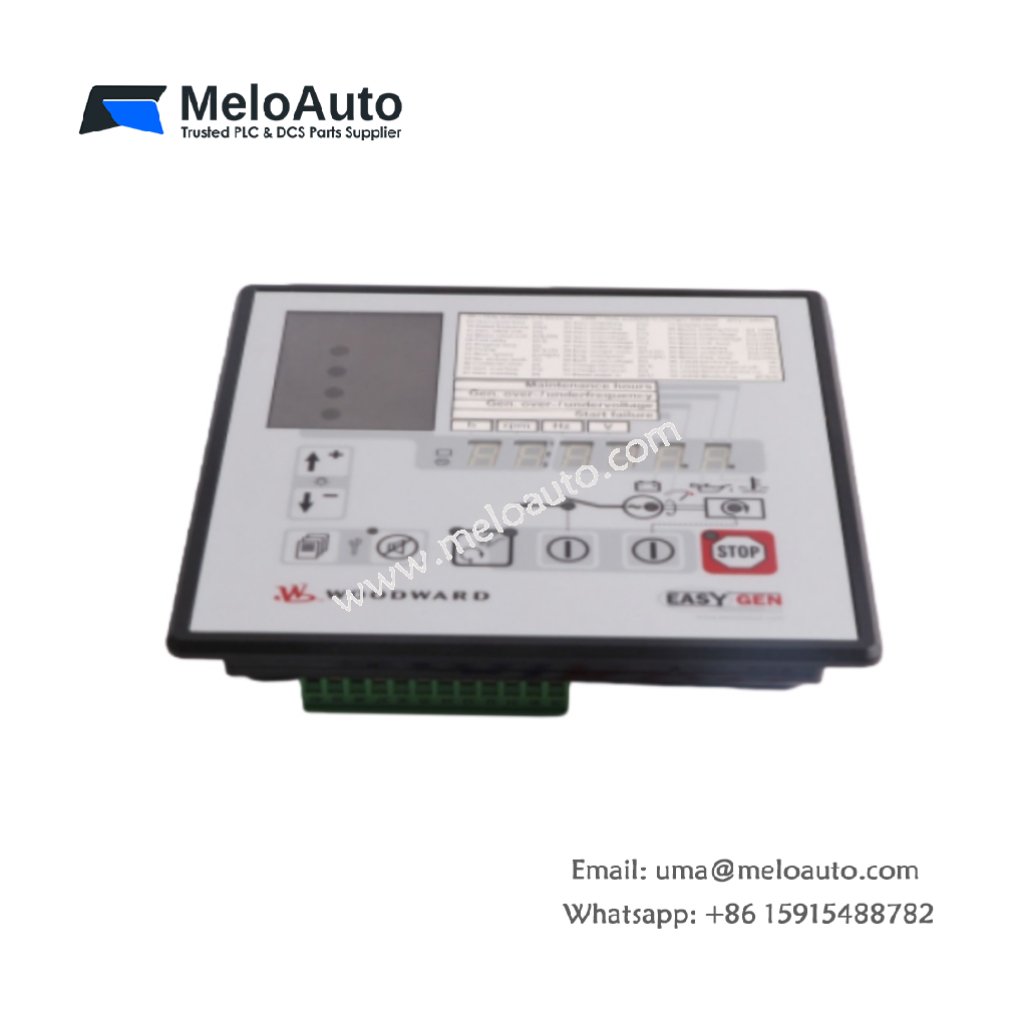

The WOODWARD 8440-1800 EASYGEN-320 Genset Controller is an advanced, high-performance system designed for seamless management of diesel and gas generator sets. Its rugged design, flexible configurations, and comprehensive set of features make it ideal for controlling and protecting various generators in industrial environments.
Key Features
- Start/Stop Sequence Control: Efficiently manages the start and stop process of diesel engines, ensuring smooth operation.
- Pre-glow Control: Integrated pre-glow control optimizes the engine startup, reducing wear and improving performance.
- Real-time Monitoring: Measures critical parameters such as generator voltage, frequency, and speed with accuracy.
- Alarm and Trip Configuration: Allows customizable trip levels, delays, and alarm classes for enhanced system protection.
- Event Logging: Features a 15-entry event logger for tracking system performance and troubleshooting.
- Advanced Display: Equipped with a 6-digit 7-segment LED display for viewing measuring values, counters, alarms, and ECU messages.
- Password Protection: The front panel configuration is password-protected, ensuring secure access to system settings.
- Customizable Visualization: Supports customized display using paper strips for a tailored user interface.
Protection Features
The WOODWARD 8440-1800 EASYGEN-320 includes several critical protection features to safeguard the generator and engine, such as:
- Battery Voltage Protection
- Overspeed Protection (12)
- Over/Undervoltage Protection (59/27)
- Over/Underfrequency Protection (81O/U)
- Charge Alternator Failure Protection
Applications
The EASYGEN-320 Genset Controller is suitable for a wide range of industrial applications, including:
- Generator Control: Effective for managing generator performance and protection.
- Diesel Engine Control: Ideal for diesel-powered systems, providing reliable engine protection and monitoring.
- Industrial Backup Power: Ensures smooth operation and control of standby power systems.
I/O Features
- True RMS Voltage Measurement: Measures 3-phase generator and mains voltage with rated 480 Vac (max. 600 Vac).
- Configurable Inputs: Supports up to 2 configurable discrete inputs.
- Programmable Relays: Includes a maximum of 2 programmable relays for advanced control.
- D+ Input: Monitors the charge alternator input/output.
Compatibility & Configuration
- Flexible Voltage Measurement: Supports multiple generator and mains voltage measurement configurations, including 3-phase and single-phase options.
- Configurable for GCB and MCB Operation: The EASYGEN-320 supports both generator circuit breaker (GCB) and mains circuit breaker (MCB) operations in various models.
- J1939 Visualization: Offers visualization of J1939 messages for enhanced communication with engine control units.
Specifications
| Parameter | Details |
|---|---|
| Part Number | 8440-1800 |
| Manufacturer | WOODWARD |
| Product Type | EASYGEN-320 Genset Controller |
| Dimensions | 15.8 cm x 15.8 cm x 4 cm |
| Weight | 0.38 kg |
| Operating Voltage | 24 VDC |
| I/O Configuration | 3-phase generator and mains true RMS voltage |
| Inputs | Up to 2 configurable discrete inputs |
| Relays | Up to 2 programmable relays |
| Protection (ANSI) | Battery voltage, overspeed, undervoltage, etc. |
| Display | 6-digit 7-segment LED |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 85°C |
Why Choose the WOODWARD 8440-1800 EASYGEN-320 Genset Controller?
- Comprehensive Protection: Safeguards your engine and generator with advanced protection mechanisms.
- Customizable Features: Flexible configuration options to meet the specific needs of your system.
- Real-time Monitoring: Provides constant monitoring of crucial parameters to ensure efficient operation.
- Rugged Design: Built for reliability and durability in harsh industrial environments.
