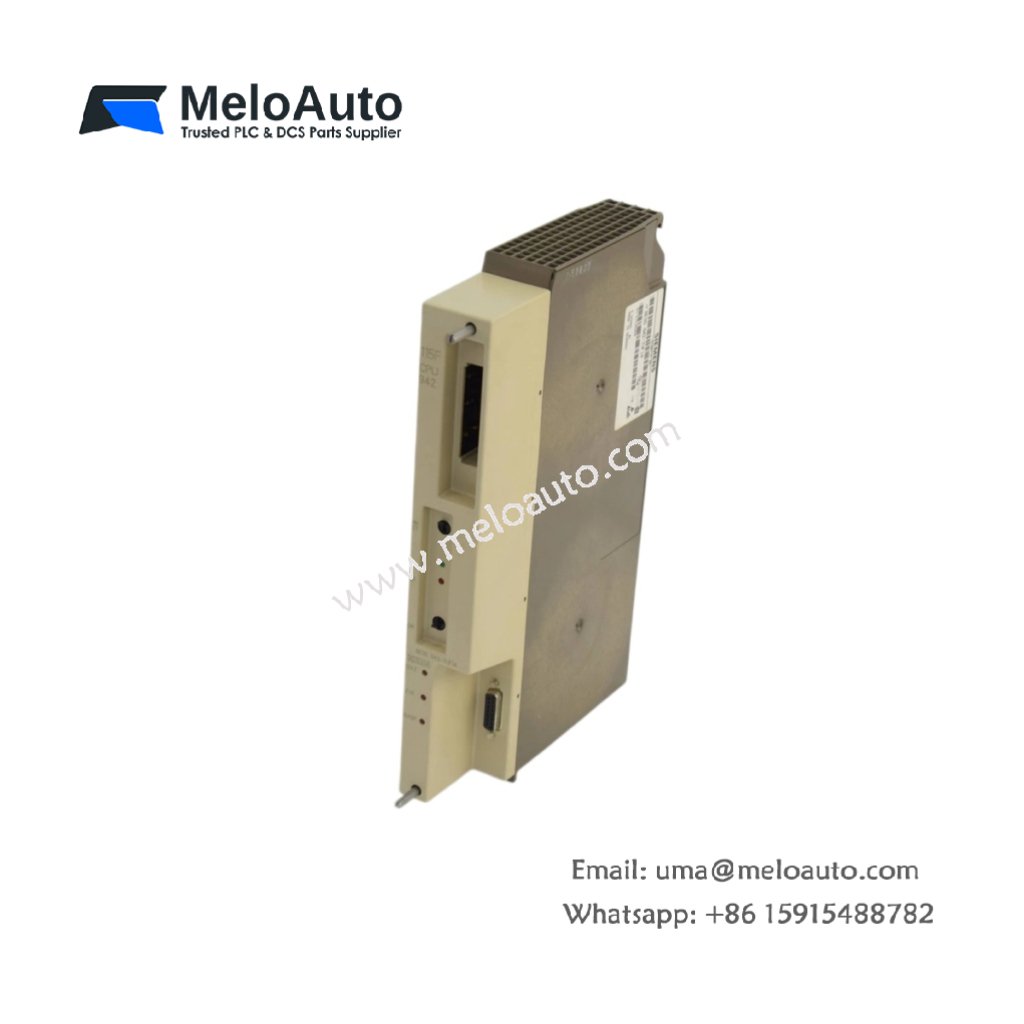

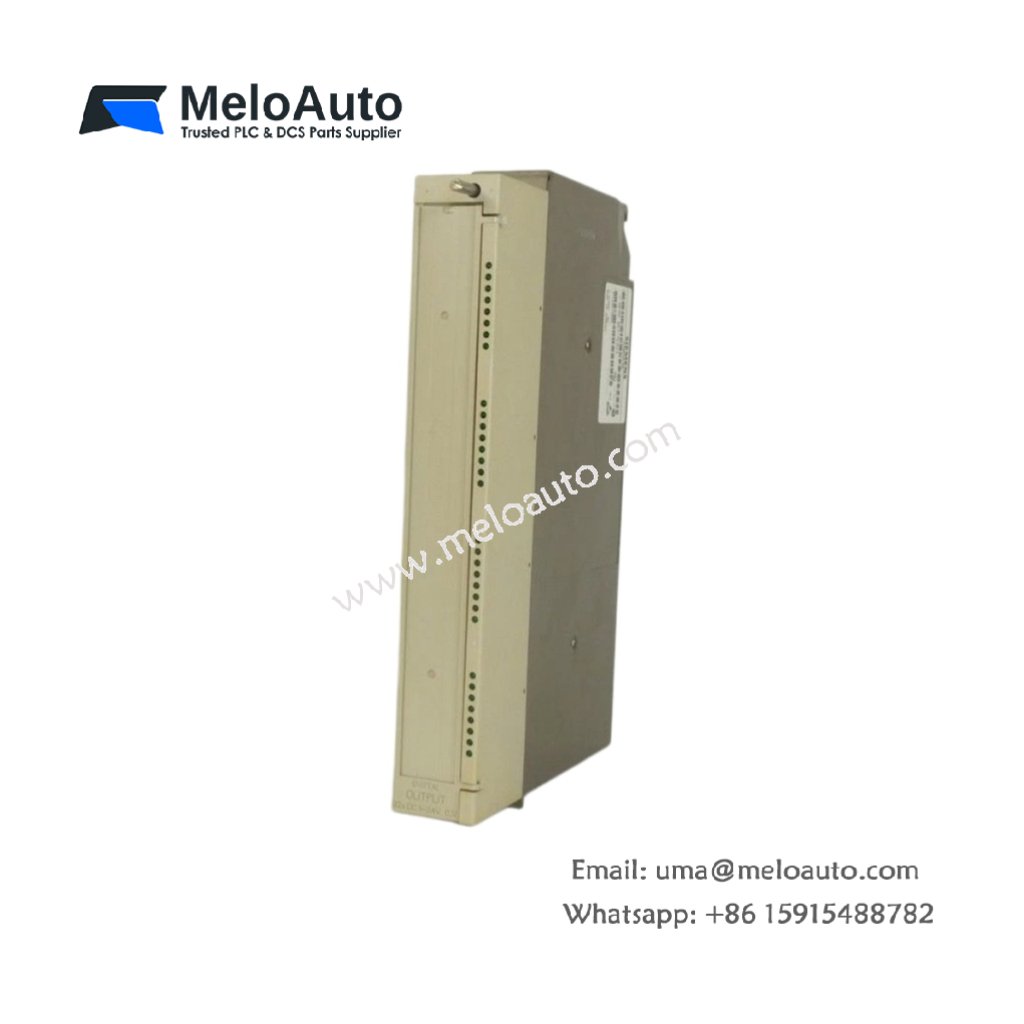

Siemens 6ES5457-7LA11 Digital Output Module

High-Current Actuator Control for S5 Systems

The Siemens 6ES5457-7LA11 digital output module drives high-power actuators in S5-135U and S5-155U automation systems. This module translates logic commands from the CPU into switching actions for heavy-duty field devices. Industrial processes demand robust output stages, and this unit delivers that reliability consistently.

Output Channel Specifications and Electrical Ratings

This digital output module features 16 channels with individual short-circuit protection and thermal monitoring. Each output switches 24 V DC loads up to 1.0 A, with a total current capacity of 16 A across all channels. The module incorporates integrated freewheeling diodes for inductive load suppression. Furthermore, each channel includes an isolated driver stage to prevent cross-channel interference.

Output Protection and Fault Management

The Siemens 6ES5457-7LA11 incorporates comprehensive protection mechanisms for reliable operation. Thermal shutdown activates at 90°C to prevent damage from overloaded channels. Each output features current limiting at 1.4 A to protect the module and connected equipment. The module also includes transient voltage suppression to absorb inductive kickback from relays.

Diagnostic Capabilities and Status Indication

Individual LED indicators on the front panel show the status of each output channel. A common fault relay activates upon overcurrent, overtemperature, or short-circuit events. The module also provides diagnostic feedback to the CPU for each channel. These diagnostic features simplify troubleshooting and reduce maintenance time.

Mechanical Design and Installation Details

This digital output module features a 50 mm housing that fits standard S5-135U and S5-155U rack slots. The unit weighs approximately 0.45 kilograms, allowing straightforward installation and removal. A 32-pin front connector provides access to all output terminals and the common power supply. Screw-type terminals accept wires from 0.5 mm² to 2.5 mm² for secure field connections.

Application Guidelines and System Integration

You can place this output module in any slot of the S5-135U or S5-155U central or expansion rack. The module maps its 16 outputs to consecutive addresses in the CPU’s I/O image table. For inductive loads, connect external suppression diodes across the field devices. Always connect the external 24 V DC supply to the module’s power terminals. The module operates reliably from 0°C to 60°C with proper cabinet ventilation.
