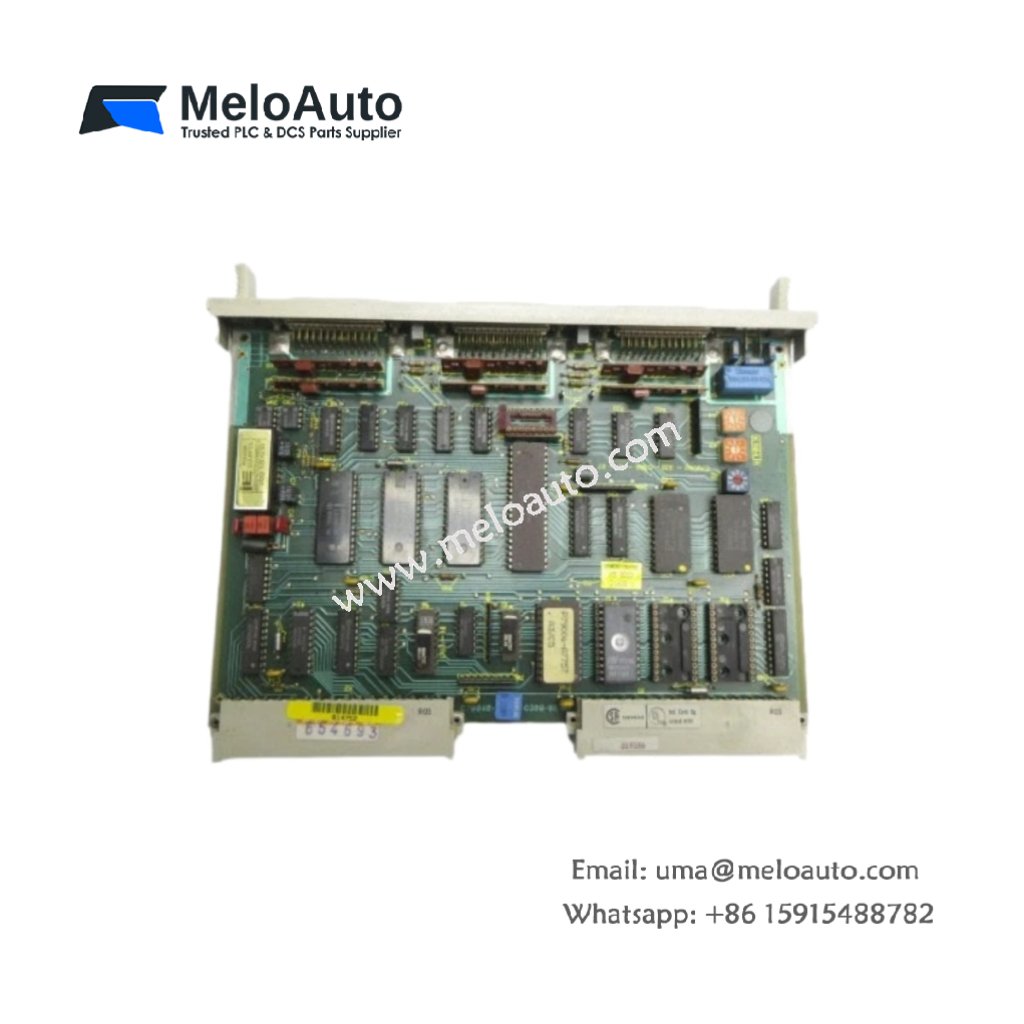

The Siemens 6ES5512-5BC21 adds extra communication ports to your S5 system. This expansion board plugs directly into a base interface module. It effectively doubles your connectivity options for field devices.
Technical specifications of Siemens 6ES5512-5BC21
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | Siemens 6ES5512-5BC21 |
| Product Family | SIMATIC S5 |
| Category | Interface Module Expansion Board |
| Compatible With | IM 308, IM 311, IM 312 base modules |
| Number of Ports | 2 x RS-485 (additional) |
| Protocol Support | SINEC L1, SINEC H1 |
| Power Source | From base module (no external supply) |
| Current Draw | 80 mA typical |
| Components on Board | 1 PCB, 2 connectors, 4 ICs |
| Dimensions (L x W x H) | Approx. 10 cm x 8 cm x 2 cm |
| Weight | Approx. 0.2 kg (200 grams) |
| Energy Storage | None (no battery or capacitor) |
Detailed Technical Analysis
The Siemens attaches to a compatible base interface module. This expansion board adds two extra RS-485 communication ports. Therefore, you can connect more field devices without changing the main CPU. The board contains four integrated circuits and two physical connectors.
Now let us examine its power requirements. The Siemens 6ES5512-5BC21 draws all its energy from the base module. It consumes only 80 milliamps of current at 24V DC. Consequently, the board does not need any separate power wiring. This design simplifies installation and reduces cabinet clutter.
The expansion board fits neatly into a single slot on the base module. Unlike larger communication processors, this unit has no onboard energy storage. You will never replace a battery or capacitor on this device. Its compact dimensions (10 x 8 x 2 cm) keep your rack layout tidy.
Installation and Compatibility Notes
You must mount this board onto a compatible base interface module first. The Siemens 6ES5512-5BC21 works with IM 308, IM 311, and IM 312 units. Simply align the connectors and press firmly into place. The base module then recognizes the expansion automatically.
For optimal performance, use shielded twisted-pair cables for RS-485 connections. The Siemens 6ES5512-5BC21 supports both SINEC L1 and SINEC H1 protocols. You can configure each port independently for different network types. This flexibility suits mixed-vendor automation environments.
Practical Applications
Engineers use this expansion board to increase network capacity. For example, you can connect one port to a programming terminal. Then use the second port for a remote I/O link. The Siemens 6ES5512-5BC21 eliminates the need for a second interface module.
Summary of Siemens 6ES5512-5BC21 Features
To conclude, the Siemens 6ES5512-5BC21 adds two RS-485 ports to your S5 system. It weighs only 0.2 kilograms and requires no external power supply. Choose this expansion board for cost-effective communication upgrades.
