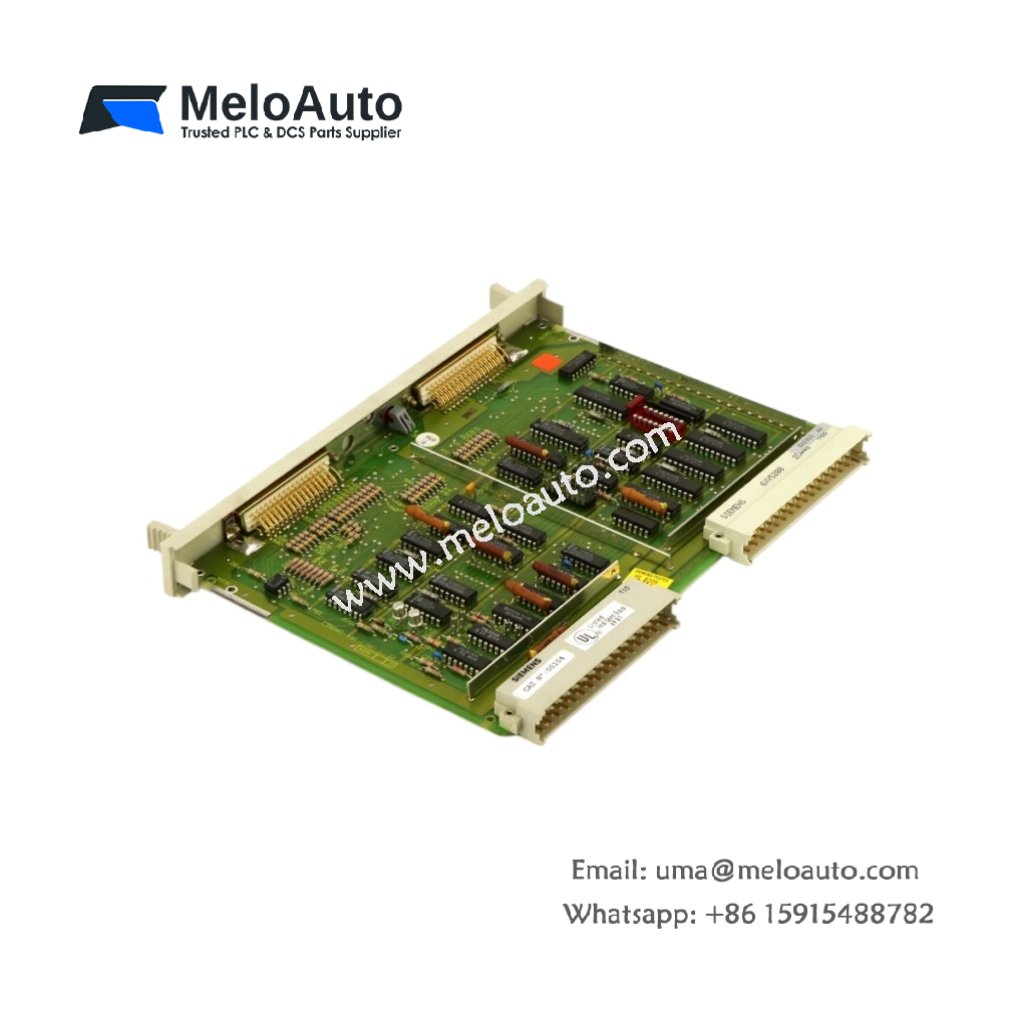

Siemens 6ES5301-5AA13 | Interface Module

The Siemens 6ES5301-5AA13 connects your S5 CPU to remote I/O racks. This interface module handles data exchange between central and expansion units. It serves as a critical backbone component for distributed automation systems.

Technical specifications of Siemens 6ES5301-5AA13

Parameter	Specification
Brand	Siemens
Model	Siemens 6ES5301-5AA13
Product Family	SIMATIC S5
Category	Interface Module (IM 301)
Compatible CPUs	S5-115U, S5-135U, S5-155U
Communication Bus	SINEC L1 / AS511
Power Supply	24V DC (external)
Current Consumption	150 mA typical
Number of Connectors	1 x 15-pin D-sub (RS-485)
Cable Length (max)	100 meters between racks
Dimensions (L x W x H)	Approx. 12 cm x 10 cm x 4 cm
Weight	Approx. 0.3 kg
Energy Storage	None (no battery or capacitor)

Detailed Technical Analysis

The Siemens 6ES5301-5AA13 transfers I/O data between central and expansion racks. It uses the SINEC L1 bus protocol for reliable communication. This module contains no internal energy storage components. Therefore, you never need to replace any batteries or capacitors.

Now let us examine its physical interface. The module features one 15-pin D-sub connector. This port supports RS-485 serial communication over a two-wire connection. You can extend the cable up to 100 meters between racks. Consequently, this capability allows flexible placement of remote I/O stations.

The Siemens 6ES5301-5AA13 draws only 150 mA from the 24V DC supply. This low power consumption reduces heat generation inside your control cabinet. The module fits directly into the S5 rack next to the CPU. It occupies a single slot and requires no additional mounting hardware.

Installation and Wiring Guidelines

You must connect an external 24V DC power source to this interface module. The Siemens 6ES5301-5AA13 does not draw power from the backplane bus. Use shielded twisted-pair cable for the RS-485 connection. This practice minimizes electrical noise interference on long cable runs.

For maximum system reliability, terminate both ends of the bus cable. The Siemens 6ES5301-5AA13 supports up to 32 nodes on one network segment. You can add repeaters to extend beyond the 100-meter limit.

Practical Applications

Engineers use this module for distributed I/O in large factories. For instance, you can place one S5 CPU in a central cabinet. Then connect multiple Siemens 6ES5301-5AA13 modules to remote racks near the machinery. This setup reduces expensive sensor wiring across long distances.

Summary

To conclude, the Siemens 6ES5301-5AA13 links your S5 CPU to remote I/O racks. It offers a 100-meter communication range and weighs only 0.3 kilograms. Choose this interface module for reliable distributed control in legacy systems.
