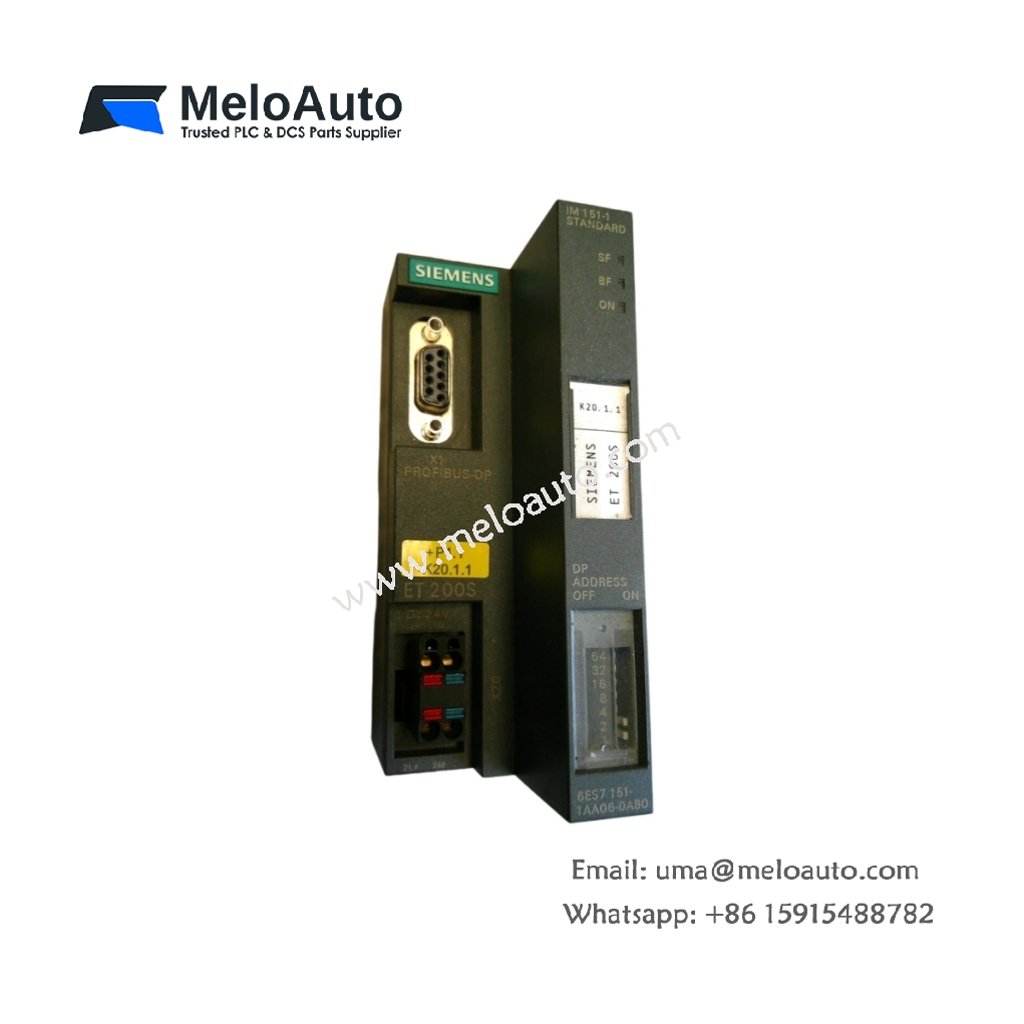

The Siemens 6ES7151-1AA06-0AB0 functions as an interface module (IM) for the SIMATIC DP system. This module connects S7-300 PLCs to PROFIBUS DP networks for distributed I/O communication. The unit provides high-speed data exchange between the master and remote slave stations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Interface module (IM 151-1) |
| Compatibility | SIMATIC DP, S7-300 |
| Transmission Rate | 9.6 kbps – 12 Mbps (auto-detect) |
| PROFIBUS Interface | 1 x RS-485 (9-pin D-sub, female) |
| Bus Connector | 9-pin D-sub (standard PROFIBUS) |
| Max Stations per Network | 32 (without repeater), 126 (with repeater) |
| Max Cable Length | 1.2 km (at 9.6 kbps), 100 m (at 12 Mbps) |
| Dimensions (W x H x D) | 90 x 120 x 40 mm |
| Weight | 0.25 kg |
| Internal Components | 1 x PROFIBUS controller, 2 x optocouplers, 1 x voltage regulator |
| Diagnostic Memory | 128 bytes (fault logging) |
| Bus Connector Type | Push-in (spring contact) |
| LED Indicators | 3 x green (status), 2 x red (error) |
| Power Supply | 24V DC (from backplane) |
| Power Consumption | 24V / 150 mA (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Mounting | DIN rail (35mm) |
| Approvals | CE, UL, CSA, ATEX (Zone 2) |
High-Speed PROFIBUS DP Communication
The Siemens 6ES7151-1AA06-0AB0 supports PROFIBUS transmission rates from 9.6 kbps to 12 Mbps. This wide range ensures compatibility with various network configurations. The module automatically detects the baud rate and adjusts its timing accordingly. Users can connect up to 32 stations per network segment without repeaters.
Robust Isolation for Network Reliability
Optocouplers provide galvanic isolation between the PROFIBUS interface and the module’s logic. This isolation prevents ground loops and protects against electrical transients. Two optocouplers ensure reliable signal transfer during noisy conditions. The module maintains data integrity even in harsh industrial environments.
Comprehensive Diagnostics for Troubleshooting
The module includes 128 bytes of diagnostic memory for fault logging and analysis. Five LEDs provide immediate visual feedback on module and network status. Green LEDs indicate power, bus activity, and communication readiness. Red LEDs alert operators to bus faults or module errors.
Expansion Capability for Distributed Systems
Users can mount this interface module on the same DIN rail as S7-300 modules. The IM 151-1 connects to ET 200S or ET 200M distributed I/O stations. This capability allows flexible system expansion without additional controllers. The module supports both standard and fail-safe slaves for safety applications.
Compact and Lightweight Design
The interface module measures 90 x 120 x 40 mm and weighs only 0.25 kg. This compact form factor saves valuable space in control cabinets. Users can install the module easily on standard DIN rails. The light weight reduces mechanical stress on the mounting system.
Low Power Consumption for Energy Efficiency
The Siemens 6ES7151-1AA06-0AB0 consumes only 150 mA from the 24V DC backplane supply. This low power draw minimizes heat generation and energy costs. The module operates reliably from 0°C to +60°C ambient temperatures. Users can deploy the unit in various industrial environments without thermal concerns.
