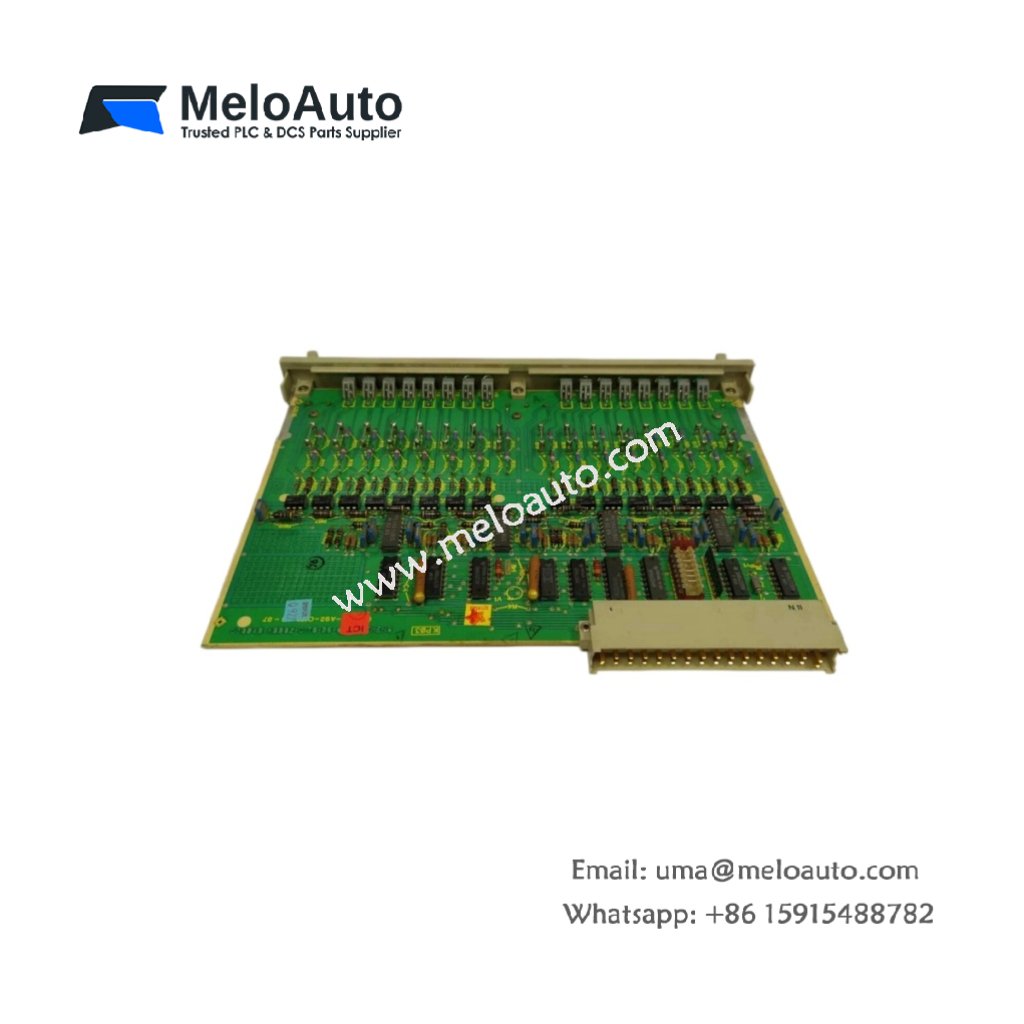

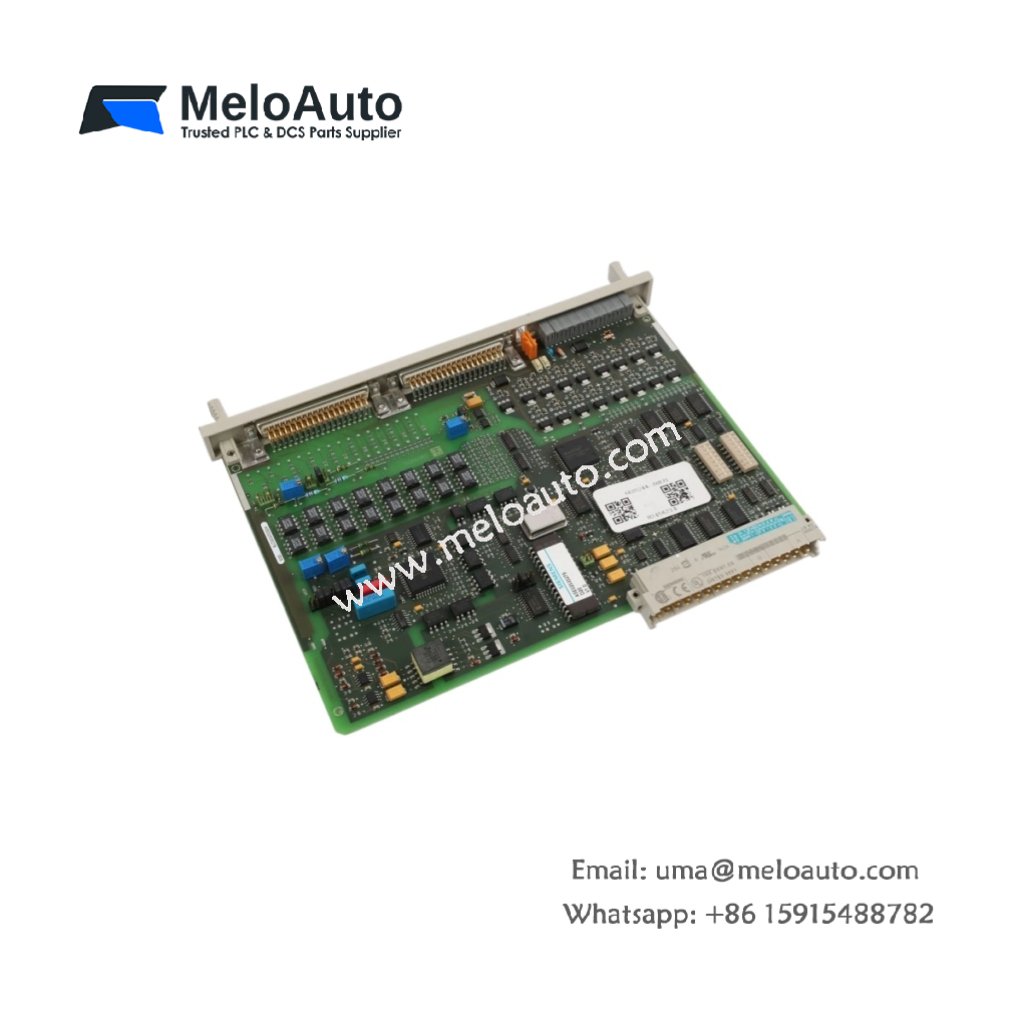

Siemens 6ES5244-3AB31 Temperature Control Module

Precision Thermal Regulation for S5 Systems

The Siemens 6ES5244-3AB31 temperature control module manages thermal processes with high accuracy and reliability. This module provides closed-loop temperature regulation for industrial heating and cooling applications. Manufacturing processes demand precise thermal control, and this unit delivers that performance consistently.

Input and Output Specifications

This temperature control module features four thermocouple inputs and two analog outputs for actuator control. The inputs accept standard thermocouple types J, K, T, and L with cold-junction compensation. Each output delivers 0 to 20 mA or 4 to 20 mA signals for proportional valve or heater control. Furthermore, the module includes two digital outputs for on/off control of contactors.

Parameter	Specification
Model	Siemens 6ES5244-3AB31
Thermocouple Inputs	4 (J, K, T, L types)
Analog Outputs	2 (0–20 mA / 4–20 mA)
Digital Outputs	2 (24 V DC, 0.5 A)
Temperature Accuracy	±0.5°C (over range)
Cold-Junction Compensation	Automatic (internal sensor)
Control Algorithms	PID, two-point, three-point
Sampling Rate	250 ms per channel
Dimensions (W x H x D)	40 mm x 125 mm x 118 mm
Weight	0.36 kg
Power Consumption	5 V DC at 200 mA
Operating Temperature	0°C to 55°C

Control Algorithms and Tuning Features

The Siemens 6ES5244-3AB31 implements PID, two-point, and three-point control algorithms for flexible regulation. Users can configure the PID parameters through the STEP 5 programming software. An integrated auto-tuning function calculates optimal P, I, and D values automatically. Additionally, the module supports cascade control for complex multi-loop applications.

Input Signal Conditioning and Filtering

This temperature control module provides software-selectable filtering to remove process noise from thermocouple signals. Each input channel includes a dedicated amplifier with 16-bit resolution for accurate temperature readings. The module also performs linearization and cold-junction compensation for all thermocouple types. These features ensure stable and repeatable temperature measurements in industrial environments.

Diagnostic Features and Status Indication

Front-panel LEDs indicate power, input status, output status, and fault conditions for each channel. The module detects open-circuit thermocouples and reports the condition to the CPU. An integrated watchdog timer monitors the communication with the central controller. Moreover, the module stores the last 50 temperature values in a history buffer for analysis.

Installation and Wiring Guidelines

You can install this temperature control module in any standard S5-115U or S5-135U rack slot. Use shielded thermocouple extension cables for all field connections to maintain signal integrity. Connect the cable shield to the module’s grounding terminal at the module end only. Always verify the thermocouple type matches the module configuration before operation. The module operates reliably from 0°C to 55°C with proper cabinet ventilation.
