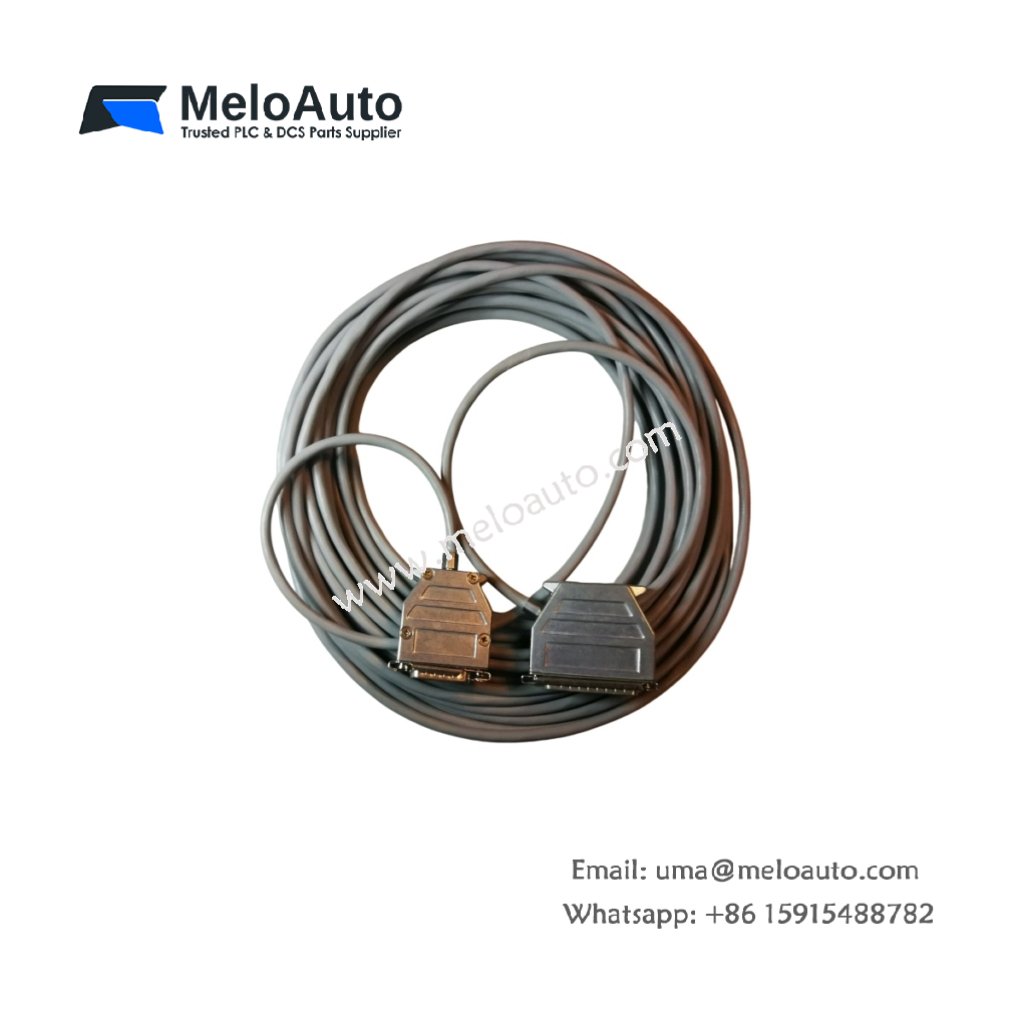

The 6ES5731-1CB00 provides a durable plug-in connection cable for Siemens SIMATIC S5 automation systems. This cable links the central controller to remote I/O stations and peripheral devices. It features a 25-pin D-sub connector on the CPU end. A 15-pin D-sub connector interfaces with the remote I/O module. Consequently, it ensures reliable data transmission over moderate distances.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Plug-in Cable |
| Part Number | 6ES5731-1CB00 |
| Cable Length | 3 meters (approximately 9.8 feet) |
| Connector Type (CPU End) | 25-pin D-sub (male) |
| Connector Type (I/O End) | 15-pin D-sub (male) |
| Protocol Support | S5 remote I/O bus |
| Shielding | Fully shielded (foil + braid) |
| Outer Diameter | 8.0 mm |
| Conductor Gauge | 24 AWG (signal) |
| Insulation Material | PVC |
| Jacket Material | PVC (oil-resistant, flexible) |
| Storage Temperature | -40°C to +80°C |
| Operating Temperature | -20°C to +70°C |
| Weight | 0.35 kg |
Mechanical Design and Durability
The 6ES5731-1CB00 incorporates robust overmolded strain relief boots on both connector ends. This design effectively prevents conductor fatigue from repeated bending cycles during maintenance. Gold-plated contacts ensure reliable signal integrity and resist corrosion in industrial environments. Additionally, dual-layer shielding rejects electromagnetic interference from variable frequency drives and other sources.
Application and Integration
This plug-in cable connects S5 CPUs to remote I/O racks and distributed I/O stations. The 3-meter length provides sufficient reach between the controller and nearby devices. Users should avoid exceeding the total bus length of 100 meters when daisy-chaining.
