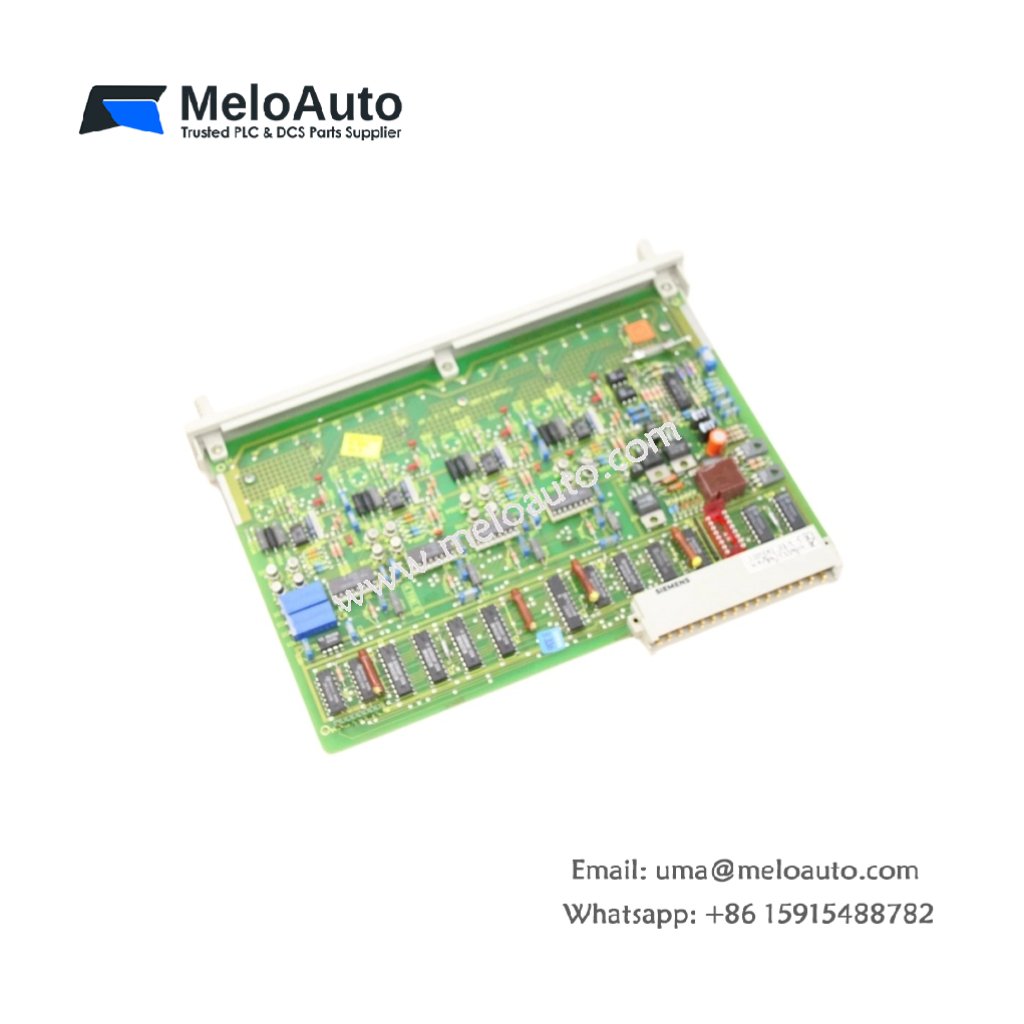

Siemens 6ES5475-5AA11 Analog Output Module S5 4-Channel

Technical Overview

The 6ES5475-5AA11 analog output module converts digital control signals into precise analog voltages or currents for field devices. This module features 4 isolated output channels for driving actuators such as valves, positioners, and variable-speed drives. It supports both voltage outputs (0 to 10V) and current outputs (0 to 20mA or 4 to 20mA). The integrated D/A converter ensures high resolution and low drift for accurate process control.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6ES5475-5AA11
Product Type	Analog Output Module
Series	SIMATIC S5
Number of Outputs	4 channels (isolated)
Output Ranges	0 to 10V, 0 to 20mA, 4 to 20mA
Resolution	12-bit
Load Impedance	Voltage output: ≥ 2 kΩ; Current output: ≤ 500 Ω
Accuracy	±0.5% of full scale
Conversion Time	Approx. 2.5 ms per channel
Compatibility	S5-115U, S5-135U, and S5-155U systems
Approx. Weight	0.45 kg

Flexible Output Ranges and Configuration

The 6ES5475-5AA11 supports multiple output ranges for diverse field device compatibility. Users can configure each channel independently for voltage or current output. Therefore, this module suits both voltage-controlled drives and current-loop positioners.

High Resolution and Accuracy

The 12-bit D/A converter delivers smooth and precise control signals for demanding applications. The module maintains stability across temperature variations. Furthermore, its accuracy ensures reliable process regulation.

System Integration and Compatibility

This analog output module plugs directly into the S5 central rack or expansion unit. It communicates with the CPU through the backplane bus. Engineers can commission the module using Siemens STEP 5 software.
