Bently Nevada 330105-02-12-15-02-05 | 3300 XL Reverse Mount

Product Overview

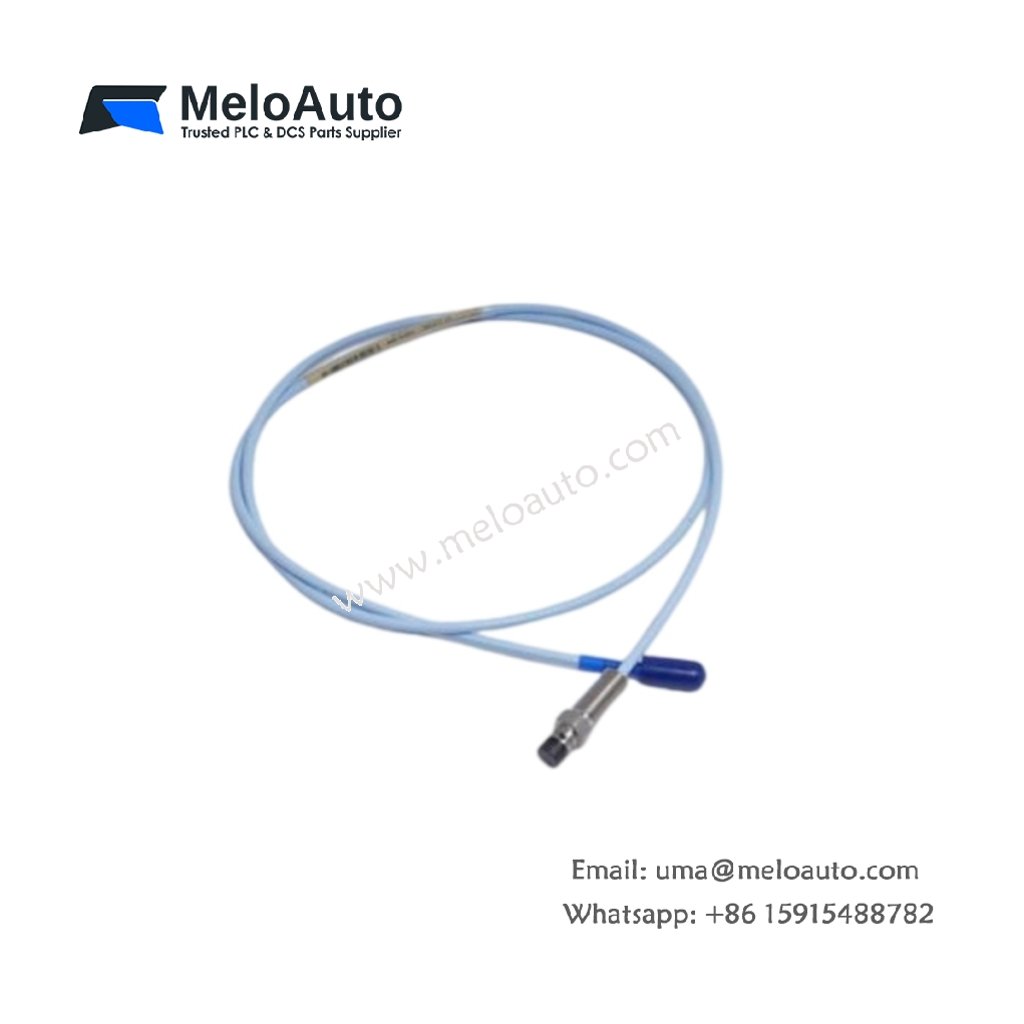

The 330105-02-12-15-02-05 belongs to the Bently Nevada 3300 XL family of 8 mm reverse mount probes. This sensor measures shaft displacement and vibration without contacting the target. Consequently, engineers favor it for tight installations where standard mounting space remains limited.

Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
Total Length	1.5 meters (probe plus cable)
Weight	Approximately 280 g
Connector Type	ClickLoc coaxial connector
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (about 1.27 mm)
Frequency Response	0 to 10 kHz
Tip Material	Polyphenylene sulfide (PPS)
Case Material	Stainless steel
Mounting Style	Reverse mount
Mounting Thread	3/8-24 UNF
Minimum Target Size	45 mm

Construction and Materials

The probe tip uses polyphenylene sulfide, which resists abrasion and chemical exposure. Meanwhile, the stainless steel body provides rugged mechanical protection during continuous duty. The reverse mount design places the cable exit away from the target, so routing stays clean.

Interface and System Compatibility

This probe pairs with 3300 XL extension cables and Proximitor sensors. Additionally, its 75 Ω impedance maintains signal fidelity across the entire measurement chain. Therefore, readings remain stable even when cable lengths differ between installations.

Installation Guidelines

A target measuring at least 45 mm wide ensures complete linear range coverage. Furthermore, technicians must observe side clearance and cable bend radius limits. Correct gap voltage adjustment directly influences measurement accuracy, so verify it after every mounting change.
