Bently Nevada 330105-02-12-50-02-00

Product Overview

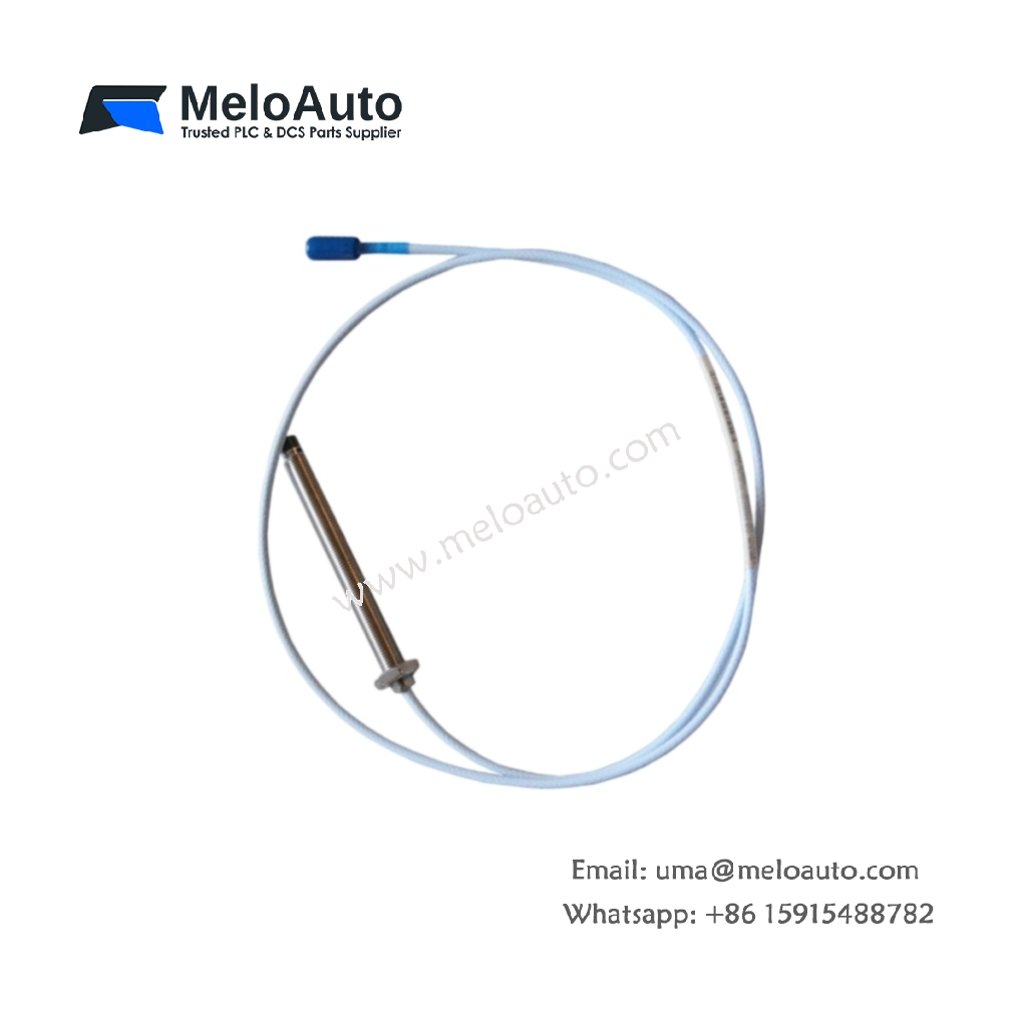

The 330105-02-12-50-02-00 extends the Bently Nevada 3300 XL line as a complete 8 mm proximity probe module. This assembly pairs a probe, extension cable, and Proximitor sensor into one tested package. Consequently, engineers gain fast installation and consistent displacement data on turbines and compressors.

Technical Specifications

Parameter	Value
Probe Tip Diameter	8 mm
System Length	5.0 meters (probe, cable, and Proximitor)
Weight	Approximately 850 g
Connector Type	ClickLoc coaxial connectors
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Linear Range	2 mm (80 mils)
Recommended Gap	-10 V DC (about 1.27 mm)
Frequency Response	0 to 10 kHz
Tip Material	Polyphenylene sulfide (PPS)
Case Material	Stainless steel
Mounting Thread	3/8-24 UNF
Minimum Target Size	45 mm
Output Signal	-10 V DC nominal at gap

Construction and Materials

The probe tip uses polyphenylene sulfide, which resists abrasion and chemical exposure. Meanwhile, the stainless steel housing delivers rugged protection during continuous duty. The Proximitor sensor module adds signal conditioning, so the system outputs a clean voltage directly.

Interface and System Compatibility

This module connects to standard 3300 XL monitors and vibration transmitters. Additionally, its 75 Ω impedance maintains signal fidelity across the entire measurement chain. Therefore, readings stay stable even when plant cabling varies in length.

Installation Guidelines

A target measuring at least 45 mm wide ensures complete linear range coverage. Furthermore, technicians must observe side clearance and cable bend radius limits. Correct gap voltage adjustment directly influences measurement accuracy, so verify it after every mounting change.
