Technical Overview

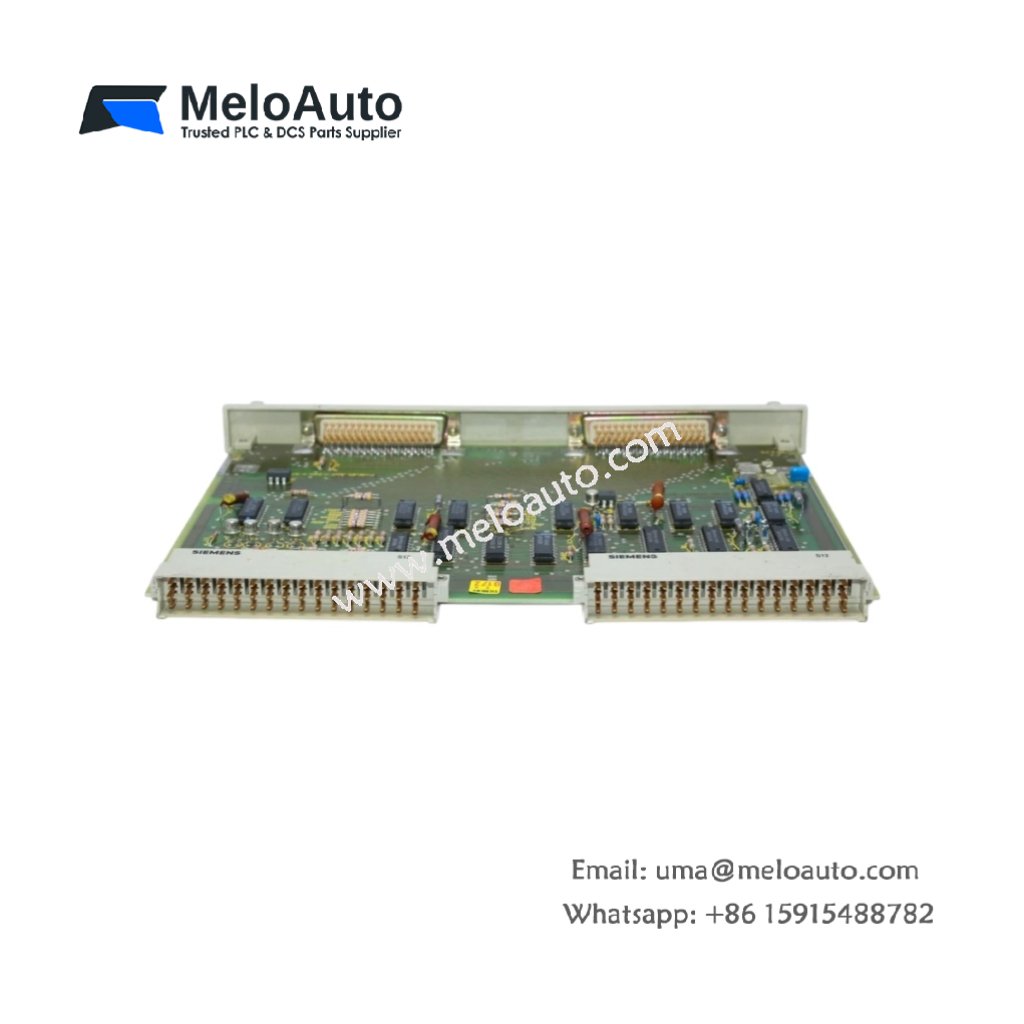

The Siemens 6ES5310-3AB11 is an interface module for the SIMATIC S5 programmable logic controller family. This module connects the S5 CPU to remote I/O stations or peripheral devices via a serial communication link. It supports the SINEC L1 network protocol, enabling distributed automation configurations. Moreover, the 6ES5310-3AB11 provides electrical isolation between the CPU and field devices, enhancing system reliability. This interface module serves as a key component for expanding S5 systems across multiple locations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 6ES5310-3AB11 |
| Product Type | Interface Module (IM 310) |
| Compatible System | SIMATIC S5 |
| Network Protocol | SINEC L1 |
| Communication Interface | RS-485 |
| Data Transfer Rate | 9.6 kbps to 187.5 kbps |
| Cable Length | Up to 1,000 meters |
| Number of Stations | Up to 32 stations per segment |
| Isolation | 500 V AC between field and system |
| Indicators | LED for module status and communication |
| Power Supply | 5 V DC from S5 backplane |
| Current Consumption (5V) | 150 mA typical |
| Dimensions | 1 slot width (25 mm) × 233 mm × 150 mm |
| Weight | Approximately 0.8 kg |
| Operating Temperature | 0°C to 60°C |
Performance and Application Benefits
The 6ES5310-3AB11 provides a reliable interface for connecting distributed I/O stations in S5 automation systems. Moreover, the module supports up to 32 stations per segment, enabling flexible system expansion across large facilities. In addition, the RS-485 communication ensures robust data exchange over distances up to 1,000 meters, even in electrically noisy environments. Consequently, the SINEC L1 protocol simplifies configuration and reduces engineering effort. Furthermore, the electrical isolation protects the central controller from voltage surges and ground loops. Therefore, this interface module is ideal for applications requiring distributed control architecture, including conveyor systems, material handling, and plant-wide automation networks.
