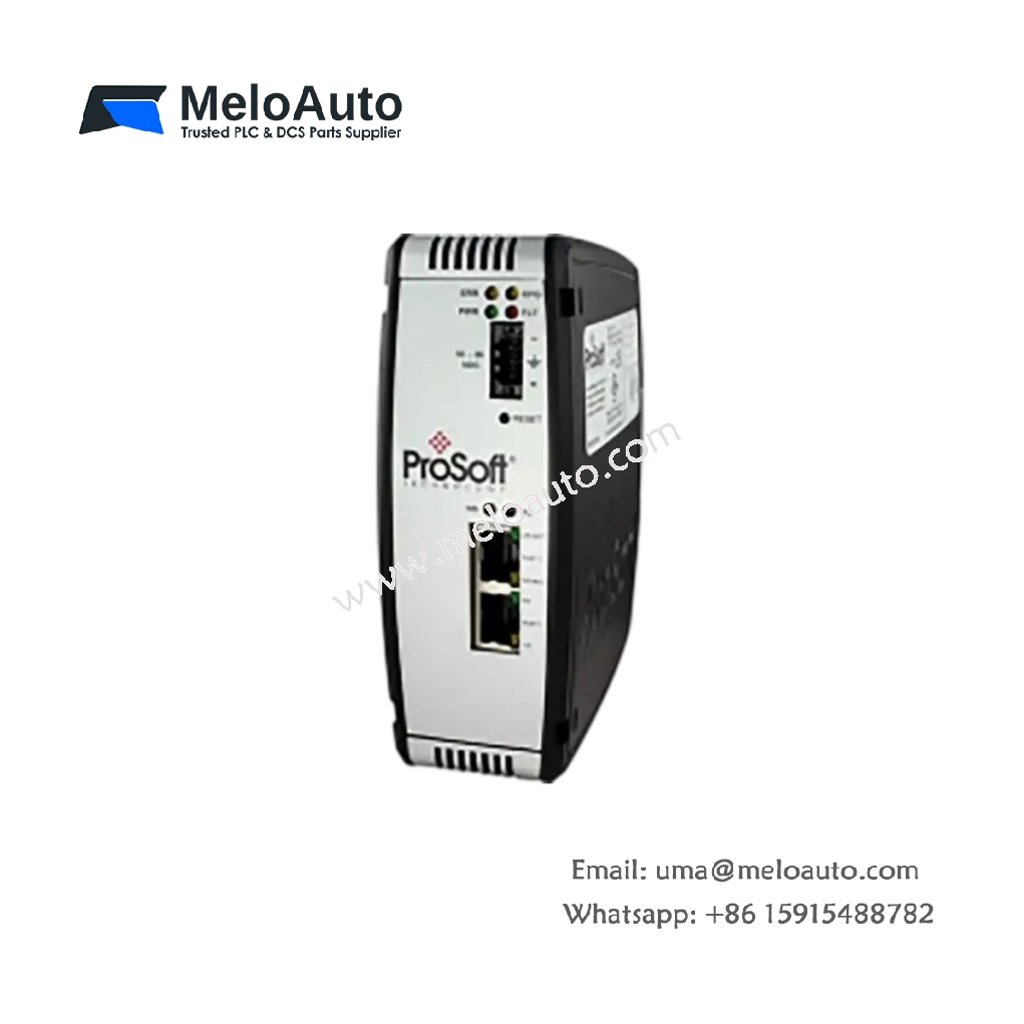

ProSoft PLX31-MBTCP-MBS4 Gateway

Multi-Device Modbus Integration with the PLX31-MBTCP-MBS4

The PLX31-MBTCP-MBS4 connects Modbus TCP/IP networks to multiple Modbus serial devices. This gateway manages four independent master and slave connections in one chassis. System integrators therefore apply it when linking legacy serial equipment to modern Ethernet controllers. Its DIN-rail housing mounts inside standard enclosures without extra brackets.

Detailed Technical Parameters

Connection capacity defines the PLX31-MBTCP-MBS4, because the gateway handles four serial ports with independent protocol roles. The processor board maps register data between Modbus TCP/IP and Modbus RTU frames. Meanwhile, the Ethernet port connects directly to the plant network. Review the essential specifications in the table below.

Parameter	Specification
Function	Modbus TCP/IP to Modbus serial gateway
Serial ports	Four configurable Modbus ports
Ethernet port	One 10/100 Mbps port
Dimensions (W × H × D)	90 × 140 × 115 mm
Weight	Approximately 0.8 kg
Interface	Ethernet port plus four serial ports
Component count	Processor board plus serial interface stage
Energy storage	Local decoupling capacitor array
Operating temperature	-25 °C to 70 °C

Integration into Control Systems

The PLX31-MBTCP-MBS4 snaps onto a DIN rail and connects through standard cables. Commissioning engineers configure port roles and register mapping through the setup software. Consequently, serial devices return to service quickly after gateway replacement. The device handles simultaneous transactions across all four ports. Furthermore, the metal housing resists interference from drives and power equipment nearby.

Why Plants Choose This Gateway

Many facilities still operate serial Modbus devices for their proven field reliability. Hence, the PLX31-MBTCP-MBS4 serves as a dependable spare for keeping data links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the four-port design reduces gateway count inside cabinets. This gateway keeps legacy devices connected and production schedules on track.
