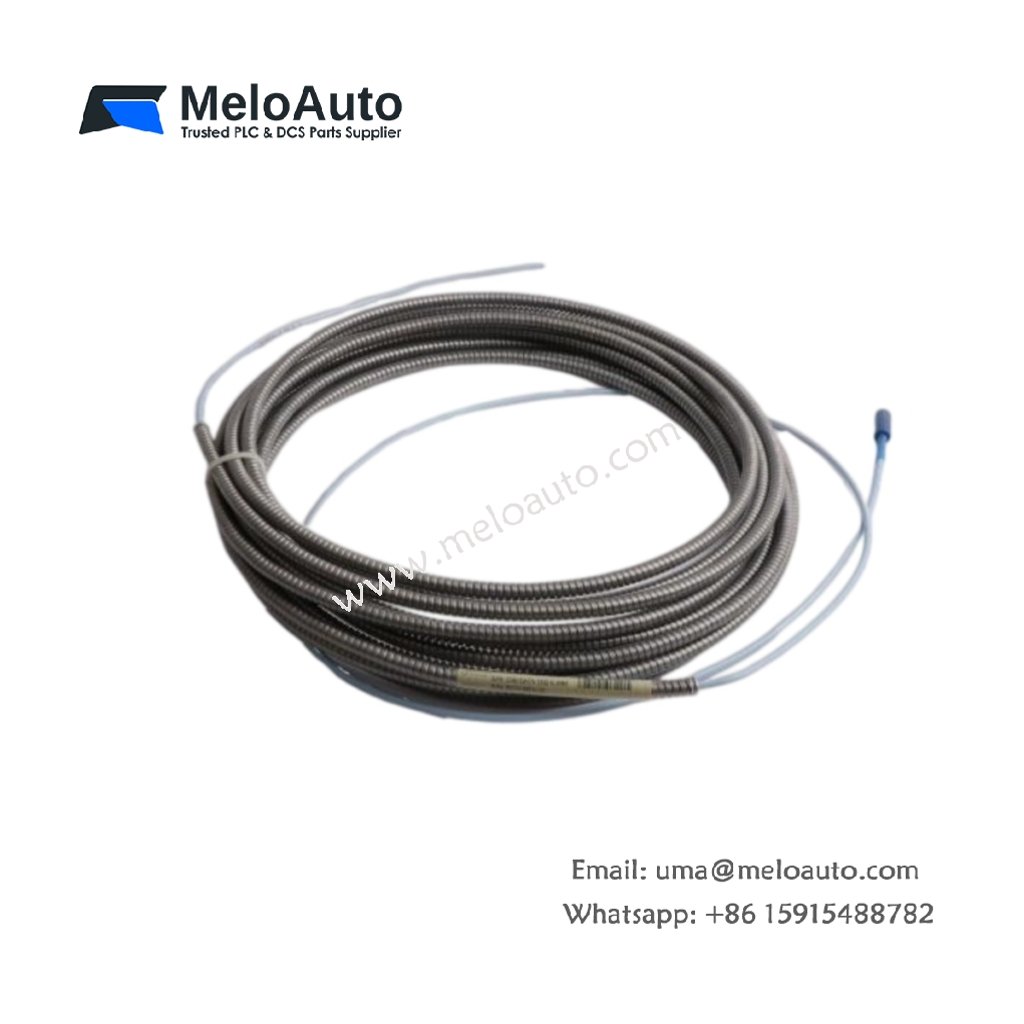

Bently Nevada 330130-085-01-00 | 3300 XL Extension Cable

Product Overview

The 330130-085-01-00 serves as an extension cable within the Bently Nevada 3300 XL system. This 8.5-meter cable links proximity probes to Proximitor sensors across long machine runs. Consequently, technicians gain flexible mounting options without sacrificing signal quality.

Technical Specifications

Parameter	Value
Cable Length	8.5 meters
Weight	Approximately 950 g
Connector Type	ClickLoc coaxial connectors
Cable Type	75 Ω triaxial, FEP insulated
Operating Temperature	-35°C to +177°C
Storage Temperature	-51°C to +177°C
Impedance	75 Ω
Capacitance	Approximately 69.1 pF/m
Bend Radius	25.4 mm minimum
Outer Diameter	6.35 mm
Armor Option	Optional stainless steel armor
Connector Gender	Male to female

Construction and Materials

The cable jacket uses FEP insulation, which resists chemicals and high temperatures. Meanwhile, the triaxial shielding blocks electromagnetic interference from nearby equipment. The ClickLoc connectors lock firmly in place, so vibration cannot loosen the mating.

Interface and System Compatibility

This extension cable connects 3300 XL probes with matching Proximitor sensors. Additionally, its 75 Ω impedance keeps the measurement chain electrically consistent. Therefore, total system length remains predictable when users add this cable.

Installation Guidelines

Technicians must respect the 25.4 mm minimum bend radius during routing. Furthermore, they should secure the cable to prevent strain on the connectors. Proper routing protects signal integrity, so avoid sharp bends and hot surfaces.
