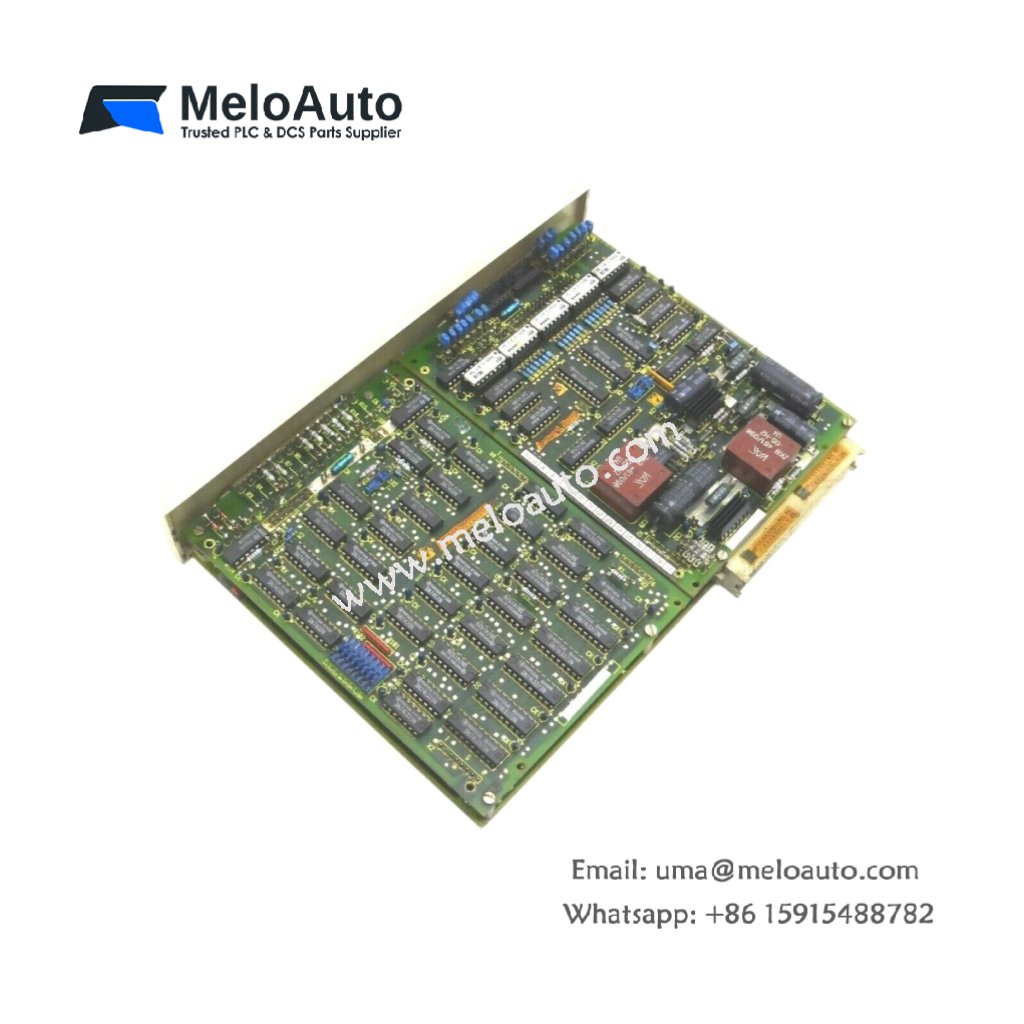

Siemens 6ES5241-1AD11 Digital Position Encoder Module

Why This Encoder Module Suits Your Motion Control System

This digital position encoder module captures precise location data from moving axes. You get an accurate Siemens 6ES5241-1AD11 for SIMATIC S5 programmable controllers. It reads incremental encoder signals with high counting resolution. Therefore, your system can track shaft rotations and linear movements without external counters.

Technical Specifications and Physical Details

The Siemens 6ES5241-1AD11 features one encoder input channel on a single-width card. It accepts 5V differential signals from standard incremental encoders. This module fits into a dedicated S5 rack slot. Its dimensions measure approximately 250 mm in width and 25 mm in height. The unit weighs around 0.40 kg for straightforward installation. This encoder module stores no position data after power loss. Instead, the CPU must retain the last known value in retentive memory. Consequently, you need a homing routine after each system startup.

Below is the detailed breakdown of the hardware specifications.

Installation and Wiring Notes

This module connects directly to an incremental encoder via shielded twisted-pair cables. You must terminate the differential lines with a 120-ohm resistor. The Siemens 6ES5241-1AD11 requires a separate 24V DC supply for its input circuits. Therefore, do not rely solely on backplane power. Always route encoder cables away from motor drives. Electrical noise will corrupt the position count and cause positioning errors.
