Core Functionality and Application

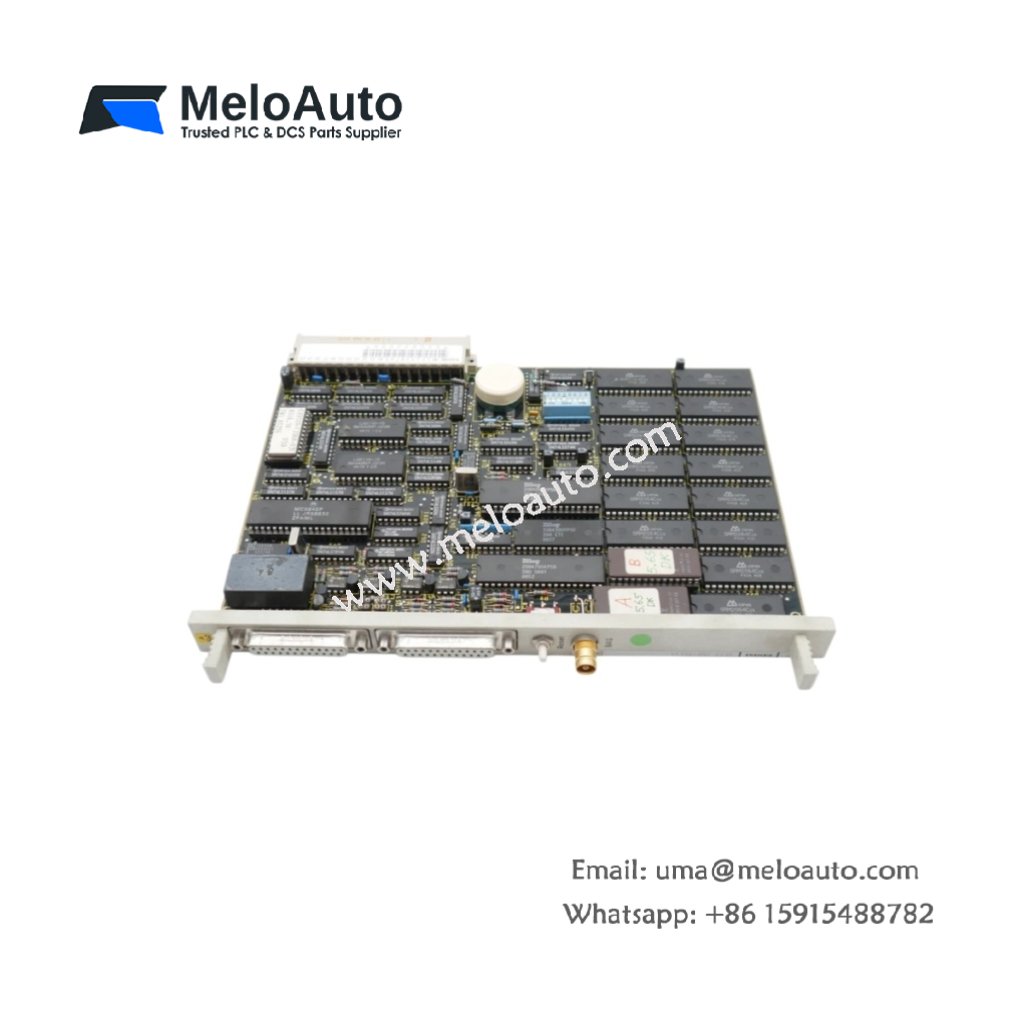

The Siemens 6ES5256-3AA11 control module serves as a specialized function module for SIMATIC S5 programmable logic controllers. This device handles analog signal processing and closed-loop control tasks within the S5 system architecture. It performs PID control, setpoint generation, and signal conditioning for various industrial processes. Moreover, the module operates independently of the CPU, which reduces the main processor’s computational burden.
Technical Specifications
The following table details the core technical parameters for the Siemens 6ES5256-3AA11:
| Parameter | Specification |
|---|---|
| Model Number | 6ES5256-3AA11 |
| Product Type | Control Module / Function Module |
| Compatible Systems | SIMATIC S5-115U, S5-135U, S5-155U |
| Number of Control Loops | 2 independent PID controllers |
| Input Types | Analog (0-10V, 0-20mA, 4-20mA) |
| Output Types | Analog (0-10V, 0-20mA) |
| A/D Conversion | 12-bit resolution |
| D/A Conversion | 12-bit resolution |
| Dimensions (W × H × D) | 8.0 × 20.0 × 15.0 cm (3.15 × 7.87 × 5.91 in) |
| Weight | 0.65 kg (1.43 lbs) |
| Power Draw (5V) | 400 mA typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
Control and Processing Capabilities
The Siemens 6ES5256-3AA11 provides two independent PID control loops for precise process regulation. Users can configure parameters such as proportional gain, integral time, and derivative time for each loop individually. The module processes analog inputs with 12-bit resolution, which ensures accurate measurement and control. It also includes integrated setpoint generators for ramp and soak profiles . Furthermore, the module supports manual and automatic mode switching for flexible operation.
Design and Integration Features
The Siemens 6ES5256-3AA11 occupies a single slot in the S5 rack and integrates with standard S5 I/O modules. LED indicators on the front panel display the operating status and fault conditions clearly. The module’s self-diagnostics detect hardware errors and signal faults for reliable operation. Users can configure this control module using standard S5 programming tools and function blocks. This control module reduces CPU load by handling control loops independently.
