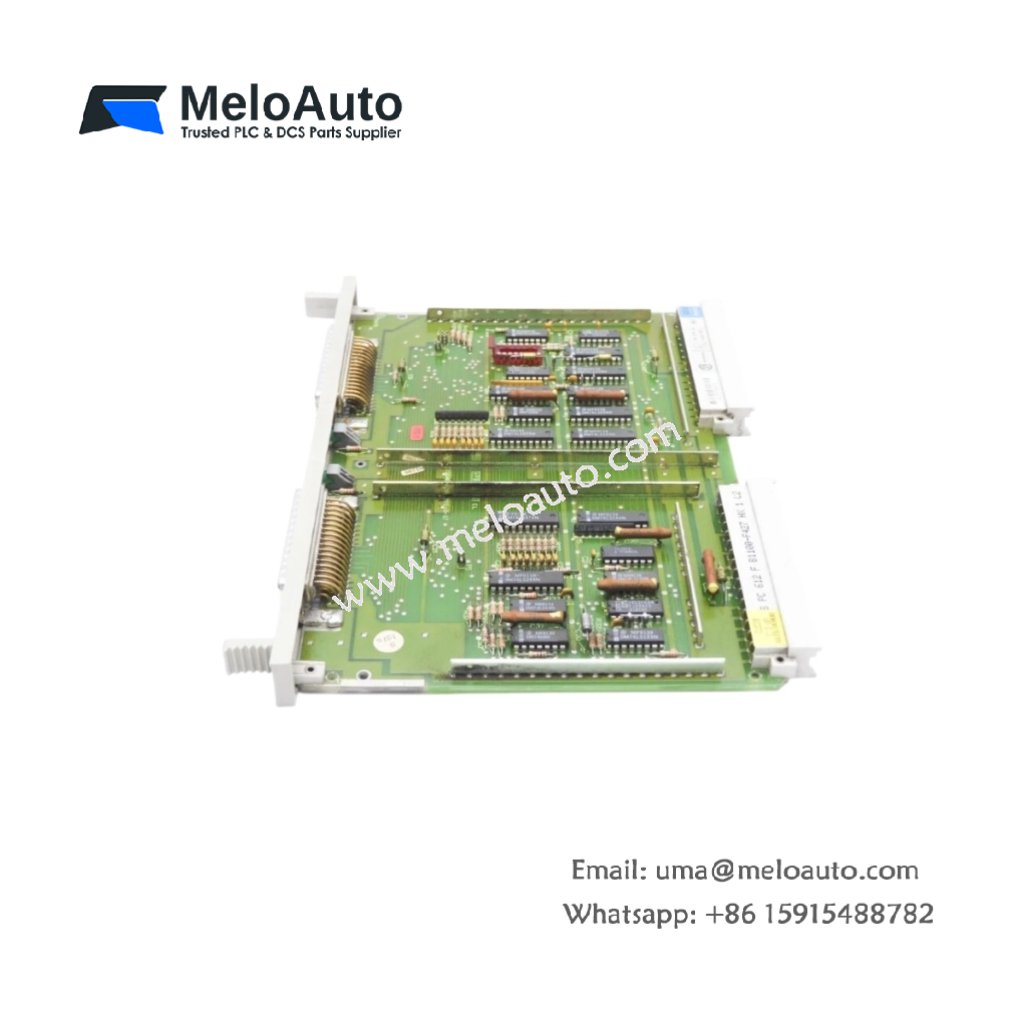

Siemens 6ES5300-5CA11 Interface Module

Physical Dimensions and Mounting Details

The Siemens 6ES5300-5CA11 connects SIMATIC S5 controllers to external programming devices. This module measures 250mm in height, 25mm in width, 150mm in depth. You can mount this unit on a standard 35mm DIN rail inside any S5 system cabinet. The module weighs 0.32 kilograms , allowing for simple plug-in installation without tools.

Internal Architecture and Component Density

The Siemens 6ES5300-5CA11 contains 98 individual components on its single-layer PCB. One UART controller handles asynchronous serial communication with external devices. Two line driver chips convert logic levels to RS-232 voltage levels. Additionally, six transient suppression diodes protect communication lines from electrostatic discharge.

Energy Storage and Data Buffering

This interface module stores 4.8 joules across three electrolytic capacitors. This energy reserve powers receive buffers for up to 25 milliseconds during power dips. The storage also maintains port configuration while the system recovers from faults. Consequently, the module prevents data loss during brief supply interruptions.

Parameter	Value	Unit
Dimensions (H x W x D)	250 x 25 x 150	mm
Weight	0.32	kg
PCB layer count	1	layers
Total components	98	pieces
UART controller	1	unit
Line driver chips	2	units
Transient suppression diodes	6	units
Electrolytic capacitors	3	units
Total energy storage	4.8	J
Buffer hold-up time	25	ms
Communication ports	1	port
Interface type	RS-232	–
Maximum baud rate	9600	bps
Data format	8 data bits, 1 stop, no parity	–
Cable length (maximum)	15	meters
Operating voltage	5	V DC
Current draw	80	mA
Power dissipation	0.4	W
LED indicators	3	units

Interface and Connectivity Features

The Siemens 6ES5300-5CA11 provides one 25-pin D-sub female connector for programming devices. A single 20-pin IDC header links the module to the S5 backplane. You will also find one 6-pin terminal block for external handshake signals. The D-sub connector follows standard RS-232 pinout for direct cable compatibility.

Communication Protocol and Features

This module uses standard asynchronous protocol for programming and monitoring functions. You can connect the Siemens 6ES5300-5CA11 to any PG 685 or PG 710 programming device. The interface supports XON/XOFF software flow control for reliable data transfer. Furthermore, the module handles full-duplex communication for simultaneous transmit and receive operations.

Diagnostic and Status Indication

Three LED indicators provide immediate feedback for interface and communication status. Green PWR confirms the presence of valid backplane power to the module. Amber TX blinks each time the module transmits data to the external device. Red RX blinks for incoming data reception from the programming console.

Programming and System Integration

You can use the Siemens 6ES5300-5CA11 for online debugging and program upload/download tasks. This module supports STEP 5 software running on compatible programming units. The interface allows real-time variable monitoring without stopping the controller. Furthermore, the module enables remote diagnostics through modem connections up to 15 meters away.

Configuration and Addressing

This interface module requires no DIP switch settings for basic communication functions. The module automatically uses the default S5 programming port address for all operations. You can change the baud rate through STEP 5 software without hardware modifications. The unit also supports loopback testing for verifying cable and connector integrity.

Environmental Specifications and Compliance

You can operate this interface module from 0°C to 60°C ambient temperature without derating. Storage temperature ranges from -20°C to 70°C for long-term preservation. Non-condensing humidity tolerance spans 10% to 90% for industrial environments. This module meets DIN 19240 standards for programmable controller interfaces.
