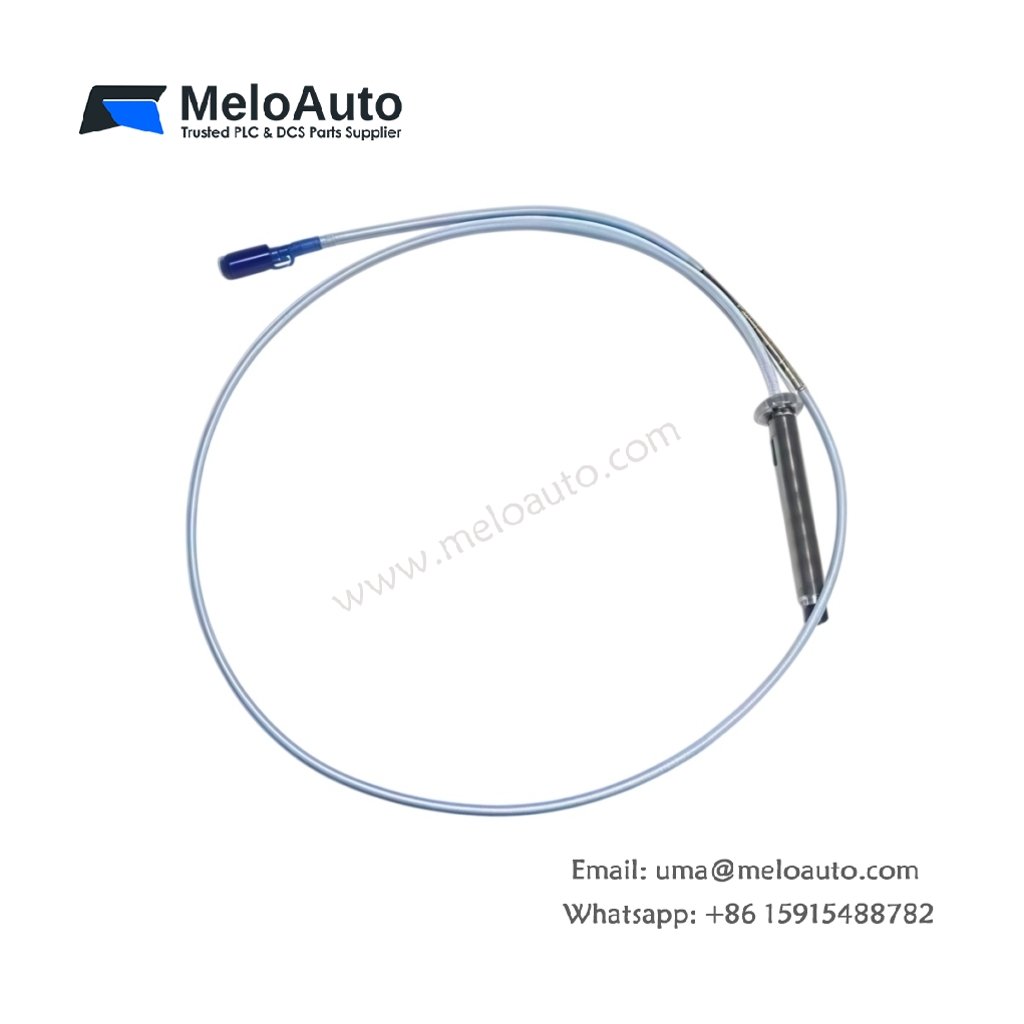

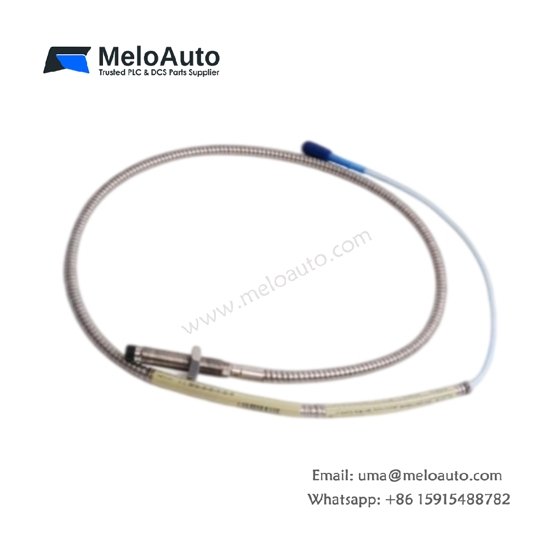

Bently Nevada 330103-00-08-10-02-00 3300 XL Proximity Probe

The 330103-00-08-10-02-00 belongs to the Bently Nevada 3300 XL 8 mm proximity probe family. Maintenance engineers depend on this sensor for accurate radial vibration and axial displacement readings. Consequently, it supports continuous machinery protection across steam turbines, compressors, and large motors.

Technical Specifications

Parameter	Specification
Probe Tip Diameter	8 mm
Thread Type	3/8-24 UNF
Case Length	80 mm
Unthreaded Length	0 mm
Cable Length	1.0 metre
Connector Type	Miniature coaxial (ClickLoc)
Weight	Approximately 115 g
Operating Temperature	-35 °C to +177 °C
Linear Range	2.0 mm (80 mils)
Recommended Gap	1.27 mm (50 mils)
Frequency Response	0 to 10 kHz
Output Sensitivity	7.87 mV/µm (200 mV/mil)

Eddy Current Sensing Principle

This probe applies eddy current technology to measure shaft displacement. The tip generates a high-frequency magnetic field toward the target surface. Shaft movement then alters field impedance, and the transducer outputs a proportional voltage signal. Meanwhile, the coaxial cable maintains signal fidelity over long routing distances.

Interface and Mounting Details

The 330103-00-08-10-02-00 pairs with 3300 XL extension cables and Proximitor sensors. A miniature coaxial connector guarantees secure, low-noise signal transfer. Furthermore, the 3/8-24 UNF thread enables direct mounting into bearing housings or brackets.

Material and Environmental Factors

Target material choice strongly influences measurement accuracy. A-ISI 4140 steel serves as the standard calibration reference. Therefore, alternative alloys may demand a correction factor. The stainless steel housing resists oil, moisture, and electromagnetic interference. Additionally, the sealed design performs reliably in demanding industrial environments.
