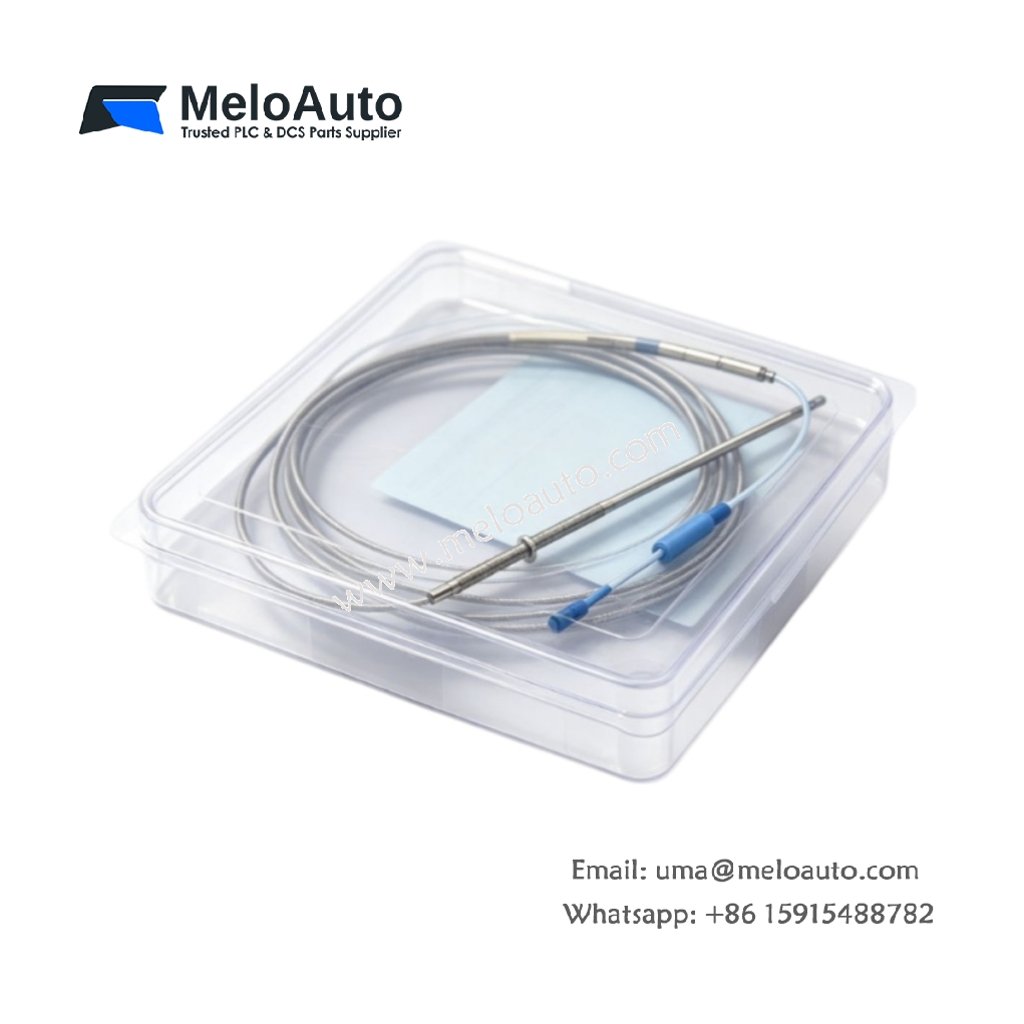

Bently Nevada 330103-00-09-05-02-00 3300 XL Proximity Probe

The 330103-00-09-05-02-00 belongs to the Bently Nevada 3300 XL 8 mm proximity probe series. Industrial maintenance teams rely on this sensor for accurate radial vibration and axial position measurement. Consequently, it delivers continuous protection for steam turbines, centrifugal compressors, and large motors.

Technical Specifications

Parameter	Specification
Probe Tip Diameter	8 mm
Thread Type	3/8-24 UNF
Case Length	90 mm
Unthreaded Length	0 mm
Cable Length	0.5 metre
Connector Type	Miniature coaxial (ClickLoc)
Weight	Approximately 115 g
Operating Temperature	-35 °C to +177 °C
Linear Range	2.0 mm (80 mils)
Recommended Gap	1.27 mm (50 mils)
Frequency Response	0 to 10 kHz
Output Sensitivity	7.87 mV/µm (200 mV/mil)

Eddy Current Measurement Principle

This probe uses eddy current technology to detect shaft displacement. The tip emits a high-frequency magnetic field toward the target surface. Shaft movement then changes field impedance, and the transducer produces a proportional voltage signal. Meanwhile, the coaxial cable preserves signal integrity across extended routing paths.

Interface and Mounting Details

The 330103-00-09-05-02-00 connects with 3300 XL extension cables and Proximitor sensors. A miniature coaxial connector ensures secure, low-noise signal transmission. Furthermore, the 3/8-24 UNF thread supports direct mounting into bearing housings or brackets.

Material and Environmental Considerations

Target material selection directly affects measurement accuracy. A-ISI 4140 steel serves as the standard calibration reference. Therefore, alternative alloys may require a correction factor. The stainless steel housing resists oil, moisture, and electromagnetic interference. Additionally, the sealed construction performs reliably in harsh industrial environments.
