Core Functionality and Application

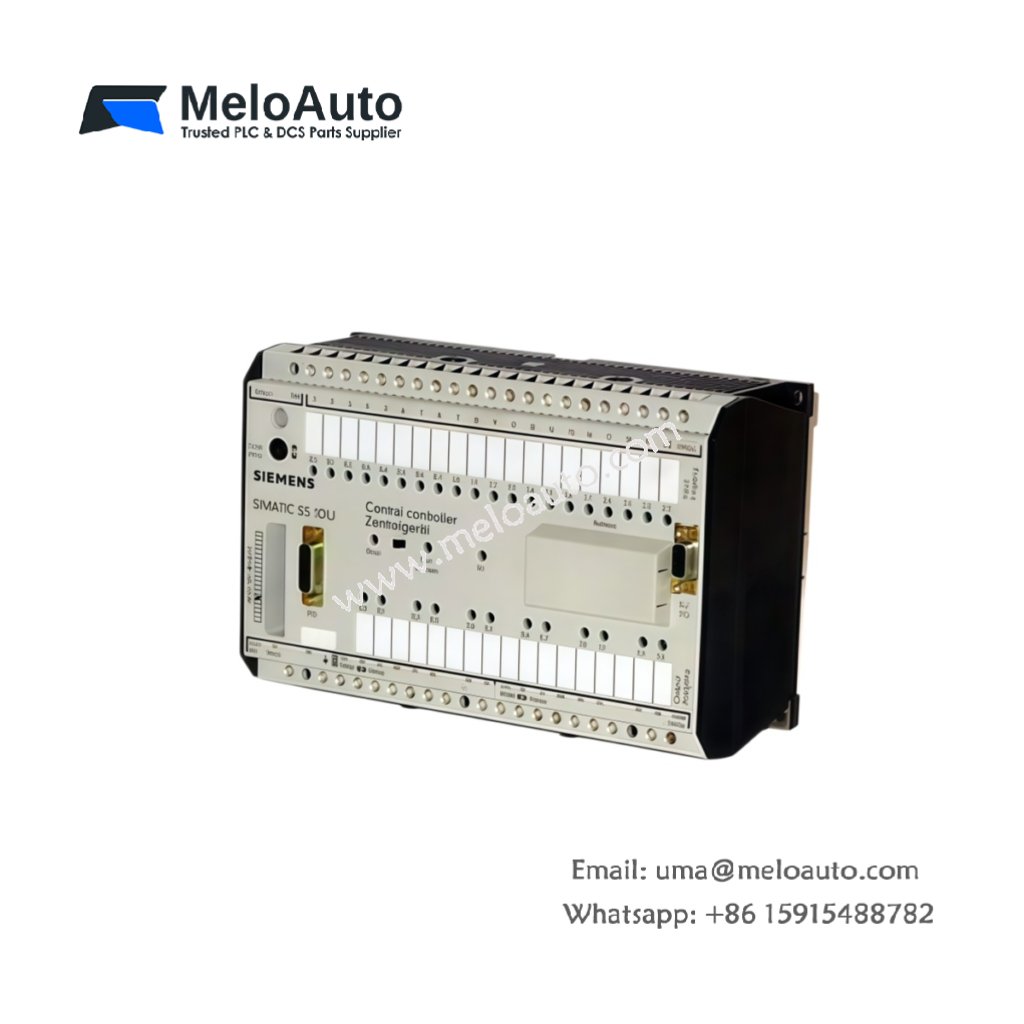

The Siemens 6ES5101-8RB11 compact controller serves as a central processing unit for SIMATIC S5-101U automation systems . This all-in-one device integrates CPU, I/O, and communication functions into a single compact housing . It manages logic operations, field signal acquisition, and actuator control for small to medium applications . Furthermore, the controller supports both digital and analog I/O for versatile system configurations.
Technical Specifications
The following table details the core technical parameters for the Siemens 6ES5101-8RB11:
| Parameter | Specification |
|---|---|
| Model Number | 6ES5101-8RB11 |
| Product Type | Compact Controller (S5-101U) |
| Compatible System | SIMATIC S5-101U |
| Digital Inputs | 16 channels (24 VDC) |
| Digital Outputs | 16 channels (24 VDC, 0.5 A) |
| Analog Inputs | 4 channels (0-10V or 0-20mA) |
| Analog Outputs | 2 channels (0-10V or 0-20mA) |
| User Memory | Integrated RAM (battery-backed) |
| Programming Interface | RS-232 (for PG connection) |
| Power Supply | 24 VDC |
| Mounting | DIN-rail |
| Weight | Approx. 1.2 kg |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
Design and Integration Features
The Siemens 6ES5101-8RB11 features a compact all-in-one design that eliminates the need for a separate rack. This integrated approach saves valuable cabinet space and simplifies installation . The controller includes a built-in power supply that accepts 24 VDC input for straightforward wiring . LED indicators on the front panel display the operating status of all I/O channels . Users can connect programming devices directly through the RS-232 interface for easy commissioning and maintenance.
System Compatibility and Use Cases
The Siemens 6ES5101-8RB11 works with standard S5 programming software and peripherals . It serves as the core controller for the S5-101U, which is a compact subset of the S5 family. This compact controller suits small automation tasks such as standalone machines and local control panels . The integrated I/O reduces overall system cost and complexity for smaller applications . Users should note that this product has been discontinued and is available only as a legacy spare part.
